| Brand Name: | UCER |
| Model Number: | FV series |
| MOQ: | 50 Meters |
| Price: | $10.00 - $70.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

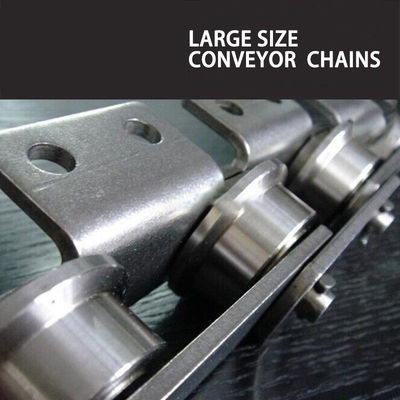

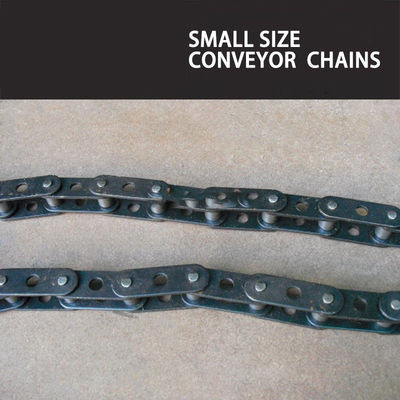

FV40 Manufacturing Large Size FV Series Conveyor Chain With Attachment Heavy Duty Conveyor Chains
Quick Details
Applicable Industries:Garment Shops, Restaurant, Food Shop, Energy & Mining
Standard or Nonstandard:Standard
Type:Roller Chain
Material:ALLOY
Tensile Strength:High Tensile Strength
Place of Origin:Zhejiang, China
Brand Name:UCER
Product name:FV type
heat treatment:with
Application:industry ,cement
Supply Ability:10000 Meter/Meters per Month
Specification
| Chain NO. | Pitch | Roller dimension | Bush diameter | ||||||||||
| P | d1 max | d4 max | d5 max | d6 max | G | d3max | |||||||
| mm | |||||||||||||
| FV40 | 50 | 63 | 80 | 100 | 125 | - | - | 32 | 20 | 40 | 50 | 4 | 15 |
| FV63 | 50 | 63 | 80 | 100 | 125 | 160 | - | 40 | 26 | 52 | 63 | 5 | 18 |
| FV90 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 48 | 30 | 63 | 78 | 6.5 | 20 |
| FV112 | 80 | 100 | 125 | 160 | 200 | 250 | - | 55 | 32 | 72 | 90 | 7.5 | 22 |
| FV140 | 63 | 100 | 125 | 160 | 200 | 250 | - | 60 | 36 | 80 | 100 | 9 | 26 |
| FV180 | 100 | 125 | 160 | 200 | 250 | 315 | - | 70 | 42 | 100 | 125 | 13 | 30 |
| FV250 | 125 | 160 | 200 | 250 | 315 | 400 | - | 80 | 50 | 125 | 155 | 15 | 36 |
| FV315 | 160 | 200 | 200 | 315 | 400 | - | - | 90 | 60 | 140 | 175 | 18 | 42 |
| Chain NO. | Width between inner plates | Pin diameter | Pin Length | Plate depth | Plate thickness | Ultimte tensile strength | ||
| b1 min | d2 max | L min | Lc max | h2 max | T max | Q min | ※Q min | |
| mm | kN/bf | kN/bf | ||||||
| FV40 | 18 | 10 | 36 | 39 | 25 | 3 | 40/9091 | 47/10681 |
| FV63 | 22 | 12 | 45 | 48.5 | 30 | 4 | 63/14317 | 75/17045 |
| FV90 | 25 | 14 | 53 | 56.5 | 35 | 5 | 90/20453 | 115/26136 |
| FV112 | 30 | 16 | 62 | 66 | 40 | 6 | 112/25452 | 170/38636 |
| FV140 | 35 | 18 | 67 | 71.5 | 45 | 6 | 140/31815 | 180/40908 |
| FV180 | 45 | 20 | 86 | 92 | 50 | 8 | 180/40908 | 250/56817 |
| FV250 | 55 | 26 | 91 | 103.5 | 60 | 8 | 250/56817 | 300/68181 |
| FV315 | 65 | 30 | 113 | 126.5 | 70 | 10 | 315/71591 | 480/109089 |
| Chain NO. | Pitch P | Roller diameter d1max | Width between inner plates b1min | Pin diameter d2max | Pin length Lmax | Pin length Lc | Ultimte tensile strength Qmin | Average tensile strength Q0 | Weight perstep q |
| mm | kN/bf | kN | kg | ||||||
| FV40A2.02-P-40 | 40 | 32 | 18 | 10 | 36 | 40 | 40/8892 | 44 | 4.98 |
| FV90A2F1-P-85 | 85 | 50 | 25 | 14 | 52 | 56.5 | 90/20250 | 100 | 10.15 |
| FV90A2F1-P-100 | 100 | 50 | 25 | 14 | 52 | 56.5 | 90/20250 | 100 | 8.74 |
| FV112F1A1-P-100 | 100 | 55 | 30 | 16 | 71 | 76.5 | 180/40492 | 200 | 14.3 |
| FV112F1A1-P-80 | 80 | 55 | 30 | 16 | 71 | 76.5 | 180/40492 | 200 | 16.6 |
| Chain NO. | P | L1 | G | F | W | h4 | h2 | d4 | T |
| mm | |||||||||
| FV40A2.02-P-40 | 40 | 17 | 30 | 60 | 90 | 20 | 25 | 6.4 | 3 |
| FV90A2F1-P-85 | 85 | 40 | 60 | 80 | 109.2 | 40 | 35 | 9.5 | 5 |
| FV90A2F1-P-100 | 100 | 40 | 60 | 80 | 109.2 | 40 | 35 | 9.5 | 5 |
| FV112F1A1-P-100 | 100 | △ | 50 | 120 | 164 | 50 | 40 | 15 | 8 |
| FV112F1A1-P-80 | 80 | △ | 50 | 120 | 164 | 50 | 40 | 15 | 8 |
△ Attanchments with hole
| Chain NO. | Pitch | Roller diameter | Pin diameter | Pin length | Plate depth | Plate thickness | Ultimte tensile strength | Weight permeter | |||
| P | d1 max | d3 max | d4 max | d2 max | L min | Lc min | h2 max | t/T max | Qmin | q | |
| mm | kN/bf | kg/m | |||||||||
| FV40F3-P-63 | 63 | 32 | - | - | 10 | 38.1 | 41.5 | 45 | 4 | 80/17985 | 2.13 |
| FV90F9-B-100 | 100 | - | 20 | - | 14 | 60.2 | 64.6 | 35 | 6.0/8.0 | 90/20453 | 6 |
| FV90F10-B-100 | 100 | - | 20 | - | 14 | 60.2 | 64.6 | 40 | 6.0/8.0 | 90/20453 | 6.83 |
| FV140-PF1-125 | 125 | 65 | - | - | 18 | 67 | 71.5 | 45 | 6.0 | 140/31473 | 12.76 |
Packing Delivery Shipping
Packaging Details:Packing: a conveyor chain + a poly bag + individual box + wooden case
Port:shanghai ,ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
