Heavy Duty Conveyor Chain
Created with Pixso. Short Pitch Stainless Steel Conveyor Roller Chain With Extended Pin

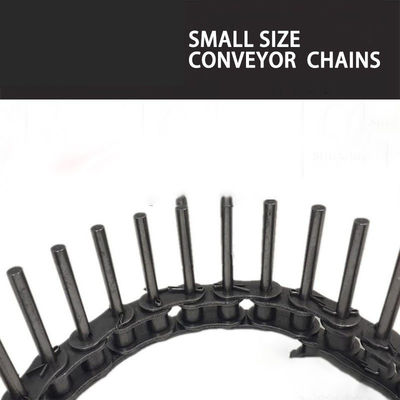

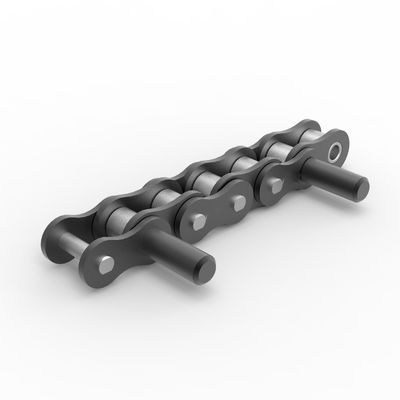

Short Pitch Stainless Steel Conveyor Roller Chain With Extended Pin

Brand Name: UCER
Model Number: B series
MOQ: 50 Meters
Price: $2.00 - $50.00/ Meter
Delivery Time: 45 work days
Payment Terms: L/C, T/T, D/P, CAD
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Product Name:
Short Pitch Stainless Steel Conveyor Roller Chain With Extended Pin
Structure:
Roller Chain
Roller Chain Name:
Alloy Steel Short Pitch Conveyor Chain With Top Roller
Material:
Alloy Steel
Function:
Conveyor Chain
Color:
Black & Gray
Standard Or Nonstandard:
Standard
Conveyor Chain Name:
Double Pitch Conveyor Chains (B Series)
Plate Material:
45#
Pin Material:
40Cr
Packaging Details:
a conveyor chain with extended pin + a poly bag + individual box + a wooden case
Supply Ability:
10000 Meters per Month
Highlight:

ISO stainless steel conveyor chain

,

Short Pitch stainless steel conveyor chain

,

DIN Roller Chain With Extended Pin

Product Description

Short Pitch Stainless Steel Conveyor Roller Chain With Extended Pin Heavy Duty Conveyor Chains





Quick Details:



Place of Origin:Zhejiang, China

Brand Name:UCER

Model Number:D1 D2

Structure:Roller Chain

Function:Conveyor Chain

Material:ALLOY

Standard or Nonstandard:Standard

conveyor chain name:double pitch conveyor chains (B series)

conveyor chain type:double pitch chain

OEM service:accept

heat treatment:all the chain parts undergo heat treatment

Color:black & gray

plate material:45#

pin material:40Cr

production maker:China manufacturer

material:alloy steel

size&capacity:pls reference to the form

Supply Ability:10000 Meter/Meters per Month





Specification



Short Pitch Stainless Steel Conveyor Roller Chain With Extended Pin 0

Short Pitch Stainless Steel Conveyor Roller Chain With Extended Pin 1

DIN/ISO Chain No. ANSI Chain No. P b1 d2 L3 L Lc
mm
06C 35 9.525 4.77 3.58 9.5 20.8 21.6
08A 40 12.7 7.85 3.96 9.5 25.1 26.2
10A 52 15.875 9.4 5.08 11.9 31.3 33.1
12A 60 19.05 12.57 5.94 14.3 38.6 40.6
16A 80 25.4 15.75 7.92 19.1 50.3 53.3
20A 100 31.75 18.9 9.53 23.8 61.8 66.1
24A 120 38.1 25.22 11.1 28.6 76.4 80.4
28A 140 44.45 25.22 12.7 33.3 84.8 89.4
32A 160 50.8 31.55 14.27 38.1 99.6 104.4
08B   12.7 7.75 4.45 9.5 25.1 26.6
10B   15.875 9.65 5.08 11.9 30.1 31.5
12B   19.05 11.68 5.72 14.3 35.4 37.1
16B   25.4 17.02 8.28 19.1 53 54.3
20B   31.75 19.56 10.19 41 79.9 83.6
24B   38.1 25.4 14.63 50.7 101.4 105.8
28B   44.45 30.99 15.9 61.9 124 128.4
32B   50.8 30.99 17.81 64.8 126.8 131.8











Packing Delivery Shipping



Packaging Details:

Packing: a conveyor chain with extended pin + a poly bag + individual box + a wooden case

Port: shanghai ,ningbo

Short Pitch Stainless Steel Conveyor Roller Chain With Extended Pin 2

Delivery Details:

Usually, we pack conveyer chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.





Recommend Products

Short Pitch Stainless Steel Conveyor Roller Chain With Extended Pin 3





Our Service



1. UCER chain supply OEM/ODM service.

2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
