| Brand Name: | UCER |
| Model Number: | 820 series |
| MOQ: | 1000 Pieces |
| Price: | $12.99/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

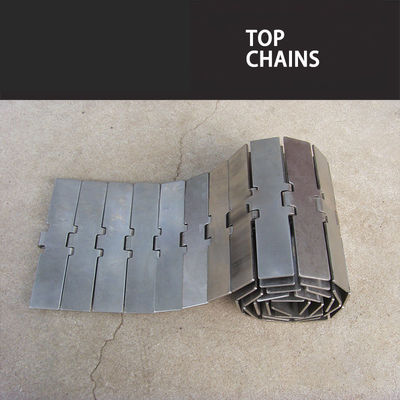

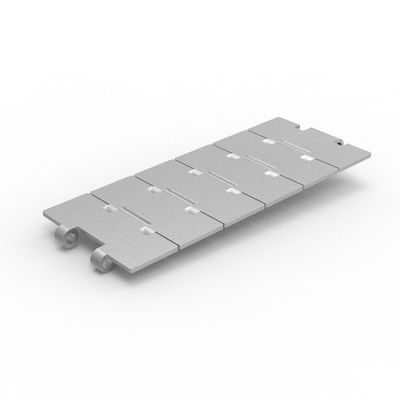

Flat Top Conveyor Chain Modular Plastic Belts Food Conveyor Beverage Heavy Duty Conveyor Chains
Quick Detail
Standard or Nonstandard:Nonstandard
Type:flat top chain
Material:stainless steel
Tensile Strength:20-50% Higher
Place of Origin:Zhejiang, China
Brand Name:Gelin or OEM
Material::stainless ateel
Quality:Combined With Advanced technique
High qulity:durable service
Chain Color:Solid Color
Production Style:Manufacture
Specification
Mat: Stainless steel Max length: 15m
Pin mat: Stainless steel Work temp: -40°c to +90°c
Working load(25°c): 2250N Max speed: 80m/min lubrication, 50m/min dry
Main application: transportation for various of glass bottles,and heavy load items .
Sprockets are the same with chains 820
| Chain NO. | P | b6 max | d1 max | d2 max | T max | L | b1 max | b3 max | Ultimate tensile strength | Weight permeter | |
| 300 series | 400series | ||||||||||
| 76.2 | KN min | KN min | kg/m | ||||||||
| C12S | 38.1 | 76.2 | 13.13 | 6.38 | 3.35 | 37.28 | 20 | 42.05 | 8 | 6.25 | 2.39 |
| C13S | 38.1 | 82.6 | 13.13 | 6.38 | 3.35 | 37.28 | 20 | 42.05 | 8 | 6.25 | 2.55 |
| C14S | 38.1 | 88.9 | 13.13 | 6.38 | 3.35 | 37.28 | 20 | 42.05 | 8 | 6.25 | 2.7 |
| C16S | 38.1 | 101.6 | 13.13 | 6.38 | 3.35 | 37.28 | 20 | 42.05 | 8 | 6.25 | 2.99 |
| C18S | 38.1 | 114.3 | 13.13 | 6.38 | 3.35 | 37.28 | 20 | 42.05 | 8 | 6.25 | 3.29 |
| C24S | 38.1 | 152.4 | 13.13 | 6.38 | 3.35 | 37.28 | 20 | 42.05 | 8 | 6.25 | 4.17 |
| C30S | 38.1 | 190.5 | 13.13 | 6.38 | 3.35 | 37.28 | 20 | 42.05 | 8 | 6.25 | 5.06 |
Packing Delivery Shipping
Packaging Details:
• Inner packing :pack in paper box
• Out packing: Cartons or wooden pallet
• Suitable for sea and inland shipment
• As customers' request
Port: shanghai ,ningbo
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
