| Brand Name: | UCER |
| Model Number: | HP series |
| MOQ: | 50 Meters |
| Price: | $2.00 - $50.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

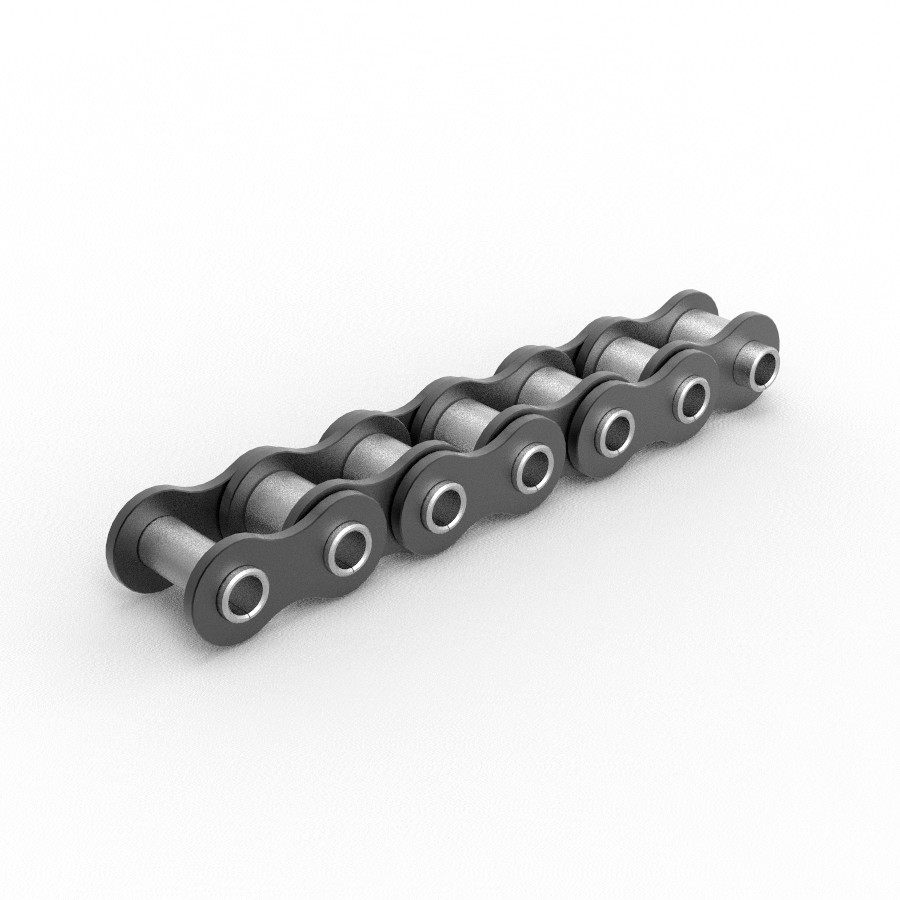

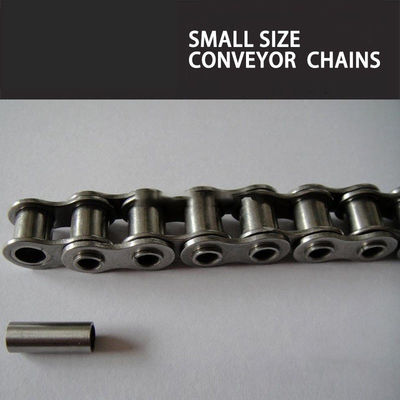

HP China Manufacturer Conveyor Chain Stainless Steel Hollow Pin Chain Heavy Duty Conveyor Chains
Quick Details:
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:HP series
Structure:Roller Chain
Function:Conveyor Chain
Material:ALLOY
Standard or Nonstandard:Standard
roller chain name:Hollow Pin Chain
conveyor chain type:hollow shaft
OEM service:accept
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
pitch:12.70 - 25.40 mm
hollow pin diameter:6.38 - 11.0 mm
production maker:China manufacturer
material:alloy steel or stainless steel
Supply Ability:10000 Meter/Meters per Month
Specification
| DIN ISO Chain No. | Pitch | b1 min mm | d1 max mm | d2 max mm | L max mm | Lc max mm | h2 max mm | U.T.S KN | A.T.S KN | q ≈ kg/m | Type | ||
| mm | inch | ||||||||||||
| 08B HP | 12.7 | 1/2" | 7.75 | 8.51 | 6.38 | 4.5 | 16.8 | 18.1 | 11.8 | 13.5 | 14.6 | 0.6 | A |
| 10B HP | 15.88 | 5/8" | 9.65 | 10.16 | 7.03 | 5 | 18.6 | 20.8 | 14.3 | 14.5 | 15.6 | 0.83 | |
| 12B HP | 19.05 | 3/4" | 11.68 | 12.07 | 8.1 | 5.75 | 24 | 23.6 | 16.5 | 18.5 | 19.5 | 1.05 | A |
| 16B HP | 25.4 | 1" | 17.02 | 15.88 | 11.1 | 8.1 | 36 | 38 | 21 | 50 | 60.3 | 2.4 | A |
| *40HP | 12.7 | 1/2" | 7.85 | 7.95 | 5.63 | 4 | 16.5 | 17.6 | 12 | 11 | 12.2 | 0.54 | B |
| *50HP | 15.88 | 5/8" | 9.4 | 10.16 | 7.03 | 5.3 | 20.7 | 21.9 | 15.09 | 20 | 22.1 | 0.91 | B |
| *60HP | 19.05 | 3/4" | 12.7 | 11.91 | 8.31 | 6 | 25.8 | 26.4 | 18 | 24 | 26.9 | 1.29 | B |
| *80HP | 25.4 | 1" | 15.75 | 15.88 | 11.1 | 8.03 | 32.7 | 33.9 | 24 | 52 | 60.3 | 2.5 | B |
ANSI Standard double pitch hollow pin chain(bush type)
| DIN ISO Chain No. | Pitch | d1 mm | b1 mm | h2 max mm | d2 mm | d3 mm | t mm | L mm | U.T.S KN | A.T.S KN | q ≈ kg/m | |
| mm | inch | |||||||||||
| C2040HP | 25.4 | 1" | 7.92 | 7.85 | 12 | 5.63 | 4 | 1.52 | 16.6 | 6.8 | 8.16 | 0.46 |
| C2050HP | 31.75 | 1"1/4 | 10.16 | 9.4 | 15 | 7.06 | 5.13 | 2 | 20.5 | 10.6 | 12.7 | 0.76 |
| C2060HP | 38.1 | 1"1/2 | 11.91 | 12.57 | 18 | 8.33 | 5.97 | 2.4 | 25.3 | 16.1 | 19.32 | 1.08 |
| C2080HP | 50.8 | 2" | 15.88 | 15.75 | 23.6 | 11.11 | 8.07 | 3.2 | 32.7 | 26.8 | 32.16 | 1.91 |
ANSI Standard double pitch hollow pin chain(roller type)
| DIN ISO Chain No. | Pitch | d1 mm | b1 mm | h2 max mm | d2 mm | d3 mm | t mm | L mm | U.T.S KN | A.T.S KN | q ≈ kg/m | |
| mm | inch | |||||||||||
| C2042HP | 25.4 | 1" | 15.88 | 7.85 | 12 | 5.63 | 4 | 1.52 | 16.6 | 6.8 | 8.16 | 0.8 |
| C2052HP | 31.75 | 1"1/4 | 19.05 | 9.4 | 15 | 7.06 | 5.13 | 2 | 20.5 | 10.6 | 12.72 | 1.21 |
| C2062HP | 38.1 | 1"1/2 | 22.23 | 12.57 | 18 | 8.33 | 5.97 | 2.4 | 25.3 | 16.1 | 19.32 | 1.75 |
| C2082HP | 50.8 | 2" | 28.58 | 15.75 | 23.6 | 11.11 | 8.07 | 3.2 | 32.7 | 26.8 | 32.16 | 2.93 |
Packing Delivery Shipping
Packaging Details:
Packing: a hollow pin chain + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
Delivery Details:
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
