| Brand Name: | UCER |
| Model Number: | c2040TR c2050TR c2060HTR |
| MOQ: | 50 Meters |
| Price: | $2.00 - $50.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

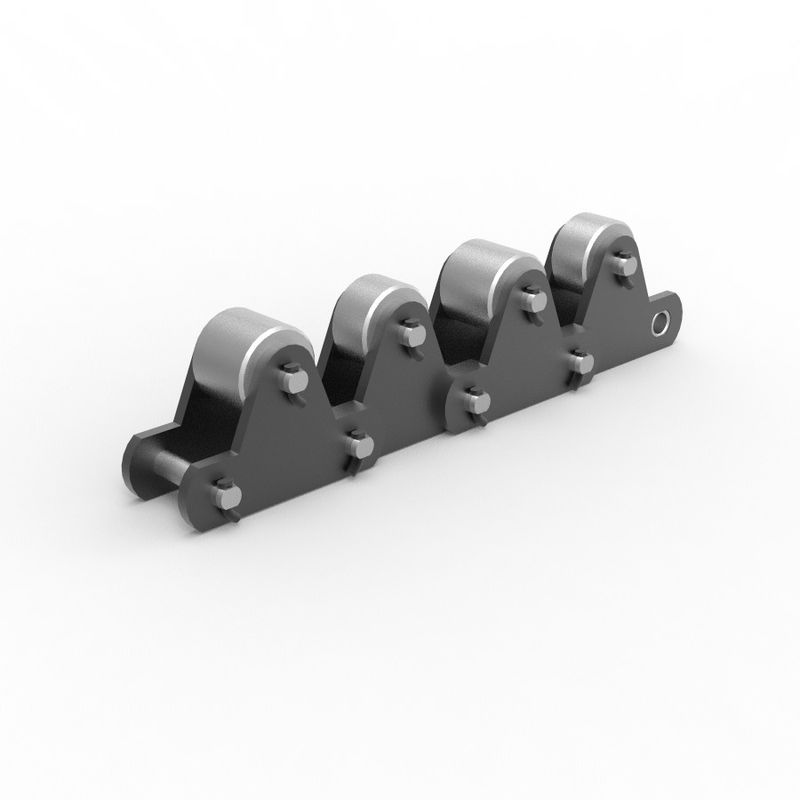

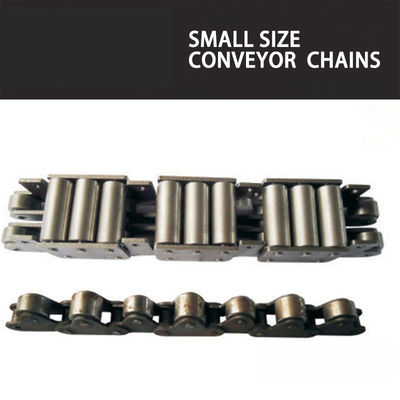

Carbon Steel Short Pitch Conveyor Chain With Top Roller Heavy Duty Conveyor Chains
Quick Details:
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:P80 P80F3
Structure:Roller Chain
Function:Conveyor Chain
Standard or Nonstandard:Standard
roller chain name:High Quality tooth chain lumber conveyor chain
conveyor chain type:chain with attchments
OEM service:accept
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
tooth chain pitch:76 mm
pin diameter:29.24 mm
roller diameter:48.26 mm
production maker:China manufacturer
size&capacity:pls reference to the form
Supply Ability:10000 Meter/Meters per Month
Specification
| DIN ISO Chain No.UCER | DIN ISO Chain No.CHJC | Pitch | d1 mm | b1 mm | d2 mm | T mm | h2 mm | Lc mm | q ≈ kg/m | q ≈ kg/m | q ≈ kg/m | q ≈ kg/m | |
| mm | inch | ||||||||||||
| 40TR | 40RP | 12.7 | 1/2" | 12.7 | 7.92 | 3.96 | 1.52 | 11.99 | 18.21 | 1.83 | 1.41 | 0.92 | 0.85 |
| 50TR | 50RP | 15.875 | 5/8" | 15.875 | 9.53 | 5.08 | 2.03 | 15.01 | 22.3 | 2.4 | 2.17 | 1.56 | 1.38 |
| 60TR | 60RP | 19.05 | 3/4" | 19.05 | 12.7 | 5.94 | 2.39 | 18.11 | 27.61 | 3.6 | 3.18 | 2.31 | 2.02 |
| 80TR | 80RP | 25.4 | 1" | 25.4 | 15.88 | 7.93 | 3.18 | 24.1 | 35.51 | 6.09 | 5.27 | 3.9 | 3.44 |
| 100TR | 100RP | 31.75 | 1"1/4 | 31.75 | 19.5 | 9.53 | 3.96 | 30.1 | 12.62 | 9.3 | 8.85 | 6.06 | 5.42 |
| DIN ISO Chain No.UCER | DIN ISO Chain No.CHJC | Pitch | d1 mm | b1 mm | d2 mm | T mm | h2 mm | Lc mm | q ≈ kg/m | q ≈ kg/m | |
| mm | inch | ||||||||||
| C2040TR | C2040TRP | 25.4 | 1" | 7.92 | 7.92 | 3.96 | 1.52 | 11.99 | 18.21 | 1.32 | 0.91 |
| C2050TR | C2050TRP | 31.75 | 1"1/4 | 10.13 | 9.53 | 5.08 | 2.03 | 15.01 | 22.3 | 2.04 | 1.44 |
| C2060HTR | C2060HTRP | 38.1 | 1"1/2 | 11.91 | 12.71 | 5.94 | 2.39 | 17.2 | 31.12 | 3.68 | 2.77 |
| C2080HTR | C2080HTRP | 50.8 | 2" | 15.88 | 15.88 | 7.93 | 3.18 | 23.01 | 39.19 | 5.65 | 4.29 |
| C2100HTR | C2100HTRP | 63.5 | 2"1/2 | 19.05 | 19.05 | 9.53 | 3.96 | 28.6 | 46.3 | 9.11 | 6.5 |
Packing Delivery Shipping
Packaging Details:
Packing: a conveyor chain with top roller + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
Delivery Details:
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
