| Brand Name: | UCER |
| Model Number: | P80 P80F3 |
| MOQ: | 50 Meters |
| Price: | $2.00 - $50.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

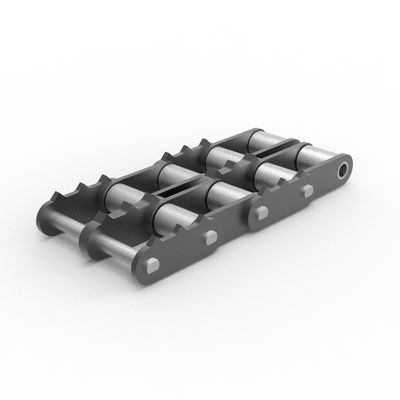

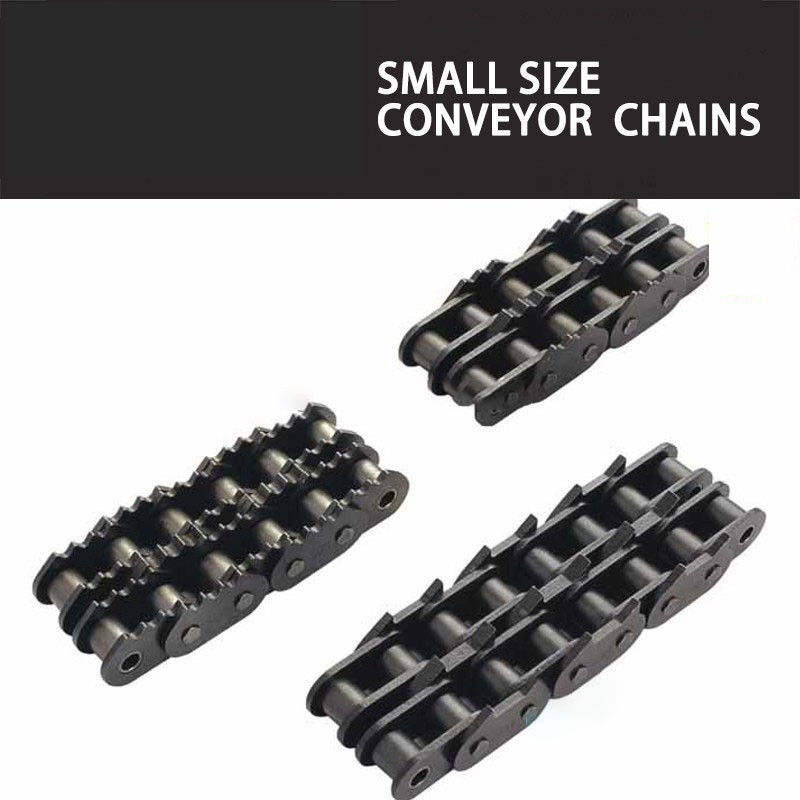

Short Pitch Conveyor Roller Chain With K2 Attachment Double Side Cranked Link Chain
Quick Details:
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:P80 P80F3
Structure:Roller Chain
Function:Conveyor Chain
Standard or Nonstandard:Standard
roller chain name:High Quality tooth chain lumber conveyor chain
conveyor chain type:chain with attchments
OEM service:accept
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
tooth chain pitch:76 mm
pin diameter:29.24 mm
roller diameter:48.26 mm
production maker:China manufacturer
size&capacity:pls reference to the form
Supply Ability:10000 Meter/Meters per Month
Specification
| Chain NO. | P | H | h | h2 max | G |
| mm | |||||
| 50F21 | 15.875 | 40 | 20 | 13 | 48 |
| Chain NO. | P | L | h | H |
| mm | ||||
| 16B-1180 | 25.4 | 46 | 12.2 | 22.5 |
| Chain NO. | P | L | h | H | α |
| mm | |||||
| 25HF5-6STC | 6.35 | 5.8 | 8.8 | 12.2 | 90° |
| 16B-1185 | 25.4 | 46 | 16 | 26.5 | 75° |
| 16B-6STC | 25.4 | 46 | 16 | 26.5 | 73.4° |
| Chain NO. | P | L | h | H | α |
| mm | |||||
| 16B-2STCF1 | 25.4 | 15 | 24.75 | 24.75 | 88° |
| 20A-2STCF1 | 31.75 | 23 | 35.95 | 35.95 | 80° |
| 20A-2STCF3 | 31.75 | 23 | 35.95 | 35.95 | 82° |
| Chain NO. | P | h | H |
| mm | |||
| 24B-1810 | 38.1 | 19 | 35.5 |
| 120F6 | 38.1 | 21 | 38.5 |
| Chain NO. | P | L | h |
| mm | |||
| 16BF6 | 25.4 | 46 | 30 |
| 16BF5 | 25.4 | 48.8 | 22.9 |
| Chain NO. | P | h | H |
| mm | |||
| P80 | 80 | 30 | 58 |
| Chain NO. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate thickness | Ultimte tensile strength | Average tensile strength | Weight permeter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | T max | Qmin | Q0 | q | |
| mm | kN/bf | KN | kg/m | |||||||
| P80 | 80 | 42 | 24 | 15 | 55 | 60 | 6 | 250/56818 | 275 | 11.3 |
| Chain NO. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate thickness | Ultimte tensile strength | Average tensile strength | Weight permeter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | T max | Qmin | Q0 | q | |
| mm | kN/bf | KN | kg/m | |||||||
| P80F3 | 80 | 30 | 32 | 15 | 58.6 | 62.6 | 5 | 98/20909 | 107 | 9.12 |
| P80F32 | 80 | 30 | 30 | 15 | 63 | 72 | 6 | 112/25194 | 123.2 | 7.28 |
Packing Delivery Shipping
Packaging Details:Packing: a tooth chain + a poly bag + individual box + a wooden case
Port: shanghai ,ningbo
Delivery Details:
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
