| Brand Name: | UCER |
| Model Number: | WB |
| MOQ: | 50 Meters |
| Price: | $10.00 - $50.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |
Caterpillar Forged Heavy Duty Chain For Coal Mine

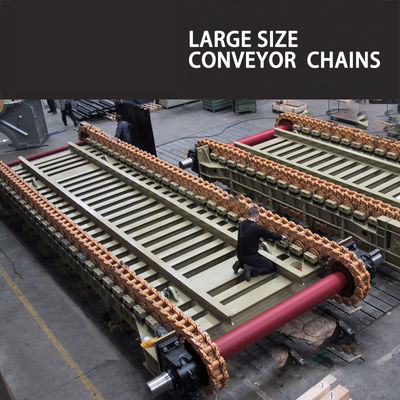

WB drop forged heavy duty apron feeder chain for coal mine
This kind of conveyor is specially designed for conveying materials into the crusher for further crushing.
Apron Feeder
Model WB series of apron feeders developed by our company are used to horizontally or inclinedly convey various lumpy or loose materials from warehouse to crusher or other machinery, and are widely used in the industries of mining and cement etc.. This machine has features of compact and reasonable structure, stable performance, good speed-adjusting performance and no spillage and leakage of materials. Its index of main technical performance and guaranteed index of service life are up to the leading level of domestic same kind of products(Its length can be determined according to the process design). This machine is a recommended product appointed by Cement Association of National Building Materials Bureau.
Quick Details
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:WB
Structure:Combined Chain
Function:Conveyor Chain
Standard or Nonstandard:Standard
chain name:dia forging chain
application:industrial cement
conveyor chain type:conveyor chain with attchment
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Color:black & gray yellow
chain process:drop forged
detachable:easy
Delivery in time:on time
size&capacity:pls reference to the form
Main Technical Data
| Model |
Width (mm) |
Inclination (º) |
Speed (m/s) |
Feed Size (mm) |
Capacity (t/h) |
| WB800×M | 800 | 0-25 | 0.014-0.14 | ≤350 | 20-80 |
| WB1000×M | 1000 | 0-25 | 0.014-0.14 | ≤600 | 40-120 |
| WB1250×M | 1250 | 0-25 | 0.014-0.14 | ≤700 | 40-200 |
| WB1400×M | 1400 | 0-25 | 0.014-0.14 | ≤700 | 40-250 |
| WB1500×M | 1500 | 0-25 | 0.014-0.14 | ≤800 | 40-300 |
| WB1600×M | 1600 | 0-23 | 0.014-0.14 | ≤800 | 40-320 |
| WB1800×M | 1800 | 0-23 | 0.014-0.14 | ≤900 | 40-600 |
| WB2000×M | 2000 | 0-23 | 0.014-0.14 | ≤1000 | 40-800 |
| WB2200×M | 2200 | 0-23 | 0.014-0.14 | ≤1100 | 40-1000 |
| WB2300×M | 2300 | 0-23 | 0.014-0.14 | ≤1200 | 40-1200 |
| WB2400×M | 2400 | 0-23 | 0.014-0.14 | ≤1200 | 40-1400 |
| WB2500×M | 2500 | 0-23 | 0.014-0.14 | ≤1500 | 40-1600 |
| WB3000×M | 3000 | 0-23 | 0.014-0.14 | ≤1800 | 500-2000 |
Note: Length “M” will be determined as per the design process of the apron feeder, “M”=2.5-40M.
Packing Delivery Shipping
Packaging Details
Packing: a apron feeder conveyor chain + a poly bag + individual box + wooden case
Port:shanghai ,ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
