| Brand Name: | UCER |
| Model Number: | M series |
| MOQ: | 50 Meters |
| Price: | $10.00 - $50.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

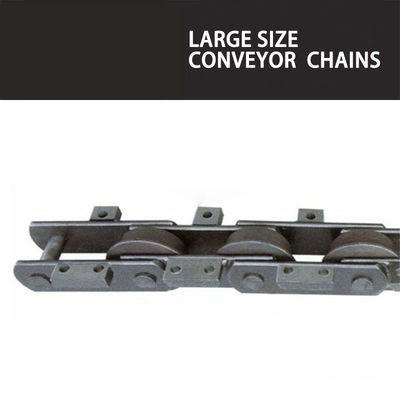

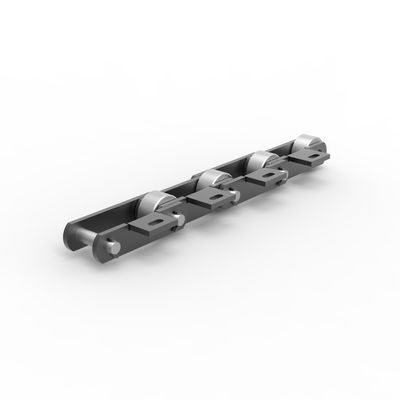

F Flanged Rollers Type Coal Handling Plant Steel Conveyor Chain For Apron Feeder Heavy Duty Conveyor Chain
Quick Details
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:M series
Structure:Roller Chain
Function:Conveyor Chain
Material:ALLOY
Standard or Nonstandard:Standard
chain name:apron feeder conveyor chain
conveyor chain type:F flanged rollers type
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
roller type:F flanged rollers type
conveyor chain pitch:320mm
roller diameter:150mm
pin diameter:40mm
size&capacity:pls reference to the form
Specification
| Chain NO. | Pitch | Roller diameter | Width between inner plates | Pin diameter | installation size | Tensile strength Q | |||
| I 1 | I 2 | I 3 | D 3 | ||||||
| mm | KN | ||||||||
| M224-250 | 250 | 42 | 42 | 21 | 140 | 65 | 55 | 16 | 224 |
| M315-315 | 315 | 50 | 49 | 25 | 160 | 100 | 65 | 18 | 315 |
| M450-315 | 315 | 60 | 56 | 30 | 160 | 90 | 70 | 18 | 450 |
| M630-315 | 315 | 70 | 68 | 45 | 200 | 85 | 90 | 24 | 630 |
| M900-315 | 315 | 70 | 98 | 48 | 250 | 85 | 100 | 24 | 900 |
Packing Delivery Shipping
Packaging Details
Packing: a apron feeder conveyor chain + a poly bag + individual box + wooden case
Port:shanghai ,ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
