| Brand Name: | UCER |
| Model Number: | DH PH |
| MOQ: | 50 Meters |
| Price: | $10.00 - $60.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

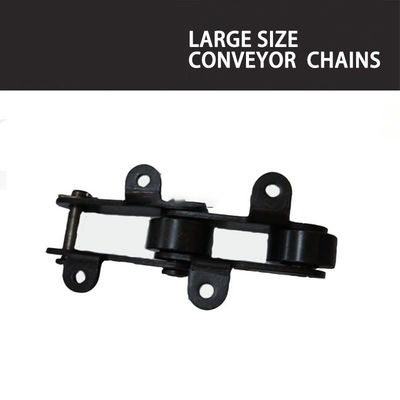

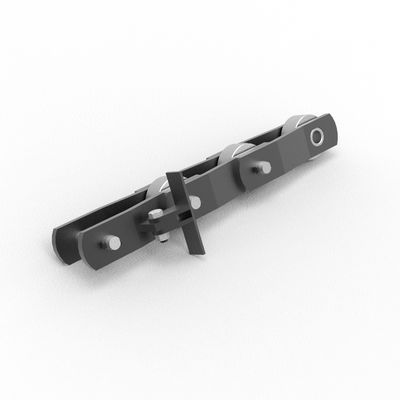

Sugar Mill Machine Cane Machine Industry Transmission Chain Heavy Duty Conveyor Chains
Quick Details
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:DH PH
Structure:Roller Chain
Function:Conveyor Chain
Material:ALLOY
Standard or Nonstandard:Standard
conveyor chains name:sugar mill chain
application:sugar machine
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
surface treatment:shot peening
conveyor chain pitch:152.4 mm
chain pin roller material:40Cr
packaging:standard
size&capacity:pls reference to the form
Specification
| Chain NO. | P | G | L | F | X | h4 |
| mm | ||||||
| DH09060 | 152.4 | 114.3 | 82.6 | 88.9 | 50.8 | 111.25 |
| DH1796 | 152.4 | 114.3 | 82.6 | 88.9 | 50.8 | 111.25 |
| F152F77-AS2 | 152.4 | 127 | 88.9 | 92.1 | 50.8 | 66.8 |
| F203.2F9 | 152.4 | 127 | 88.9 | 107.1 | 50.8 | 66.8 |
| Chain NO. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Ultimte tensile strength | Average tensile strength |
| P | d1 max | b1 min | d2 max | Lc max | h2 max | T max | Qmin | Q0 | |
| mm | kN/bf | KN | |||||||
| DH09060 | 152.4 | 69.85 | 38.1 | 19.05 | 96.6 | 50.8 | 9.65 | 270*60740 | 297 |
| DH1796 | 152.4 | 69.85 | 38.1 | 22.35 | 100 | 57.15 | 9.65 | 445/100100 | 489.5 |
| F152F77-AS2 | 152.4 | 76.2 | 34.5 | 22.23 | 95.1 | 50.8 | 9.52 | 263/59120 | 280 |
| F203.2F9 | 203.2 | 88.9 | 46 | 25.4 | 118.2 | 69.9 | 12.7 | 615/138257 | 640 |
| Chain NO. | P | G | L | F | W | h4 | d4 |
| mm | |||||||
| SM203.2F3K2 | 203.2 | 152.4 | 82.6 | 131.76 | 182.6 | 55.5 | 19.05 |
| SM203.2F4K2 | 203.2 | 127 | 82.6 | 131.76 | 171.4 | 55.5 | 17.5 |
| SM203.2F5K2 | 203.2 | 152.4 | 82.6 | 131.76 | 191 | 54.5 | 19.05 |
| Chain NO. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Ultimte tensile strength | Average tensile strength | Weight permeter |
| P | d1 max | b1 max | d2 max | Lc max | h2 max | T max | Qmin | Q0 | q | |
| mm | kN/bf | KN | kg/m | |||||||
| SM203.2F3K2 | 203.2 | 88.9 | 46 | 25.32 | 126 | 71.4 | 12.7 | 520/116900 | 545 | 37.7 |
| SM203.2F4K2 | 203.2 | 88.9 | 46 | 25.32 | 126 | 73.2 | 12.7 | 585/131513 | 614 | 35.9 |
| SM203.2F5K2 | 203.2 | 88.9 | 46 | 25.32 | 126 | 70 | 12.7 | 480/107908 | 504 | 37.6 |
| Chain NO. | P | G | L | F | W | h4 | d4 |
| mm | |||||||
| DH9063 | 152.4 | 114.3 | 76.2 | 111.13 | 165.86 | 44.45 | 14.3 |
| DH2198 | 152.4 | 114.3 | 76.2 | 111.25 | 152.4 | 41.4 | 14.3 |
| P152F93K2 | 152.4 | 110 | 76.2 | 111 | 146 | 44.5 | 14.3 |
| P152F78K2 | 152.4 | 114.3 | 76.2 | 111 | 165 | 41.3 | 14 |
| Chain NO. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Ultimte tensile strength | Average tensile strength | Weight permeter |
| P | d1 max | b1 max | d2 max | Lc max | h2 max | T max | Qmin | Q0 | q | |
| mm | kN/bf | KN | kg/m | |||||||
| DH9063 | 152.4 | 76.2 | 38.1 | 23.83 | 103.2 | 61 | 10.3 | 445/100000 | 489 | 27.5 |
| DH2198 | 152.4 | 69.85 | 38.1 | 22.23 | 111.2 | 57.15 | 12.7 | 404.5/91000 | 445 | 27.9 |
| P152F93K2 | 152.4 | 76.2 | 37.6 | 22.23 | 97.1 | 57.2 | 9.52 | 376/84500 | 410 | 26.2 |
| P152F78K2 | 152.4 | 69.85 | 37.6 | 22.23 | 97.1 | 57.2 | 9.52 | 376/84500 | 410 | 26.2 |
Packing Delivery Shipping
Packaging Details:Packing: a sugar mill chain + a poly bag + individual box + wooden case
Port:shanghai ,ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
