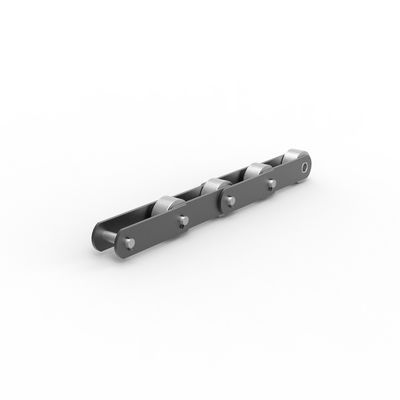

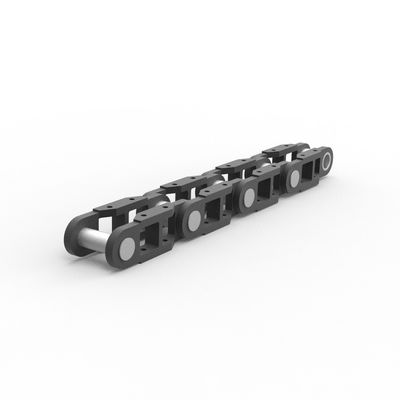

Double Pitch M Series Conveyor Chain With F Flanged Roller Type Heavy Duty Conveyor Chains
Quick Details
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:M series
Structure:Roller Chain
Function:Conveyor Chain
Material:ALLOY
Standard or Nonstandard:Standard
chain name:M series conveyor roller chain
chain roller type:P large roller chain
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
business type:China manufacturer
chain plate material:C45
chain roller material:40Cr
pin marerial:40Cr
size&capacity:pls reference to the form
Specification
| DIN Chain NO. | Pitch | Roller dimension | Bush diameter | ||||||||
| P | d1 max | d7 max | d5 max | d4max | |||||||
| mm | |||||||||||
| M20 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 25 | 12.5 | 30 | 9 |
| M28 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 30 | 15 | 36 | 10 |
| M40 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 36 | 18 | 42 | 12.5 |
| M56 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 42 | 21 | 50 | 15 |
| M80 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 50 | 25 | 60 | 18 |
| M112 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 60 | 30 | 70 | 21 |
| M160 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 70 | 36 | 85 | 25 |
| M224 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 85 | 42 | 100 | 30 |
| M315 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 100 | 50 | 120 | 36 |
| M450 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 120 | 60 | 140 | 42 |
| Chain NO. | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Ultimte tensile strength | Average tensile strength |
| b1 min | d2 max | L max | h2 max | T max | Qmin | Q0 | |
| mm | kN/bf | KN | |||||
| M20 | 16 | 6 | 35 | 18 | 2.5 | 20/4545 | 25 |
| M28 | 18 | 7 | 40 | 20 | 3 | 28/6364 | 35 |
| M40 | 20 | 8.5 | 45 | 25 | 3.5 | 40/9091 | 50 |
| M56 | 24 | 10 | 52 | 30 | 4 | 56/12727 | 70 |
| M80 | 28 | 12 | 62 | 35 | 5 | 80/18182 | 100 |
| M112 | 32 | 15 | 73 | 40 | 6 | 112/25454 | 140 |
| M160 | 37 | 18 | 85 | 50 | 7 | 160/36364 | 200 |
| M224 | 43 | 21 | 98 | 40 | 8 | 224/50909 | 280 |
| M315 | 48 | 25 | 112 | 70 | 10 | 315/71591 | 393.7 |
| M450 | 56 | 30 | 135 | 80 | 12 | 450/102272 | 562.5 |
| ISO Chain NO. | Pitch | Roller dimension | Bush diameter | |||||||||
| P | d1 max | d7 max | d5 max | d4max | ||||||||
| mm | ||||||||||||
| M20 | *40 | 50 | 63 | 80 | 100 | 125 | 160 | 25 | 12.5 | 30 | 9 | |
| M28 | *50 | 63 | 80 | 100 | 125 | 160 | 200 | 30 | 15 | 36 | 10 | |
| M40 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 36 | 18 | 42 | 12.5 | |
| M56 | *63 | 80 | 100 | 125 | 160 | 200 | 250 | 42 | 21 | 50 | 15 | |
| M80 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 50 | 25 | 60 | 18 | |
| M112 | *80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 60 | 30 | 70 | 21 |
| M160 | *100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | 70 | 36 | 85 | 25 |
| M224 | *125 | 160 | 200 | 250 | 315 | 400 | 500 | 630 | 85 | 42 | 100 | 30 |
| M315 | *160 | 200 | 250 | 315 | 400 | 500 | 630 | 100 | 50 | 120 | 36 | |
| M450 | 200 | 250 | 315 | 400 | 500 | 630 | 800 | 120 | 60 | 140 | 42 | |
| ISO Chain NO. | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Ultimte tensile strength | Average tensile strength |
| b1 min | d2 max | L max | h2 max | T max | Qmin | Q0 | |
| mm | kN/bf | KN | |||||
| M20 | 16 | 6 | 35 | 18 | 2.5 | 20/4545 | 25 |
| M28 | 18 | 7 | 40 | 20 | 3 | 28/6364 | 35 |
| M40 | 20 | 8.5 | 45 | 25 | 3.5 | 40/9091 | 50 |
| M56 | 24 | 10 | 52 | 30 | 4 | 56/12727 | 70 |
| M80 | 28 | 12 | 62 | 35 | 5 | 80/18182 | 100 |
| M112 | 32 | 15 | 73 | 40 | 6 | 112/25454 | 140 |
| M160 | 37 | 18 | 85 | 50 | 7 | 160/36364 | 200 |
| M224 | 43 | 21 | 98 | 40 | 8 | 224/50909 | 280 |
| M315 | 48 | 25 | 112 | 70 | 10 | 315/71591 | 393.7 |
| M450 | 56 | 30 | 135 | 80 | 12 | 450/102272 | 562.5 |
Packing Delivery Shipping
Packaging Details:Packing: a M series conveyor chain + a poly bag + individual box + wooden case
Port:shanghai ,ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
