| Brand Name: | UCER |
| Model Number: | M series |
| MOQ: | 50 Meters |
| Price: | $10.00 - $50.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

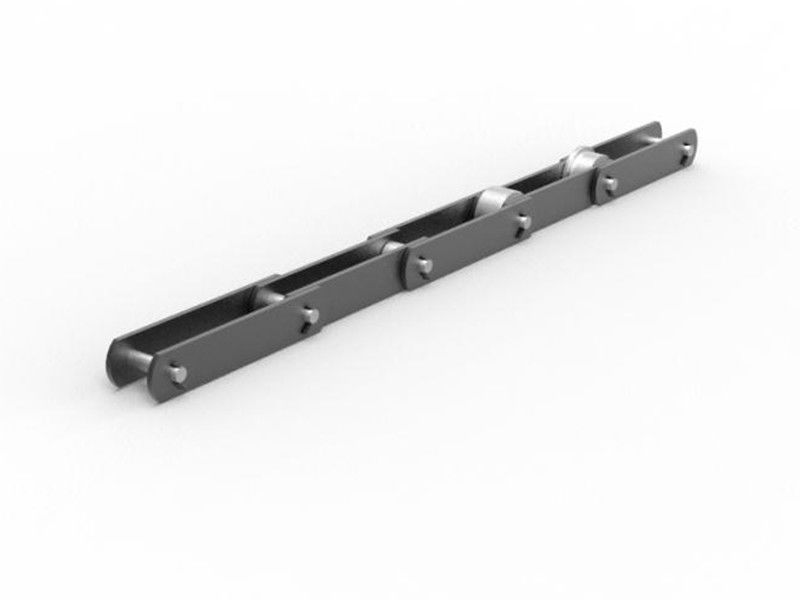

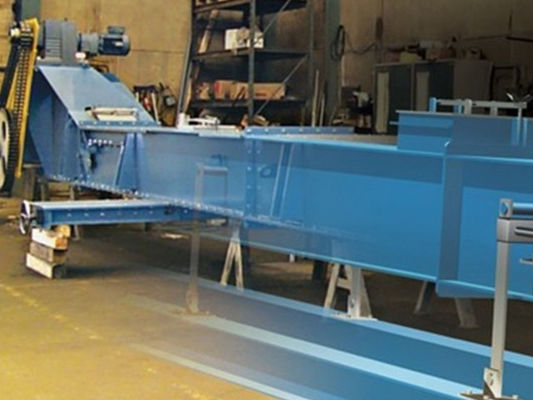

Chain Scraper Conveyor Carbon Steel Conveyor Chain
Quick Details
Finish:Black
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:M series
Structure:Roller Chain
Function:Conveyor Chain
Standard or Nonstandard:Standard
chain name:M series conveyor roller chain
conveyor chain type:M series
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
roller type:F flanged rollers type, big roller, small roller
chain plate material:45#
chain roller material:40Cr
pin marerial:40Cr
size&capacity:pls reference to the form
Supply Ability:10000 Meter/Meters per Month
Specification
| Chain NO. | Pitch P | Inner link inner width b1 | Pin diameter d1 | Plate height h | S Roller diameter d2 | P Roller diameter d3 | F Roller diameter d4/d5 |
| mm | |||||||
| M20 | 50/63/80/125/160 | 15 | 6 | 19 | 12.5 | 25 | 25/30 |
| M28 | 63/80/100/125/160/200 | 17 | 7 | 21 | 15 | 30 | 30/40 |
| M40 | 63/80/100/125/160/200/250 | 19 | 8.5 | 26 | 18 | 36 | 36/45 |
| M56 | 80/100/125/160/200/250 | 23 | 10 | 31 | 21 | 42 | 42/55 |
| M80 | 80/100/125/160/200/250/315 | 27 | 12 | 36 | 25 | 50 | 50/65 |
| M112 | 100/125/160/200/250/315/400 | 31 | 15 | 41 | 30 | 60 | 60/75 |
| M160 | 125/160/200/250/315/400/500 | 36 | 18 | 51 | 36 | 70 | 70/90 |
| M224 | 160/200/250/315/400/500/630 | 42 | 21 | 62 | 42 | 85 | 85/105 |
| M315 | 200/250/315/400/500/630 | 47 | 25 | 72 | 50 | 100 | 100/125 |
| M450 | 200/250/315/400/500/630/800 | 55 | 30 | 85 | 60 | 120 | 120/150 |
| M630 | 250/315/400/500/630/800/1000 | 65 | 36 | 105 | 70 | 140 | 140/175 |
| M900 | 315/400/500/630/800/1000 | 76 | 44 | 123 | 85 | 170 | 170/210 |
Packing Delivery Shipping
Packaging Details:Packing: a M series conveyor chain + a poly bag + individual box + wooden case
Port:shanghai ,ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
