| Brand Name: | UCER |
| Model Number: | Custom design |
| MOQ: | 50 Meters |
| Price: | $10.00 - $70.00/ Meter |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

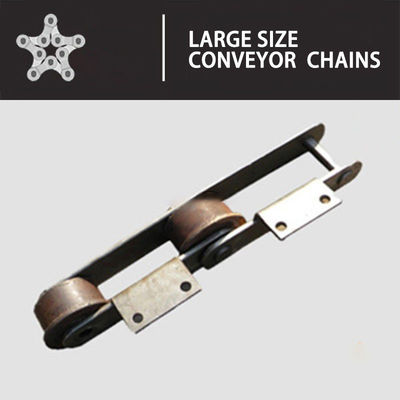

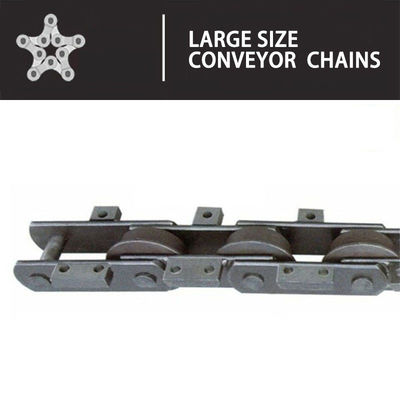

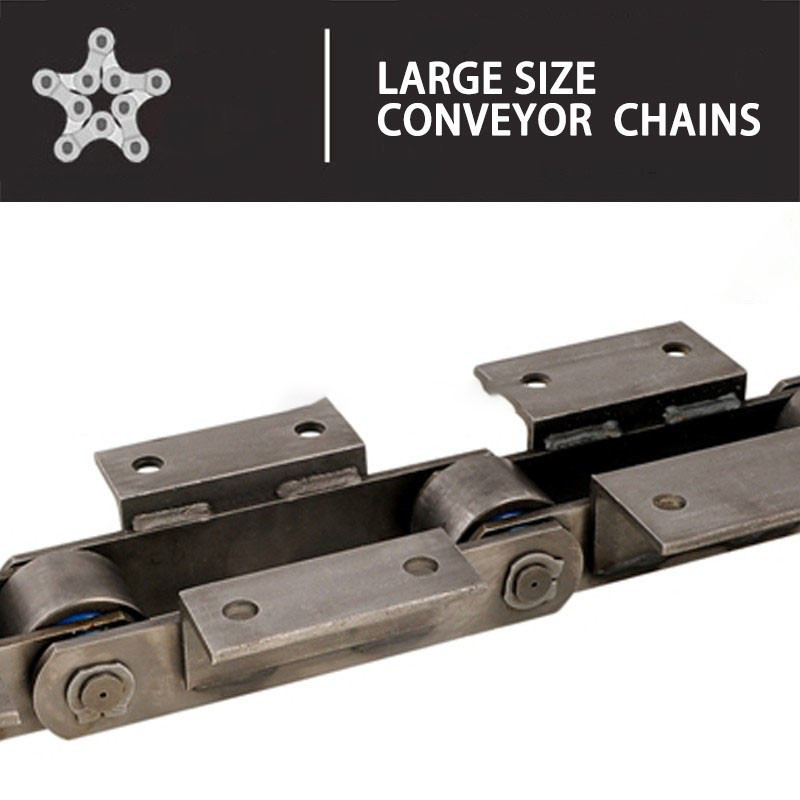

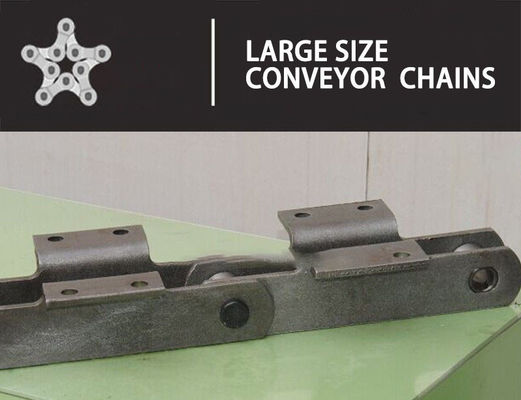

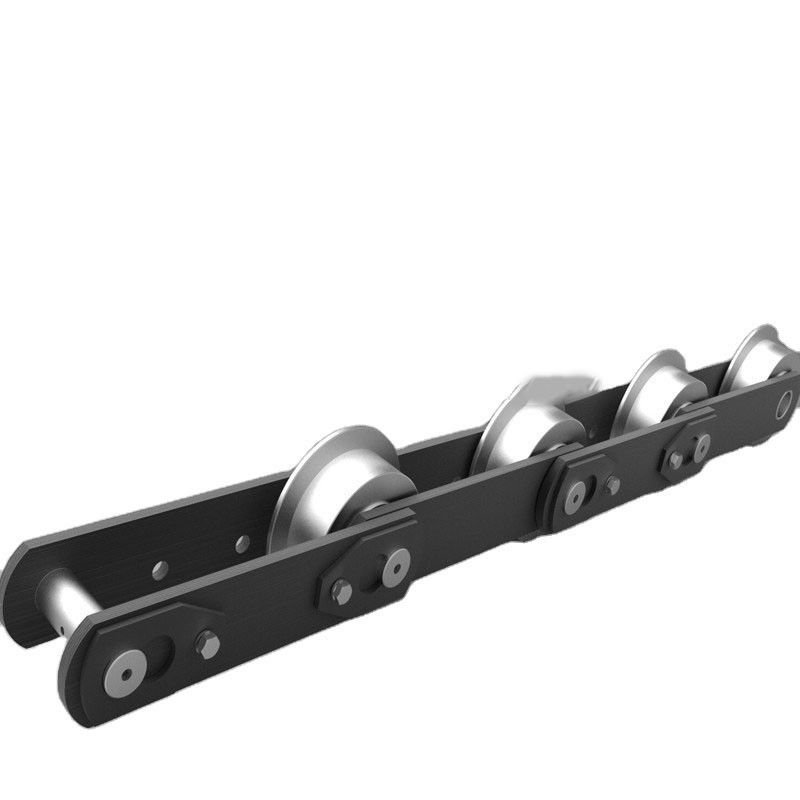

Locking Plate F Flanged Roller Heavy Duty Conveyor Chains
Quick Details:
Place of Origin: Zhejiang, China
Brand Name: UCER
Model Number: Customer design
Structure: Roller Chain
Function: Conveyor Chain
Standard or Nonstandard: Standard

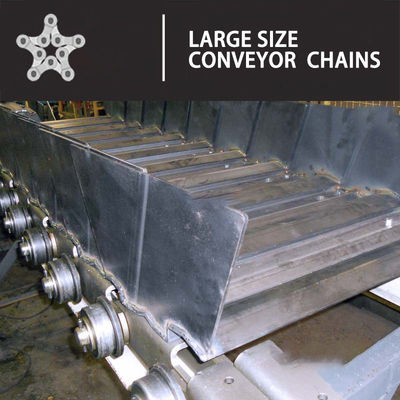

Chain name: Large size apron feeder conveyor chain
Conveyor chain type: Lifting chain with attchments
OEM or not: Could OEM size
Heat treatment: all the chain parts undergo heat treatment
Color: black & gray
Surface treatment: shot peening
Conveyor chain pitch: 320mm
Roller diameter: 150mm
Pin diameter: 40mm
Size&capacity: pls reference to the form
| chain number | pithe P | width between inner pleat b1 | roller diameter d2 | pin diameter d1 | plate height h | plate thickness T | installation dimension L1*L2 | hole diameter d3 |
| mm | ||||||||
| M224-250 | 250 | 42 | 42 | 21 | 62 | 8 | 65*140 | 16 |
| M315-315 | 315 | 56 | 60 | 28 | 80 | 12 | 100*160 | 18 |
| M450-315 | 315 | 56 | 60 | 28 | 80 | 12 | 100*160 | 18 |
| M630-315 | 315 | 65 | 70 | 36 | 105 | 16 | 100*180 | 22 |
| M900-315 | 315 | 74 | 85 | 38.5 | 105 | 16 | 100*200 | 22 |
Packing Delivery Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
