| Brand Name: | UCER |
| Model Number: | A B series |
| MOQ: | 50 Meters |
| Price: | $2.00 - $50.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

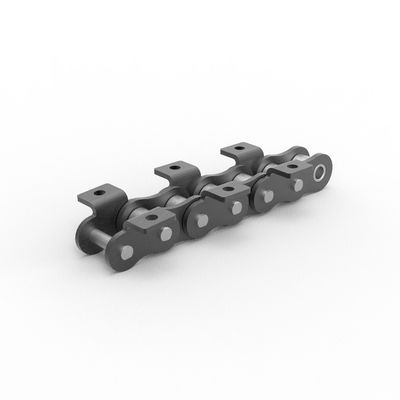

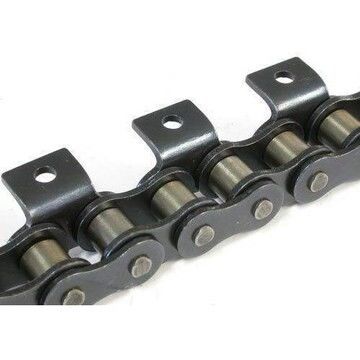

Extended Pin Double Pitch Conveyor Chain Heavy Duty Conveyor Chains
Quick Details:
Finish:Black, Plain
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:A B series
Structure:Roller Chain
Function:Conveyor Chain
Standard or Nonstandard:Standard
roller chain name:short pitch alloy steel conveyor roller chain with attchments
conveyor chain type:chain with attchments
OEM service:accept
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
delivery time:on time
production maker:China manufacturer
material:alloy steel or stainless steel
size&capacity:pls reference to the form
Supply Ability:10000 Meter/Meters per Month
Specification
| DIN/ISO Chain No. | ANSI Chain No. | P | b1 | d2 | L3 | L | Lc |
| mm | |||||||
| 06C | 35 | 9.525 | 4.77 | 3.58 | 9.5 | 20.8 | 21.6 |
| 08A | 40 | 12.7 | 7.85 | 3.96 | 9.5 | 25.1 | 26.2 |
| 10A | 52 | 15.875 | 9.4 | 5.08 | 11.9 | 31.3 | 33.1 |
| 12A | 60 | 19.05 | 12.57 | 5.94 | 14.3 | 38.6 | 40.6 |
| 16A | 80 | 25.4 | 15.75 | 7.92 | 19.1 | 50.3 | 53.3 |
| 20A | 100 | 31.75 | 18.9 | 9.53 | 23.8 | 61.8 | 66.1 |
| 24A | 120 | 38.1 | 25.22 | 11.1 | 28.6 | 76.4 | 80.4 |
| 28A | 140 | 44.45 | 25.22 | 12.7 | 33.3 | 84.8 | 89.4 |
| 32A | 160 | 50.8 | 31.55 | 14.27 | 38.1 | 99.6 | 104.4 |
| 08B | 12.7 | 7.75 | 4.45 | 9.5 | 25.1 | 26.6 | |
| 10B | 15.875 | 9.65 | 5.08 | 11.9 | 30.1 | 31.5 | |
| 12B | 19.05 | 11.68 | 5.72 | 14.3 | 35.4 | 37.1 | |
| 16B | 25.4 | 17.02 | 8.28 | 19.1 | 53 | 54.3 | |
| 20B | 31.75 | 19.56 | 10.19 | 41 | 79.9 | 83.6 | |
| 24B | 38.1 | 25.4 | 14.63 | 50.7 | 101.4 | 105.8 | |
| 28B | 44.45 | 30.99 | 15.9 | 61.9 | 124 | 128.4 | |
| 32B | 50.8 | 30.99 | 17.81 | 64.8 | 126.8 | 131.8 | |
| DIN ISO Chain No. | Pitch | d1 min mm | L1 min mm | L2 max mm | L3 max mm | U2 max mm | U3 max mm | |
| mm | inch | |||||||
| 05B-1 | 8 | 2.31 | 8.6 | 14.3 | 19.9 | 3.9 | 6.7 | |
| 06B-1 | 9.525 | 3/8" | 3.28 | 13.5 | 23.8 | 34 | 6.6 | 11.7 |
| 08B-1 | 12.7 | 1/2" | 4.45 | 17 | 31 | 44 | 8.1 | 15.2 |
| 10B-1 | 15.875 | 5/8" | 5.08 | 19.6 | 36.2 | 52.8 | 9.8 | 18.1 |
| 12B-1 | 19.05 | 3/4" | 5.72 | 22.7 | 42.2 | 61.7 | 11.4 | 21.1 |
| 16B-1 | 25.4 | 1" | 8.28 | 36.1 | 68 | 99.9 | 18 | 34 |
| 20B-1 | 31.75 | 1"1/4 | 10.19 | 43.2 | 79 | 116 | 20.6 | 39.11 |
| 24B-1 | 38.1 | 1"1/2 | 14.63 | 53.4 | 101 | 150 | 26.2 | 50.7 |
| DIN ISO Chain No. | Pitch | d1 min mm | L1 min mm | L2 max mm | L3 max mm | U2 max mm | U3 max mm | |
| mm | inch | |||||||
| 05B-1 | 8 | 2.31 | 8.6 | 14.3 | 19.9 | 7.1 | 12.7 | |
| 06B-1 | 9.525 | 3/8" | 3.28 | 13.5 | 23.8 | 34 | 12.2 | 22.4 |
| 08B-1 | 12.7 | 1/2" | 4.45 | 17 | 31 | 44 | 15.5 | 29.4 |
| 10B-1 | 15.875 | 5/8" | 5.08 | 19.6 | 36.2 | 52.8 | 18.5 | 35.1 |
| 12B-1 | 19.05 | 3/4" | 5.72 | 22.7 | 42.2 | 61.7 | 21.5 | 41 |
| 16B-1 | 25.4 | 1" | 8.28 | 36.1 | 68 | 99.9 | 34.5 | 66.4 |
| 20B-1 | 31.75 | 1"1/4 | 10.19 | 43.2 | 79 | 116 | 39.4 | 76.4 |
| 24B-1 | 38.1 | 1"1/2 | 14.63 | 53.4 | 101 | 150 | 50.4 | 99.4 |
| DIN/ISO Chain No. | ANSI Chain No. | P | b1 | d2 | L3 | L | Lc |
| mm | |||||||
| 06C | 35 | 9.525 | 4.77 | 3.58 | 9.5 | 20.8 | 21.6 |
| 08A | 40 | 12.7 | 7.85 | 3.96 | 9.5 | 25.1 | 26.2 |
| 10A | 52 | 15.875 | 9.4 | 5.08 | 11.9 | 31.3 | 33.1 |
| 12A | 60 | 19.05 | 12.57 | 5.94 | 14.3 | 38.6 | 40.6 |
| 16A | 80 | 25.4 | 15.75 | 7.92 | 19.1 | 50.3 | 53.3 |
| 20A | 100 | 31.75 | 18.9 | 9.53 | 23.8 | 61.8 | 66.1 |
| 24A | 120 | 38.1 | 25.22 | 11.1 | 28.6 | 76.4 | 80.4 |
| 28A | 140 | 44.45 | 25.22 | 12.7 | 33.3 | 84.8 | 89.4 |
| 32A | 160 | 50.8 | 31.55 | 14.27 | 38.1 | 99.6 | 104.4 |
| 08B | 12.7 | 7.75 | 4.45 | 9.5 | 25.1 | 26.6 | |
| 10B | 15.875 | 9.65 | 5.08 | 11.9 | 30.1 | 31.5 | |
| 12B | 19.05 | 11.68 | 5.72 | 14.3 | 35.4 | 37.1 | |
| 16B | 25.4 | 17.02 | 8.28 | 19.1 | 53 | 54.3 | |
Packing Delivery Shipping
Packaging Details:
Packing: a conveyor chain with attachment + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
Delivery Details:
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
