| Brand Name: | UCER |
| MOQ: | 100pcs |
| Price: | $1.00 - $30.00/pcs |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, , D/P, CAD |

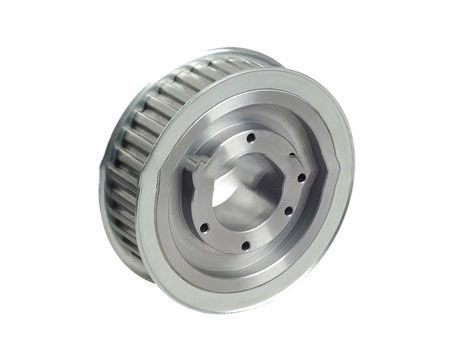

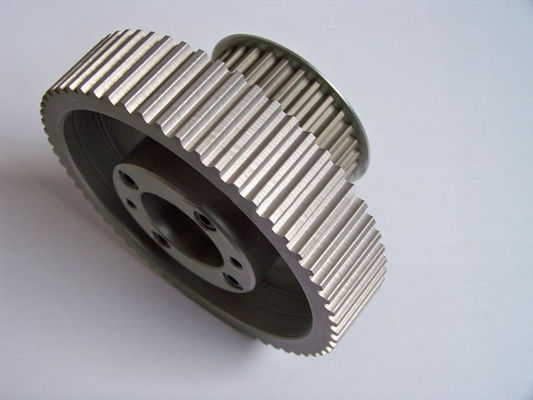

Stainless Steel Pulley Synchronous Pulley Chain Driven Sprockets
Quick Details
Applicable Industries: Garment Shops, Machinery Repair Shops, Restaurant, Food Shop, Energy & Mining
Type: TIMING
Material: stainless steel
Place of Origin: Zhejiang, China
Brand Name: UCER
Name: timing belt pulley
Customized: For OEM/ODM brand
Main market: Southeast Asia,American,South American
Tooth type: customized
Product description
| Teeth No. | Pressure Angle(deg.) | Pitch Dia.Dp | Outside Dia.Do | Type | Bore:D | Hub | Wt(APP)(Lbs) | ||
| Stock | Max | d | P | ||||||
| 11 | 14 1/2 | 4000 #◎ | 4.666 | A | 1 5/16 | 2 | 12 | ||
| 12 | 14 1/2 | 4000 ◎ | 4.666 | A | 1 5/16 | 2 | 11 | ||
| 13 | 14 1/2 | 4.333 | 5 | A | 1 5/16 | 2 1/4 | 10.7 | ||
| 14 | 14 1/2 | 4.667 | 5.333 | A | 1 5/16 | 2 3/8 | 12.8 | ||
| 15 | 14 1/2 | 5 | 5.666 | A | 1 5/16 | 2 3/4 | 14.8 | ||
| 16 | 14 1/2 | 5.333 | A | 1 5/16 | 2 13/16 | 17 | |||
| 18 | 14 1/2 | 6 | 6.666 | A | 1 5/16 | 2 1/4 | 22 | ||
| 20 | 14 1/2 | 6.667 | 7.333 | A | 1 7/16 | 3 5/8 | 27.4 | ||
| 21 | 14 1/2 | 7 | 7.666 | A | 1 7/16 | 3 7/8 | 30.7 | ||
| 24 | 14 1/2 | 8 | 8.666 | B | 1 7/16 | 3 1/4 | 5 1/2 | 1 1/4 | 48.2 |
| 30 | 14 1/2 | 10 | 70.666 | B | 1 9/16 | 3 7/8 | 6 1/4 | 1 1/4 | 74.5 |
| 36 | 14 1/2 | 12 | 12.666 | B | 1 9/16 | 3 1/4 | 6 1/2 | 1 3/4 | 114 |
| 42 | 14 1/2 | 14 | 14.666 | B1 | 1 9/16 | 3 7/8 | 6 1/2 | 1 3/4 | 106 |
| 48 | 14 1/2 | 16 | 16.666 | B1 | 1 9/16 | 4 1/8 | 6 1/2 | 1 3/4 | 120 |
| 54 | 14 1/2 | 18 | 18.666 | B2 | 1 9/16 | 4 1/8 | 6 1/2 | 1 3/4 | 134 |
| 60 | 14 1/2 | 20 | 20.666 | B2 | 1 9/16 | 4 1/8 | 6 1/2 | 1 3/4 | 150 |
| 72 | 14 1/2 | 24 | 24.666 | B2 | 1 9/16 | 4 1/2 | 7 | 1 3/4 | 180 |
| 84 | 14 1/2 | 28 | 28.666 | B2 | 1 9/16 | 4 1/2 | 7 | 1 3/4 | 215 |
| 96 | 14 1/2 | 32 | 32.666 | B2 | 1 11/16 | 4 1/2 | 7 | 1 3/4 | 264 |
| 108 | 14 1/2 | 36 | 36.666 | B2 | 1 15/16 | 4 1/2 | 7 | 1 3/4 | 305 |
| 120 | 14 1/2 | 40 | 40.666 | B2 | 1 15/16 | 5 | 7 1/2 | 1 3/4 | 367 |
Recommended Maximum Bore With Keyway and Setscrew
# Enlarged Pitch Diameter with Special Form
◎ 4"Face
14 1/2° P.A. will not operate with 20° P.A.
Packing Delivery Shipping
Packaging Details: standard sea worthy package or according to the customers requirements
Port: Shanghai/Ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
