Chain Driven Sprockets
Created with Pixso. ANSI Standard Driven Chain Idler Sprocket Bearing Bore Sprocket

ANSI Standard Driven Chain Idler Sprocket Bearing Bore Sprocket

Brand Name: UCER
MOQ: 50 Meters
Price: $5.00 - $100.00/ Meter
Delivery Time: 35 work days
Payment Terms: L/C, T/T, Western Union
Detail Information
Place of Origin:
CHINA
Packaging Details:
Sprockets + Big plastic bag + Plywood case + Steel Pallets
Supply Ability:
10000 Meters per Month
Highlight:

ANSI Driven Chain Idler Sprocket

,

UCER Chain Idler Sprocket

,

ANSI Standard Bearing Bore Sprocket

Product Description

Standard Driven Chain Idler Sprocket/Bearing Bore Sprocket





Quick Details:

Material: stainless steel

Standard: ANSI

Place of Origin: Zhejiang, China

Brand Name: UCER

Name: Idler Sprockets

Surface treatment: as per customer's requirement

Process: Forging or casting , hobbing

Row: Single row,double row

Color: Silver or black

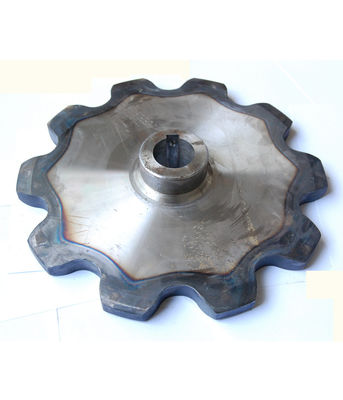

ANSI Standard Driven Chain Idler Sprocket Bearing Bore Sprocket 0

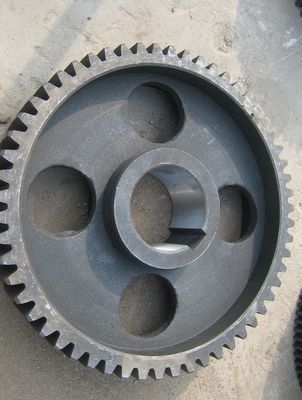

ANSI Standard Driven Chain Idler Sprocket Bearing Bore Sprocket 1



Bronze Bushed Idler Sprockets Dimension:in

Teeth No. Catalog No. Chain Size Do Stock Bore E★ Dim. Wt. Lbs.
20 31E20 35 2.6 1/2" 0.59" 0.46
15 41E15 14.4 2.65 1/2" 0.59" 0.5
15 51E15 50 3.22 1/2" 0.72" 0.7
14 61E14 60-60H 3.74 1/2" 0.81" 0.92

Note:1. Above idiershave have oil impregnated sintered bronze bearings

2. Hardened teeth and muonter on ground steeth and mounter on ground steel joumals Idler rpm to 2500 Radial to 50 pounds

3. ★ Dimension E in min.Space for chain clarance.

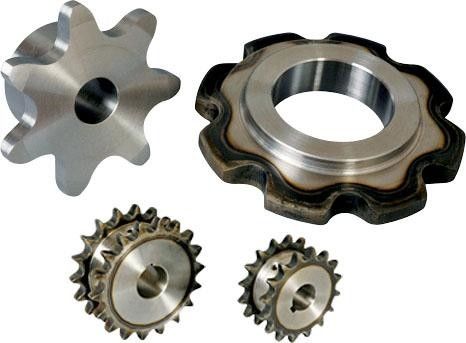

ANSI Standard Driven Chain Idler Sprocket Bearing Bore Sprocket 2



Ball Bearing Idler Sprocket Hardened Teeth-High Speed

Teeth No. Catalog No. Chain Size Do D H h1 Wt. Lbs.
20 35BB20H 35 2.6 0.638 0.72 0.168 0.38
17 40BB17H 40 2.97 0.638 0.72 0.284 0.52
18 40BB18H 40 3.14 0.638 0.72 0.284 0.53
15 50BB15H 50 3.32 0.638 0.72 0.343 0.75
17 50BB17H 50 3.72 0.638 0.72 0.343 0.78
13 60BB13H 60 3.51 0.638 0.72 0.459 0.76
15 60BB15H 60 3.98 0.638 0.72 0.459 1.06
12 60BB12H 80 4.36 0.75 0.61 0.575 1.5

Note 0.638Din.is +0.005

0.000

0.75Din. is +0.005

0.000



Radilload Capacity In lbs. At Varius Speeds

35bb20 Thru 60BB13 RPM 50 100 300 500 750 1000 1200 1800 2400 2600 3000 3600 4000 4500 5000
Load 650 515 357 300 265 240 225 195 179 173 155 156 151 143 140
80BB13 Load 1630 1290 895 755 665 600 565 493 447 434 415 - - - -

Note:Ratings shown above are based on an average bearing life of 2500 hours
