| Brand Name: | UCER |
| MOQ: | 50 Meters |
| Price: | $5.00 - $100.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, , D/P, CAD |

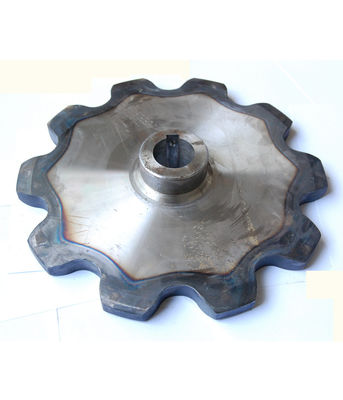

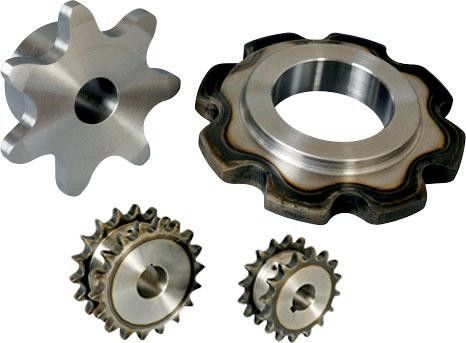

Double Pitch Roller Conveyor Chain Driven Sprockets
Quick Detail
Material: stainless steel
Standard: ANSI
Place of Origin: Zhejiang, China
Brand Name: UCER
Name: Idler Sprockets
Surface treatment: as per customer's requirement
Process: Forging or casting , hobbing
Row: single row,double row
Color: silver or black
Specifications
Bronze Bushed Type
Bronze Bushed Idler Sprockets Dimension:in
| Teeth No. | Catalog No. | Chain Size | Do | Stock Bore | E★ Dim. | Wt. Lbs. |
| 20 | 31E20 | 35 | 2.6 | 1/2" | 0.59" | 0.46 |
| 15 | 41E15 | 14.4 | 2.65 | 1/2" | 0.59" | 0.5 |
| 15 | 51E15 | 50 | 3.22 | 1/2" | 0.72" | 0.7 |
| 14 | 61E14 | 60-60H | 3.74 | 1/2" | 0.81" | 0.92 |
Note:1. Above idiershave have oil impregnated sintered bronze bearings
2. Hardened teeth and muonter on ground steeth and mounter on ground steel joumals Idler rpm to 2500 Radial to 50 pounds
3. ★ Dimension E in min.Space for chain clarance.
Ball Bearing Type
Ball Bearing Idler Sprocket Hardened Teeth-High Speed
| Teeth No. | Catalog No. | Chain Size | Do | D | H | h1 | Wt. Lbs. |
| 20 | 35BB20H | 35 | 2.6 | 0.638 | 0.72 | 0.168 | 0.38 |
| 17 | 40BB17H | 40 | 2.97 | 0.638 | 0.72 | 0.284 | 0.52 |
| 18 | 40BB18H | 40 | 3.14 | 0.638 | 0.72 | 0.284 | 0.53 |
| 15 | 50BB15H | 50 | 3.32 | 0.638 | 0.72 | 0.343 | 0.75 |
| 17 | 50BB17H | 50 | 3.72 | 0.638 | 0.72 | 0.343 | 0.78 |
| 13 | 60BB13H | 60 | 3.51 | 0.638 | 0.72 | 0.459 | 0.76 |
| 15 | 60BB15H | 60 | 3.98 | 0.638 | 0.72 | 0.459 | 1.06 |
| 12 | 60BB12H | 80 | 4.36 | 0.75 | 0.61 | 0.575 | 1.5 |
Note 0.638Din.is +0.005
0.000
0.75Din. is +0.005
0.000
Radilload Capacity In lbs. At Varius Speeds
| 35bb20 Thru 60BB13 | RPM | 50 | 100 | 300 | 500 | 750 | 1000 | 1200 | 1800 | 2400 | 2600 | 3000 | 3600 | 4000 | 4500 | 5000 |
| Load | 650 | 515 | 357 | 300 | 265 | 240 | 225 | 195 | 179 | 173 | 155 | 156 | 151 | 143 | 140 | |
| 80BB13 | Load | 1630 | 1290 | 895 | 755 | 665 | 600 | 565 | 493 | 447 | 434 | 415 | - | - | - | - |
Note:Ratings shown above are based on an average bearing life of 2500 hours
Packing Delivery Shipping
Packaging details : a oil field chain + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
Delivery Details:
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
