Chain Driven Sprockets
Created with Pixso. Double Pitch Roller Conveyor Chain Driven Sprockets

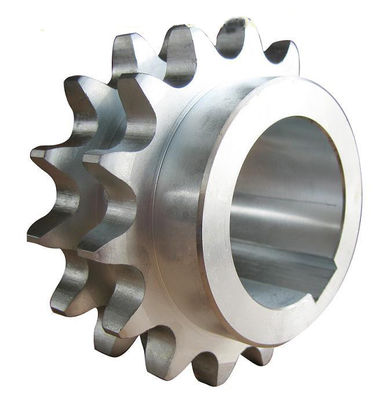

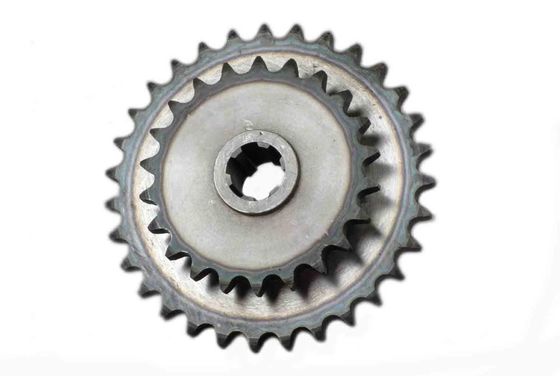

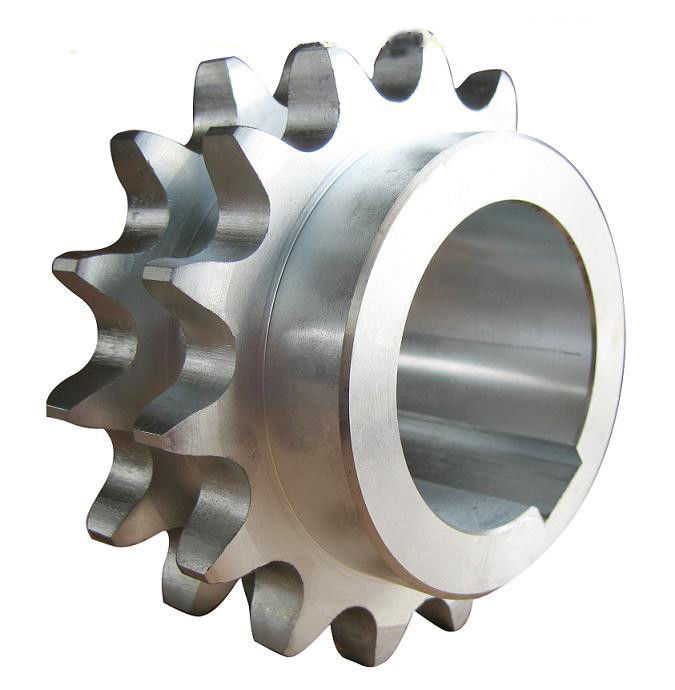

Double Pitch Roller Conveyor Chain Driven Sprockets

Brand Name: UCER
MOQ: 50 Meters
Price: $5.00 - $100.00/ Meter
Delivery Time: 45 work days
Payment Terms: L/C, T/T, , D/P, CAD
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001:2000
Product Name:
Double Pitch Roller Chain Sprockets
Type:
Leaf Chain
Material:
Stainless Steel
Color:
Silver Or Black
OEM Service:
Accept
Process:
Forging Or Casting , Hobbing
Row:
Single Row,double Row
Standard:
ANSI
Packaging Details:
Sprockets + Big plastic bag + Plywood case + Steel Pallets
Supply Ability:
10000 Meters per Month
Highlight:

Double Pitch Chain Driven Sprockets

,

Roller Conveyor Chain Driven Sprockets

,

ISO9001 conveyor chain sprocket

Product Description

Double Pitch Roller Conveyor Chain Driven Sprockets





Quick Detail



Applicable Industries: Garment Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining

Material: stainless steel

Standard: ANSI

Place of Origin: Zhejiang, China

Brand Name: UCER

Name: Double Pitch Roller Chain Sprockets Made in China

Surface treatment: as per customer's requirement

Process: Forging or casting , hobbing

Row: single row,double row

Color: silver or black

Supply Ability: 10000 Meter/Meters per Month



Specifications





Double Pitch Roller Conveyor Chain Driven Sprockets 0

Double Pitch Roller Conveyor Chain Driven Sprockets 1

Double Pitch Roller Conveyor Chain Driven Sprockets 2

Teeth No. Pressure Angle(deg.) Pitch Dia.Dp Outside Dia.Do Type Bore:D Hub   Wt(APP)(Lbs)
        Stock Max d P
11 14 1/2 4000 #◎ 4.666 A 1 5/16 2     12
12 14 1/2 4000 ◎ 4.666 A 1 5/16 2     11
13 14 1/2 4.333 5 A 1 5/16 2 1/4     10.7
14 14 1/2 4.667 5.333 A 1 5/16 2 3/8     12.8
15 14 1/2 5 5.666 A 1 5/16 2 3/4     14.8
16 14 1/2 5.333   A 1 5/16 2 13/16     17
18 14 1/2 6 6.666 A 1 5/16 2 1/4     22
20 14 1/2 6.667 7.333 A 1 7/16 3 5/8     27.4
21 14 1/2 7 7.666 A 1 7/16 3 7/8     30.7
24 14 1/2 8 8.666 B 1 7/16 3 1/4 5 1/2 1 1/4 48.2
30 14 1/2 10 70.666 B 1 9/16 3 7/8 6 1/4 1 1/4 74.5
36 14 1/2 12 12.666 B 1 9/16 3 1/4 6 1/2 1 3/4 114
42 14 1/2 14 14.666 B1 1 9/16 3 7/8 6 1/2 1 3/4 106
48 14 1/2 16 16.666 B1 1 9/16 4 1/8 6 1/2 1 3/4 120
54 14 1/2 18 18.666 B2 1 9/16 4 1/8 6 1/2 1 3/4 134
60 14 1/2 20 20.666 B2 1 9/16 4 1/8 6 1/2 1 3/4 150
72 14 1/2 24 24.666 B2 1 9/16 4 1/2 7 1 3/4 180
84 14 1/2 28 28.666 B2 1 9/16 4 1/2 7 1 3/4 215
96 14 1/2 32 32.666 B2 1 11/16 4 1/2 7 1 3/4 264
108 14 1/2 36 36.666 B2 1 15/16 4 1/2 7 1 3/4 305
120 14 1/2 40 40.666 B2 1 15/16 5 7 1/2 1 3/4 367

Recommended Maximum Bore With Keyway and Setscrew

# Enlarged Pitch Diameter with Special Form

◎ 4"Face

14 1/2° P.A. will not operate with 20° P.A.





Packing Delivery Shipping




Packaging details : a oil field chain + a poly bag + individual box + wooden case

Port: shanghai ,ningbo
Pin Bush Roller Plate Engineer Design Chain Parts Machine Parts 4

Delivery Details:

Usually, we pack car packing chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.


Recommend Products
Pin Bush Roller Plate Engineer Design Chain Parts Machine Parts 5



Our Service

1. UCER chain supply OEM/ODM service.

2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.

Welded Plate Paver Load Scraper Conveyor Chain 6
