| Brand Name: | UCER |
| Model Number: | MS series |
| MOQ: | 50 Meters |
| Price: | $10.00 - $70.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

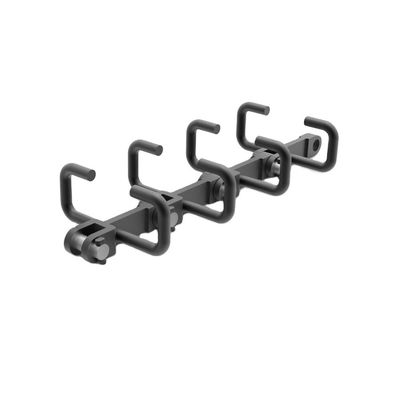

MS Forged Scraper Industrial Cement Scraper Conveyor Chains
Quick Details
Finish:Black, Plain
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:MS MC MZ
Structure:Welded Chain
Function:Conveyor Chain
Standard or Nonstandard:Standard
chain name:industrial cement chains
conveyor chain type:die forging chain
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Cement chain color:black & gray
surface treatment:shot peening
Cement chain pitch:100 125 160mm
manufacturer or not:manufacturer
packaging:wooden case
size&capacity:pls reference to the form
Specification
| Chain NO. | Pitch | Pin diameter | Plate height | Plate thickness | Chain center distance | Width between inner plate | Plate radius | Attachment size | Tensile strength | Notes | ||||
| p | d1 | b | T | C | C1 | R | d2 | P1 | L | h | t | Q | ||
| mm | KN | |||||||||||||
| MS32 | 200 | 25 | 60 | 10 | 130 | 24 | 35 | 20 | 75 | 290 | 150 | / | 315*2 | QB471.06-89 |
| MS40 | 200 | 25 | 60 | 10 | 150 | 24 | 35 | 20 | 75 | 370 | 150 | / | 315*2 | QB471.06-89 |
| MS50 | 250 | 32 | 88 | 20 | 0 | 33 | 44 | 20 | 45 | 460 | 200 | / | 700 | QB471.06-89 |
| MC32 | 200 | 25 | 60 | 10 | 180 | 22 | 35 | 20 | 73 | 300 | 185 | / | 224 | QB471.06-89 |
| MSR32 | 200 | 24 | 60 | 12 | 230 | 26 | / | / | / | / | / | 6 | 320*2 | RTSM32.1BT |
| MSR40 | 200 | 24 | 60 | 12 | 310 | 26 | / | / | / | / | / | 6 | 320*2 | RTSM32.1BT |
Packing Delivery Shipping
Packaging Details:Packing: a conveyor chain + a poly bag + individual box + wooden case
Port:shanghai ,ningbo
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
