Scraper Conveyor Chains
Created with Pixso. Abrasion Resistant Scraper Stacker Reclaimer Chain Large Size

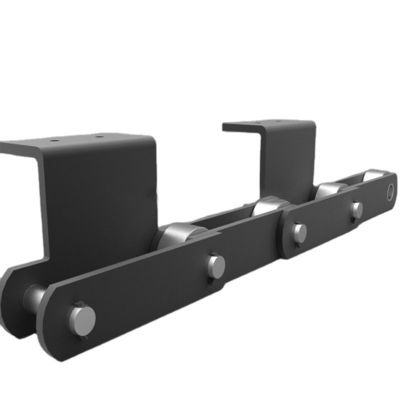

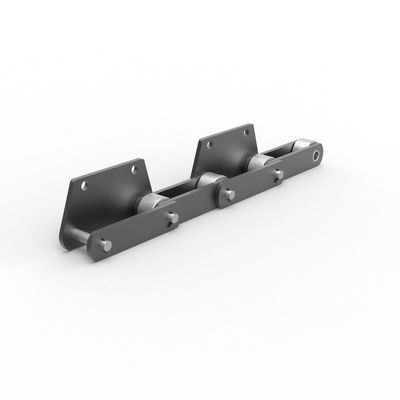

Abrasion Resistant Scraper Stacker Reclaimer Chain Large Size

Brand Name: UCER
Model Number: RMC DLS
MOQ: 50 Meters
Price: $10.00 - $70.00/ Meter
Delivery Time: 45 work days
Payment Terms: L/C, T/T, D/P, CAD
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Product Name:
Heat And Abrasion Resistant Scrapper Stacker-Reclaimer Chain
Color:
Black & Gray
OEM Or Not:
Could OEM Size
Conveyor Chain Type:
Large Size Conveyor Chain
Chain Plate Material:
C45
Surface Treatment:
Shot Peening
Function:
Conveyor Chain
Standard Or Nonstandard:
Standard
Packaging Details:
a conveyor chain + a poly bag + individual box + wooden case
Supply Ability:
10000 Meters per Month
Highlight:

Scraper Stacker Reclaimer Chain

,

OEM Stacker Reclaimer Chain

,

C45 large size Conveyor Chains

Product Description

Heat And Abrasion Resistant Scrapper Stacker-Reclaimer Chain



Quick Details



Finish:Black, Plain

Place of Origin:Zhejiang, China

Brand Name:UCER

Model Number:could OEM

Structure:Roller Chain

Function:Conveyor Chain

Standard or Nonstandard:Standard

conveyor chains name:conveyor chain for bucket-wheel stacker reclaimer

conveyor chain type:large size conveyor chain

OEM or not:Could OEM size

heat treatment:all the chain parts undergo heat treatment

Color:black & gray

surface treatment:shot peening

Specification:Customized

chain plate material:C45

packaging:standard

size&capacity:pls reference to the form





Specification



Abrasion Resistant Scraper Stacker Reclaimer Chain Large Size 0



Abrasion Resistant Scraper Stacker Reclaimer Chain Large Size 1



DIN ISO Chain No. Pitch mm b1 mm d1 max mm h1 mm T mm d2 mm b2 mm d4 mm f mm h2 mm L mm U.T.S KN A.T.S KN q ≈ kg/m
RMC15491 101.6 50.4 38.1 44.5 9.5 17.5 108 14.2 134.9 41.4 44.5 290 348 22.524



Abrasion Resistant Scraper Stacker Reclaimer Chain Large Size 2





DIN ISO Chain No. Pitch mm b1 mm d1 max mm h1 mm T mm d2 mm b2 mm h mm k mm U.T.S KN A.T.S KN q ≈ kg/m
RMC15517 78.1 37.8 31.75 38.1 9.5 15.88 93.4 63.55 12.5 266.7 320.04 13.191
RMC15582 101.6 50.4 38.1 44.5 12.7 17.5 121 79.35 16.5 355.6 426.72 57.75
RMC15126 152.4 76.2 69.85 63.5 12.7 25.4 149 120.6 20.6 622.3 746.76 42.98





Abrasion Resistant Scraper Stacker Reclaimer Chain Large Size 3





DIN ISO Chain No. Pitch b1 mm d1 max mm h1 mm T mm d2 mm b2 mm d4 mm f mm h2 mm L mm U.T.S KN A.T.S KN
  mm inch
RMC15125 101.6 4" 50.8 41.25 44.5 8 19 101.8 11.9 119.1 38.1 44.5 195.6 234.72





Abrasion Resistant Scraper Stacker Reclaimer Chain Large Size 4



DIN ISO Chain No. Pitch mm b1 mm d1 max mm h1 mm T mm d2 mm b2 mm d4 mm f mm h2 mm L mm U.T.S KN A.T.S KN
RMC15128 152.4 76.2 69.85 63.5 12.7 25.4 149 20.6 184.2 47.7 63.5 622.3 746.76


Packing Delivery Shipping



Packaging Details:Packing:a conveyor chain + a poly bag + individual box + wooden case

Port:shanghai ,ningbo


Abrasion Resistant Scraper Stacker Reclaimer Chain Large Size 5



Delivery Details:

Usually, we pack escalator step chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.



Recommend Products
Abrasion Resistant Scraper Stacker Reclaimer Chain Large Size 6


Our Service

1. UCER chain supply OEM/ODM service.

2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.



Abrasion Resistant Scraper Stacker Reclaimer Chain Large Size 7
