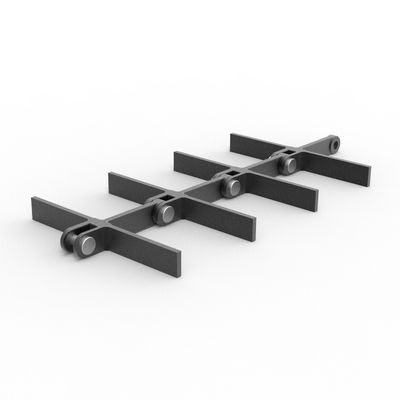

Large Buried Scraper Drop Forging Conveyor Chain
Quick Details
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:DT
Structure:Welded Chain
Function:Conveyor Chain
Material:Iron, 40Cr
Standard or Nonstandard:Standard
chain name:buried scraper conveyer chain
conveyor chain type:sand casting chain
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
process:drop forging
conveyor chain pitch:100 mm
manufacturer or not:manufacturer
packaging:standard
size&capacity:pls reference to the form
Specification
| Chain NO. | Pitch P | Inner link inner width b1 | Pin diameter d1 | Plate height h | Plate thickness T |
| mm | |||||
| MS16 | 100 | 16 | 14 | 27 | 8 |
| MC16 | 100 | 16 | 14 | 27 | 8 |
| MZ16 | 100 | 20 | 17 | 35 | 12 |
| MS20 | 125 | 18 | 17 | 34 | 8 |
| MC20 | 125 | 18 | 17 | 33 | 8 |
| MZ20 | 125 | 26 | 20 | 45 | 15 |
| MS25 | 160 | 25 | 20 | 39 | 13 |
| MC25 | 160 | 25 | 20 | 55 | 18 |
| MZ25 | 160 | 30 | 25 | 64 | 18 |
Packing Delivery Shipping
Packaging Details:Packing: a lifting chain + a poly bag + individual box + wooden case
Port:shanghai ,ningbo
Delivery Details:
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
