Brand Name: | UCER |
MOQ: | 50 Meters |
Price: | $10.00 - $50.00/ Meter |
Delivery Time: | 45 work days |
Payment Terms: | L/C, T/T, D/P, CAD |

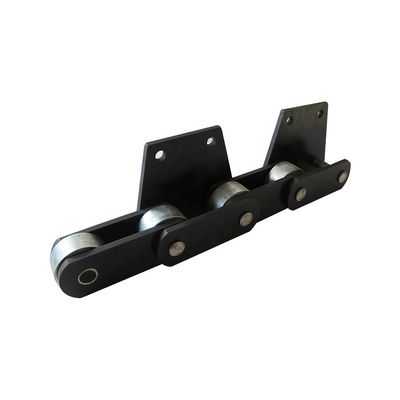

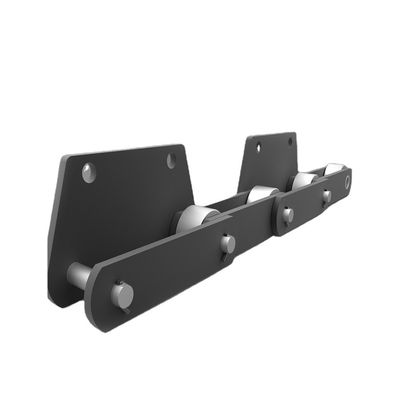

Industry Carbon Steel Cement Large Buried Scraper Conveyor Chain
Quick Details
Finish:Black, Plain
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:FU series
Structure:Welded Chain
Function:Conveyor Chain
Standard or Nonstandard:Standard
chain name:FU scraper conveyor chain
conveyor chain type:with scraper attchments
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
surface treatment:shot peening
conveyor chain pitch:300mm
roller diameter:65mm
pin diameter:32.3mm
size&capacity:pls reference to the form
Material:40Cr
Specification
Chain NO. | Pitch P | Inner link inner width b1 | Roller diameter d2 | Pin diameter d1 | Plate height h | Plate thickness T | Installation dimension L1*L2 | Hole diameter d3 | |
mm | S type | F type | mm | ||||||
SDBF60 | 250 | 40 | 36 | 70 | 18 | 50 | 6 | 85*62 | 18.5 |
SDBF224 | 250 | 44 | 42 | 85 | 21 | 60 | 8 | 85*70 | 18.5 |
SDBF315 | 250 | 54 | 50 | 100 | 25 | 70 | 8 | 85*80 | 18.5 |
SDBF450 | 250 | 62 | 60 | 120 | 30 | 80 | 10 | 85*90 | 18.5 |
SDBF630 | 250 | 68 | 70 | 140 | 36 | 100 | 12 | 85*115 | 24 |
SDBF450 | 315 | 62 | 140 | 30 | 90 | 12 | 105*120 | 18.5 | |
SDBF430 | 315 | 68 | 70 | 36 | 100 | 14 | 85*115 | 24 |
Packing Delivery Shipping
Packaging Details:Packing: a conveyor chain + a poly bag + individual box + wooden case
Port:shanghai ,ningbo
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
