| Brand Name: | UCER |
| Model Number: | LH BL LL FB |
| MOQ: | 50 Meters |
| Price: | $2.00 - $50.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

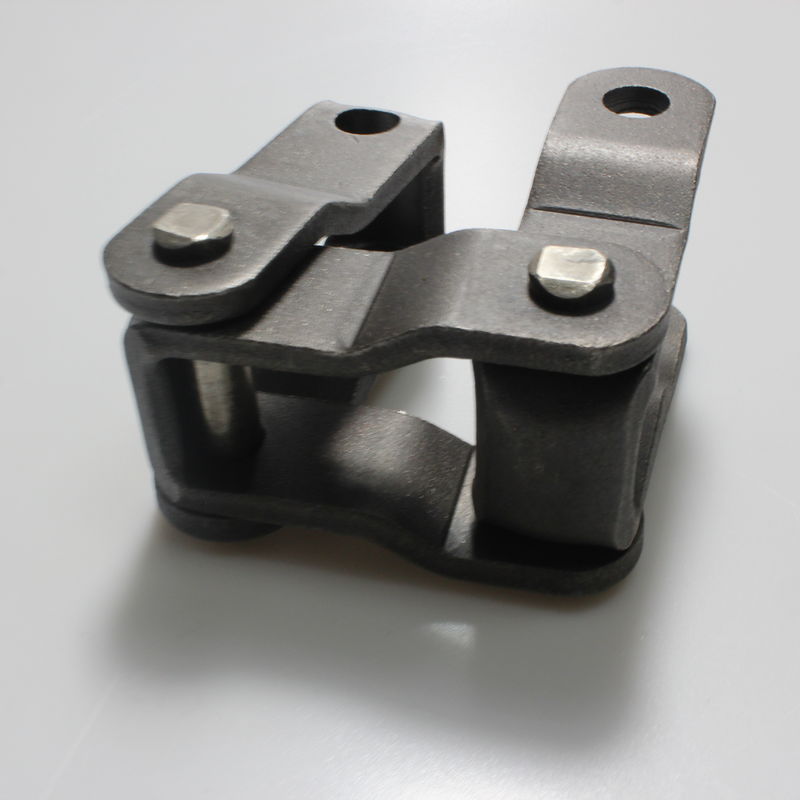

Double Pitch Conveyor Chains With Extended Pins Heavy Duty Conveyor Chains
Quick Details
Place of Origin:Zhejiang, China
Brand Name:Gelin
Model Number:LH BL LL FB
Structure:Roller Chain
Function:Transmission Chain
Material:ALLOY
Standard or Nonstandard:Standard
roller chain name:40Cr heavy duty transmission steel pintle chains
conveyor chain type:chain with attchments
OEM service:accept
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
leaf chain price:best price
delivery time:on time
production maker:China manufacturer
material:alloy steel or stainless steel
size&capacity:pls reference to the form
Supply Ability:10000 Meter/Meters per Month
Specification
| DIN ISO Chain No. | Pitch | c | b | h | T | d | L | U.T.S KN | A.T.S KN | q ≈ kg/m | |
| mm | inch | mm | KN | KN | kg/m | ||||||
| 662 | 42.27 | 30.5 | 23.2 | 18.3 | 3.2 | 7.16 | 41.3 | 37.8 | 45.36 | 1.63 | |
| 667X | 57.15 | 36.5 | 27 | 23.8 | 0.3 | 11.1 | 50 | 66.7 | 80.04 | 2.88 | |
| 667H | 58.75 | 32.9 | 25 | 22.23 | 3.2 | 7.92 | 43.7 | 42.26 | 50.712 | 1.87 | |
| 667J | 57.15 | 2"1/4 | 36.5 | 27 | 23.8 | 0.3 | 9.52 | 50 | 62.28 | 74.736 | 2.75 |
| 667K | 57.15 | 2"1/4 | 39.2 | 27.8 | 26.8 | 5.1 | 11.1 | 55.5 | 88.9 | 106.68 | 3.64 |
| 88K | 66.27 | 39.2 | 27.8 | 26.8 | 5.1 | 11.1 | 55.5 | 88.9 | 106.68 | 3.57 | |
| D205 | 31.75 | 14.5 | 9.53 | 11.9 | 2.1 | 5.08 | 21.4 | 12.46 | 14.952 | 0.63 | |
| 662H | 42.27 | 31.3 | 23.2 | 20.4 | 3.6 | 7.16 | 42.9 | 48.9 | 58.68 | 2.039 | |
| 667XH | 57.15 | 2"1/4 | 40.6 | 27.8 | 26.8 | 5.7 | 11.91 | 58.1 | 124.5 | 149.4 | 4.306 |
| D88C | 66.27 | 45.75 | 31.75 | 28.58 | 6.4 | 12.7 | 65.3 | 133 | 159.6 | 5.246 | |
Packing Delivery Shipping
Packaging Details:
Packing: a steel pintle chain + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
Delivery Details:
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
|
|
| Brand Name: | UCER |
| Model Number: | LH BL LL FB |
| MOQ: | 50 Meters |
| Price: | $2.00 - $50.00/ Meter |
| Packaging Details: | a steel pintle chain + a poly bag + individual box + wooden case |
| Payment Terms: | L/C, T/T, D/P, CAD |
Double Pitch Conveyor Chains With Extended Pins Heavy Duty Conveyor Chains
Quick Details
Place of Origin:Zhejiang, China
Brand Name:Gelin
Model Number:LH BL LL FB
Structure:Roller Chain
Function:Transmission Chain
Material:ALLOY
Standard or Nonstandard:Standard
roller chain name:40Cr heavy duty transmission steel pintle chains
conveyor chain type:chain with attchments
OEM service:accept
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
leaf chain price:best price
delivery time:on time
production maker:China manufacturer
material:alloy steel or stainless steel
size&capacity:pls reference to the form
Supply Ability:10000 Meter/Meters per Month
Specification
| DIN ISO Chain No. | Pitch | c | b | h | T | d | L | U.T.S KN | A.T.S KN | q ≈ kg/m | |
| mm | inch | mm | KN | KN | kg/m | ||||||
| 662 | 42.27 | 30.5 | 23.2 | 18.3 | 3.2 | 7.16 | 41.3 | 37.8 | 45.36 | 1.63 | |
| 667X | 57.15 | 36.5 | 27 | 23.8 | 0.3 | 11.1 | 50 | 66.7 | 80.04 | 2.88 | |
| 667H | 58.75 | 32.9 | 25 | 22.23 | 3.2 | 7.92 | 43.7 | 42.26 | 50.712 | 1.87 | |
| 667J | 57.15 | 2"1/4 | 36.5 | 27 | 23.8 | 0.3 | 9.52 | 50 | 62.28 | 74.736 | 2.75 |
| 667K | 57.15 | 2"1/4 | 39.2 | 27.8 | 26.8 | 5.1 | 11.1 | 55.5 | 88.9 | 106.68 | 3.64 |
| 88K | 66.27 | 39.2 | 27.8 | 26.8 | 5.1 | 11.1 | 55.5 | 88.9 | 106.68 | 3.57 | |
| D205 | 31.75 | 14.5 | 9.53 | 11.9 | 2.1 | 5.08 | 21.4 | 12.46 | 14.952 | 0.63 | |
| 662H | 42.27 | 31.3 | 23.2 | 20.4 | 3.6 | 7.16 | 42.9 | 48.9 | 58.68 | 2.039 | |
| 667XH | 57.15 | 2"1/4 | 40.6 | 27.8 | 26.8 | 5.7 | 11.91 | 58.1 | 124.5 | 149.4 | 4.306 |
| D88C | 66.27 | 45.75 | 31.75 | 28.58 | 6.4 | 12.7 | 65.3 | 133 | 159.6 | 5.246 | |
Packing Delivery Shipping
Packaging Details:
Packing: a steel pintle chain + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
Delivery Details:
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
