Cranked Link Chain
Created with Pixso. Steel Industrial Drag Roller Cranked Link Chain Long Pitch

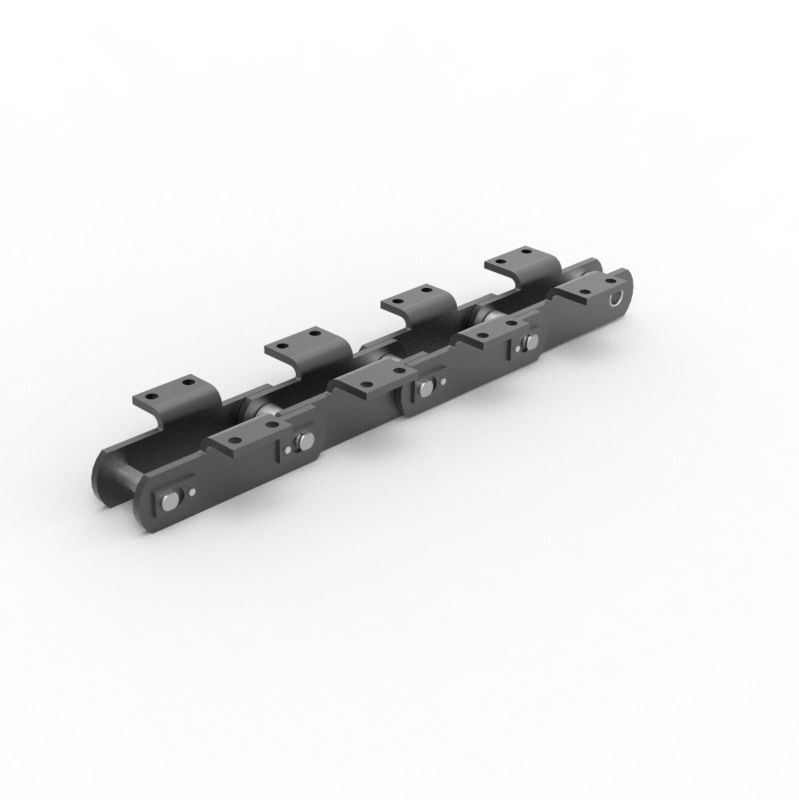

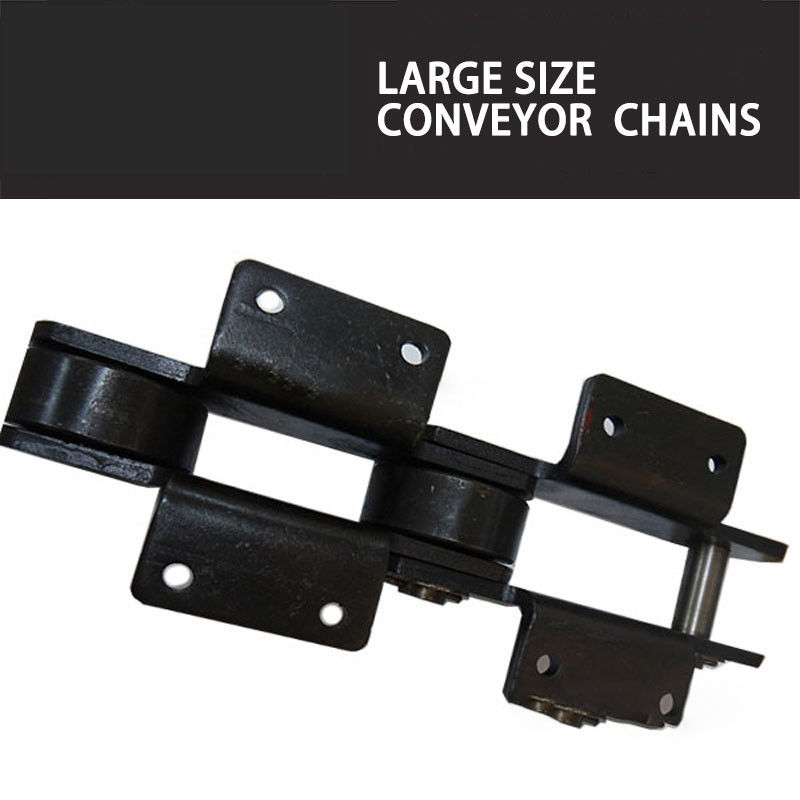

Steel Industrial Drag Roller Cranked Link Chain Long Pitch

Brand Name: UCER
Model Number: JYB-3-800
MOQ: 50 Meters
Price: $7.00 - $99.00/ Meter
Delivery Time: 45 work days
Payment Terms: L/C, T/T, D/P, CAD
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Product Name:
Steel Long Pitch Roller Type Sugar Mill Offset Bar Bagasse Industrial Carrier Conveyor Drag Roller Chain
Material:
ALLOY
Type:
Parking Car Chain, Tranfer Bagasse Of Sugar Factory
Function:
Conveyor Chain
Color:
Metallochrome
Standard Or Nonstandard:
Standard
Transmission Chains Pitch:
100-500 Mm
Pitch:
50mm
Chain Name:
Suger Mill Conveyor Chain
OEM Service:
Accept
Packaging Details:
a double pitch roller chain + a poly bag + individual box + wooden case
Supply Ability:
10000 Meters per Month
Highlight:

Drag Roller Cranked Link Chain

,

Steel Industrial Cranked Link Chain

,

Long Pitch drag conveyor chain

Product Description

Steel Long Pitch Roller Type Sugar Mill Offset Bar Bagasse Industrial Carrier Conveyor Drag Roller Cranked Link Chain





Quick Details:



Standard or Nonstandard: Standard

Type:parking car chain, tranfer bagasse of sugar factory

Material:ALLOY

Tensile Strength:high tensile strength

Place of Origin:Zhejiang, China

Brand Name:UCER or OEM

chain name:suger mill conveyor chain

OEM service:accept

heat treatment:all the chain parts under go heat treatment

Color:metallochrome

transmission chains pitch:100-500 mm

production maker:China manufacturer

material:stainless steel

size&capacity:pls reference to the form

chain price:best price

Supply Ability: 10000 Meter/Meters per Month





Specification



Steel Industrial Drag Roller Cranked Link Chain Long Pitch 0

Steel Industrial Drag Roller Cranked Link Chain Long Pitch 1

Chain NO.   Pitch Roller diameter Bush diameter Pin diameter Between sidebars Sidebar Height Sidebar thickness K2 attachment dimensions Bolt diameter Working Lood Breaking Lood Weight
    P d2 d5 d6 L H S A B C E F D
JKR0904 mm 101.6 50.8 25.4 17.5 50.8 44.5 7.9 59.95 31.75 101.66 88.9 104.9 10 2200kg 18200kg 13.75kg/m
  in 4 2 1 0.69 2 1.75 0.31 2.36 1.25 4 3.5 4.13 0.38 4850lb 40000lb 9.22lb/ft
JKR2124 mm 152.4 69.85 28.71 19.05 38.9 50.8 9.7 76.2 41.14 114.3 111.3 142.7 12.8 2750kg 28636kg 17.6kg/m
  in 6 2.75 1.13 0.75 0.53 2 0.38 3 1.62 4.5 4.38 5.62 0.5 6050lb 6300lb 11.8lb/ft
JKR09060 mm 152.4 69.85 28.7 19.1 38.1 50.8 9.7 76.2 111.3 114.3 111.3 171.45 - 2900kg 27200kg 23.8kg/m
  in 6 2.75 1.13 0.75 1.5 2 0.38 3 1.63 4.5 4.38 6.75 - 6350lb 60000lb 15.96lb/ft
JKR2129 mm 228.6 82.5 33.02 19.05 37.1 57.2 9.5 101.6 44.95 152.4 146 208.7 15.24 3300kg 30000kg 29.65kg/m
  in 9 3.25 1.3 0.75 1.46 2.25 0.38 4 1.77 6 5.75 8.22 0.6 7275lb 66000lb 19.89lb/ft
JKR2315 mm 228.6 76.2 38.1 22.4 43 63.5 9.5 139.7 44.95 177.8 152.4 211 13.97 3500kg 32000kg 25.36kg/m
  in 9 3 1.5 0.88 1.69 2.5 0.38 5.5 1.77 7 6 8.31 0.55 7700lb 70400lb 17lb/ft
JKR09061 mm 152.4 69.85 27.1 19.1 38.1 57.2 9.7 76.2 41.4 114.3 111.3 165.1 12.7 2900kg 38600kg 25.6kg/m
  in 6 2.75 1.13 0.75 1.5 2.25 0.38 3 1.63 4.5 4.38 6.5 0.5 6350lb 8500lb 17.7lb/ft
JKR2178 mm 152.4 69.85 31.08 22.4 38.9 57.15 9.65 76.2 41.4 114.3 111.3 142.7 12.7 3227kg 38650kg 22.8kg/m
  in 6 2.75 1.25 0.88 1.5 2.25 0.38 3 1.62 4.5 4.38 5.62 0.5 7000lb 8500lb 15.3lb/ft
JKR2800 mm 203.2 88.9 38.1 25.4 45.97 69.85 12.7 82.5 55.37 127 131.5 183.4 15.74 4454kg 42727kg 39.1kg/m
  in 8 3.5 1.5 1 1.81 2.75 0.5 3.25 2.18 5 5.18 7.22 0.62 9800lb 94000lb 26.2lb/ft
JKR2198 mm 152.4 69.85 38.1 22.4 38.1 57.15 12.7 76.2 41.14 114.6 111.3 152.4 12.7 3480kg 45460kg 27.1kg/m
  in 6 2.75 1.5 0.8 1.5 2.25 0.5 3 1.62 4.5 4.38 6 0.5 8300lb 100000lb 18.21lb/ft
JKR1796 mm 152.4 69.85 38.1 22.4 38.1 57.2 9.7 76.2 44.4 114.3 111.3 165.1 12.7 3480kg 45460kg 25kg/m
  in 6 2.75 1.5 0.87 1.5 2.25 0.38 3 1.63 4.5 4.38 6.5 0.5 8300lb 100000lb 16.77lb/ft
JKR2801 mm 203.1 88.9 38.1 25.4 66.3 69.85 9.7 82.6 60.5 146.1 152.4 187.55 16 5409kg 50900kg 44.7kg/m
  in 8 3.5 1.5 1 2.61 2.75 0.38 3.25 2.38 5.75 6 7.38 0.62 11900lb 112000kg 30lb/ft
JKR09063 mm 152.4 76.2 31.8 23.9 38.1 63.5 9.7 76.2 44.5 114.3 111.3 153.9 12.7 3800kg 63500kg 18.7kg/m
  in 6 3 1.25 0.94 1.5 2.5 0.38 3 1.75 4.5 4.38 6.06 0.5 8300lb 140000lb 20.2lb/ft
JKR2804 mm 203.2 108 47.63 38.1 92.5 88.9 12.7 82.6 69.9 146.1 193.5 237.2 16 11045kg 68200kg 70.1kg/m
  in 8 4.25 1.88 1.5 3.64 3.5 0.5 3.25 2.75 5.75 7.62 9.34 0.62 24300lb 150000lb 47lb/ft
JKR9066 mm 152.4 76.2 38.1 26.9 63.5 60.5 12.7 76.2 42.9 114.3 136.7 187.55 12.7 4230kg 72700kg 40.7kg/m
  in 6 3 1.5 1.06 2.5 2.38 0.5 3 1.69 4.5 5.38 7.38 0.5 9300lb 160000lb 27.3lb/ft
JKR9065 mm 152.4 76.2 38.1 26.9 38.1 60.5 12.7 76.2 42.9 114.3 111.3 165.1 12.7 4230kg 72700kg 40.7kg/m
  in 6 3 1.5 1.06 1.5 2.38 0.5 3 1.69 4.5 4.38 6.5 0.5 9300lb 160000lb 27.3lb/ft





Packing Delivery Shipping

Steel Industrial Drag Roller Cranked Link Chain Long Pitch 2

Delivery Details:

Usually, we pack conveyer chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.
