Cranked Link Chain
Created with Pixso. C2042 Double Side Cranked Link Chain Short Pitch K2 Attachment Chain

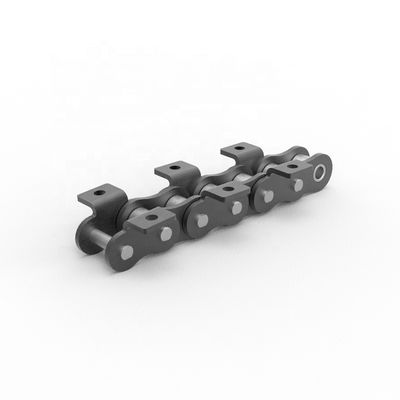

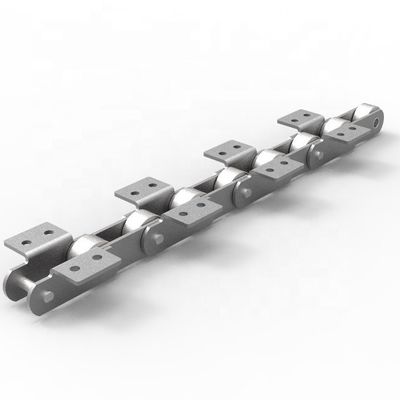

C2042 Double Side Cranked Link Chain Short Pitch K2 Attachment Chain

Brand Name: UCER
Model Number: A/B series
MOQ: 50 Meters
Price: $10.00 - $70.00/ Meter
Delivery Time: 45 work days
Payment Terms: L/C, T/T, D/P, CAD
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Product Name:
Short Pitch Conveyor Roller Chain With K2 Attachment Double Side
Structure:
Roller Chain
Material:
ALLOY, Carbon Steel
Function:
Conveyor Chain
Color:
Black & Gray
Standard Or Nonstandard:
Nonstandard
Conveyor Chain Type:
Chain With Attchments
Attachment Type:
K1 A1 K2 A2 WAS WKS
Roller Chain Name:
Short Pitch Alloy Steel Conveyor Roller Chain With Attchments
OEM Service:
Accept
Packaging Details:
a conveyor roller chain + a poly bag + individual box + wooden case
Supply Ability:
10000 Meters per Month
Highlight:

Double Side Cranked Link Chain

,

C2042 Cranked Link Chain

,

Short Pitch K2 Attachment Chain

Product Description

Short Pitch Conveyor Roller Chain With K2 Attachment Double Side Cranked Link Chain





Quick Details:



Place of Origin:Zhejiang, China

Brand Name:UCER

Model Number:C2042

Structure:Roller Chain

Function:Conveyor Chain

Material:ALLOY, carbon steel

Standard or Nonstandard:Standard

roller chain name:short pitch alloy steel conveyor roller chain with attchments

conveyor chain type:chain with attchments

OEM service:accept

heat treatment:all the chain parts undergo heat treatment

Color:black & gray

attchment type:K1 A1 K2 A2 WAS WKS

delivery time:on time

production maker:China manufacturer

material:alloy steel or stainless steel

size&capacity:pls reference to the form

Supply Ability: 10000 Meter/Meters per Month





Specification



C2042 Double Side Cranked Link Chain Short Pitch K2 Attachment Chain 0



C2042 Double Side Cranked Link Chain Short Pitch K2 Attachment Chain 1



C2042 Double Side Cranked Link Chain Short Pitch K2 Attachment Chain 2

DIN/ISO Chain No. ANSI Chain No. Pitch G C F d4
mm inch
08A 40 12.7 1/2" 9.5 12.7 19.05 3.4
10A 50 15.875 5/8" 12.7 15.9 25.25 5.5
12A 60 19.05 3/4" 15.9 18.3 29.33 5.5
16A 80 25.4 1" 19.1 24.6 34.7 6.8
20A 100 31.75 1"1/4 25.4 37.8 43.3 9.2
08B   12.7 1/2" 9.5 13.35 18.9 4.5
10B   15.875 5/8" 14.3 16.5 22.95 5.3
12B   19.05 3/4" 16 21.45 28.6 6.4
16B   25.4 1" 19.1 23.15 34 6.4
20B   31.75 1"1/4 35 30.5 45.7 9





C2042 Double Side Cranked Link Chain Short Pitch K2 Attachment Chain 3

DIN/ISO Chain No. ANSI Chain No. Pitch G C F d4
mm inch
08A 40 12.7 1/2" 9.5 12.7 19.05 3.4
10A 50 15.875 5/8" 12.7 15.9 25.25 5.5
12A 60 19.05 3/4" 15.9 18.3 29.33 5.5
16A 80 25.4 1" 19.1 24.6 34.7 6.8
20A 100 31.75 1"1/4 25.4 37.8 43.3 9.2
08B   12.7 1/2" 9.5 13.35 18.9 4.5
10B   15.875 5/8" 14.3 16.5 22.95 5.3
12B   19.05 3/4" 16 21.45 28.6 6.4
16B   25.4 1" 19.1 23.15 34 6.4
20B   31.75 1"1/4 35 30.5 45.7 9



C2042 Double Side Cranked Link Chain Short Pitch K2 Attachment Chain 4

DIN ISO Chain No. ANSI Chain No. Pich G L F W h4 d4
mm inch mm
C208A C2040 25.4 1" 19.1 9.5 25.4 39.6 9.1 3.4
C210A C2050 31.75 1"1/4 23.8 11.9 31.8 49 11.1 5.5
C212A C2060 38.1 1"1/2 28.6 14.3 42.8 67.8 14.7 5.5
C216A C2080 50.8 2" 38.1 19.1 55.6 87.8 19.1 6.8
C220A C2100 63.5 2"1/2 47.6 23.8 66.6 107.5 23.4 9.2
C224A C2120 76.2 3" 57.2 28.6 79.3 121.4 27.8 11
C232A C2160 101.6 4" 76.2 38.1 104.7 151.6 36.5 13.1





Packing Delivery Shipping



Packaging Details:Packing: a conveyor roller chain + a poly bag + individual box + wooden case

Port: shanghai ,ningbo

C2042 Double Side Cranked Link Chain Short Pitch K2 Attachment Chain 5

Delivery Details:

Usually, we pack conveyer chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.





Recommend Products

C2042 Double Side Cranked Link Chain Short Pitch K2 Attachment Chain 6





Our Service



1. UCER chain supply OEM/ODM service.

2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.

C2042 Double Side Cranked Link Chain Short Pitch K2 Attachment Chain 7
