| Brand Name: | UCER |
| Model Number: | A series |
| MOQ: | 50 Meters |
| Price: | $2.5.00 - $19.99.00/ Meter |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T, , D/P, CAD |

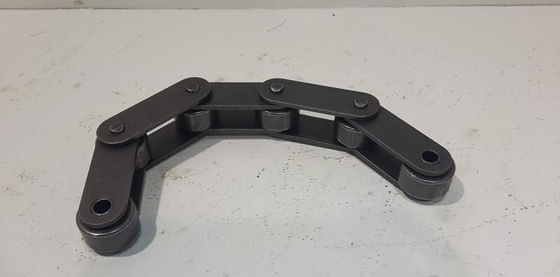

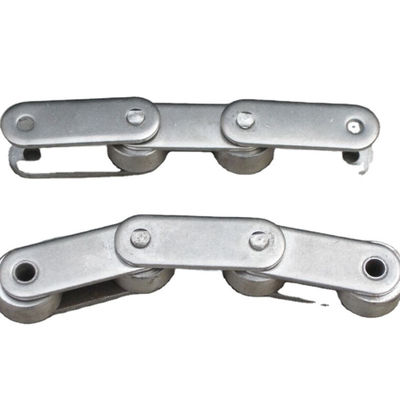

Industrial Short Pitch Double Pitch Stainless Steel Roller Chain Transmission Drive Chains
Quick Detail
Applicable Industries: Machinery Repair Shops, Restaurant, Food Shop, Construction works
Standard or Nonstandard: Nonstandard
Type: Roller Chain
Material: ALLOY
Tensile Strength: 20-50% Higher
Place of Origin: Zhejiang, China
Brand Name: UCER
Name: Short Pitch Precision Roller Chain
Function: Transmisssion
Treatment: Heat Treatment
Certificate: ISO 9001:2000
Color: Nature
Made type: Manufacture
Packing: Wooden Case
| ANSI Chain No. UCER | ISO GB/T 1243 | Pitch | d1 max mm | b1 min mm | d2 max mm | t/T | h2 max mm | Pt mm | L max mm | Lc max mm | U.T.S KN | A.T.S KN | q ≈ kg/m | |
| mm | inch | |||||||||||||
| 25-1 | 04C-1 | 6.35 | 1/4" | 3.3 | 3.1 | 2.31 | 0.8 | 6 | 6.4 | 7.95 | 8.7 | 3.5 | 4.2 | 0.15 |
| 25-2 | 04C-2 | 14.4 | 15.15 | 7 | 8.4 | 0.28 | ||||||||
| 35-1 | 06C-1 | 9.525 | 3/8" | 5.08 | 4.77 | 3.58 | 1.3 | 8.7 | 10.13 | 12.3 | 13.3 | 7.8 | 9.36 | 0.35 |
| 35-2 | 06C-2 | 22.4 | 23.4 | 15.6 | 18.72 | 0.69 | ||||||||
| 35-3 | 06C-3 | 32.5 | 33.5 | 23.4 | 28.08 | 1.02 | ||||||||
| 081 | 12.7 | 1/2" | 7.75 | 3.3 | 3.66 | 1 | 9.91 | 10.2 | 11.7 | 8.2 | 9.84 | 0.29 | ||
| 082 | 2.38 | 3.66 | - | 9.91 | 8.2 | - | 10 | 12 | 0.27 | |||||
| 083 | 4.88 | 4.09 | 1.27 | 10.3 | 12.9 | 14.4 | 12 | 14.4 | 0.43 | |||||
| 084 | 4.88 | 4.09 | 1.8 | 11.15 | 14.8 | 16.3 | 16 | 19.2 | 0.6 | |||||
| 085 | 7.77 | 6.25 | 3.58 | - | 9.91 | 14 | 16 | 6.8 | 8.16 | 0.39 | ||||
| 41-1 | 085 | 12.7 | 1/2" | 7.77 | 6.38 | 3.58 | 1.2 | 9.6 | 14.38 | 13.6 | 14.7 | 6.7 | 8.04 | 0.41 |
| 40-1 | 08A-1 | 12.7 | 1/2" | 7.92 | 7.85 | 3.97 | 1.5 | 12 | 14.38 | 14.6 | 17.9 | 13.8 | 16.56 | 0.66 |
| 40-2 | 08A-2 | 30.8 | 32.3 | 27.6 | 33.12 | 1.3 | ||||||||
| 40-3 | 08A-3 | 45 | 46.7 | 41.4 | 49.68 | 1.96 | ||||||||
| 50-1 | 10A-1 | 15.875 | 5/8" | 10.16 | 9.4 | 5.08 | 2.03 | 15.05 | 18.11 | 20.5 | 21.9 | 21.8 | 26.16 | 1.1 |
| 50-2 | 10A-2 | 38.2 | 40 | 43.6 | 52.32 | 2.14 | ||||||||
| 50-3 | 10A-3 | 56.5 | 58.1 | 65.4 | 78.48 | 3.2 | ||||||||
| 50-4 | 10A-4 | 74.5 | 76.1 | 87.2 | 104.64 | 4.35 | ||||||||
| 60-1 | 12A-1 | 19.05 | 3/4" | 11.91 | 12.57 | 5.94 | 2.42 | 18 | 22.78 | 25.48 | 26.7 | 31.1 | 37.32 | 1.53 |
| 60-2 | 12A-2 | 48.4 | 49.5 | 62.3 | 74.76 | 3 | ||||||||
| 60-3 | 12A-3 | 71.3 | 73.1 | 93.4 | 112.08 | 4.5 | ||||||||
| 60-4 | 12A-4 | 93.8 | 96 | 124.4 | 149.28 | 5.97 | ||||||||
| 60-5 | 12A-5 | 116.6 | 119 | 154 | 184.8 | 7.44 | ||||||||
| 60-6 | 12A-6 | 139.4 | 142.6 | 177.1 | 212.52 | 8.91 | ||||||||
Specifications
Packing Delivery Shipping
Packaging details : a chain + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
Delivery Details:
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
Video
|
|
