Transmission Drive Chain

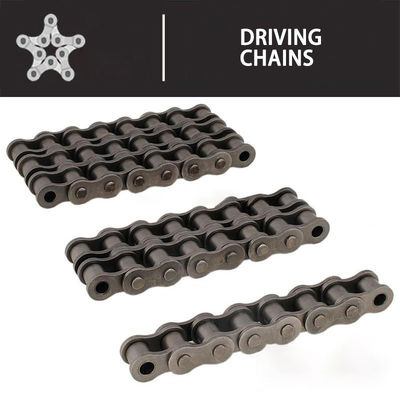

Created with Pixso. Triplex Short Pitch Transmission Drive Chains 20AFT 24B Precision Roller Chain

Triplex Short Pitch Transmission Drive Chains 20AFT 24B Precision Roller Chain

Brand Name: UCER
Model Number: 20A 20AFT 24A 20B 24B 100SLR 16BSLR
MOQ: 50 Meters
Price: $10.00 - $99.00/ Meter
Delivery Time: 45 work days
Payment Terms: L/C, T/T, , D/P, CAD
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Life Span:
Durable
Product Name:
Triplex Short Pitch Precision Roller Chains
Type:
Roller Chain, Driving Chain
Material:
ALLOY
Color:
Black & Gray
OEM Service:
Accept
Tensile Strength:
High Tensile Strength, 55KN
Heat Treatment:
All The Chain Parts Undergo Heat Treatment
Packaging Details:
a chain + a poly bag + individual box + wooden case or as your request
Supply Ability:
10000 Meters per Month
Highlight:

Transmission Drive Chain 20AFT

,

Triplex Short Pitch 24b chain

,

24B Precision Roller Chain

Product Description

Triplex Short Pitch Precision roller chains Transmission Drive Chains

20A 20AFT 24A 20B 24B 100SLR 16BSLR





Specifications :



Technique Treatment
1 Shot Peening 8 Quenching
2 Bluing 9 Tempering
3 Phosphating 10 Oiling
4 Nickel-plated 11 Greasing
5 Zincing 12 Special color
6 Heat Treatment 13 Stain proofing
7 Carburzing 14 Pre-stretched and anti-fatigue


Quick Detail



Standard or Nonstandard: Standard

Type: Roller Chain, Driving Chain

Material: ALLOY

Tensile Strength: high tensile strength, 55KN

Place of Origin: Zhejiang, China

Brand Name: UCER

Chian name: Triplex Short Pitch Precision roller chains

OEM service: accept

Color: black & gray

Heat treatment: all the chain parts undergo heat treatment

Application: Combine Harvester

Transmission drive chain's occasion: industrial roller chain

Life span: durable

Size&capacity: pls reference to the form

Supply Ability: 10000 Meter/Meters per Month

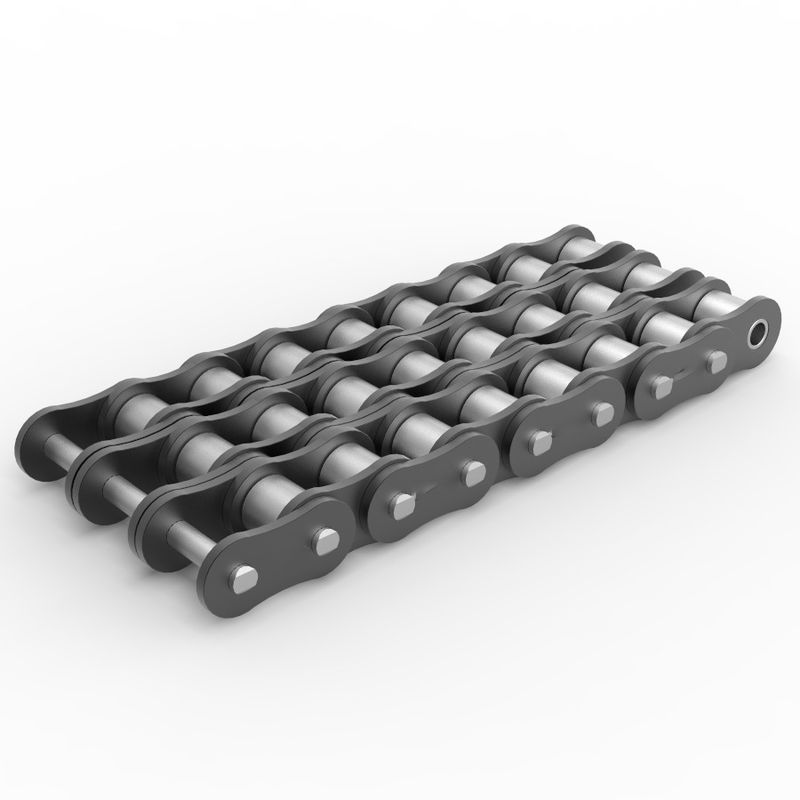

Triplex Short Pitch Transmission Drive Chains 20AFT 24B Precision Roller Chain 0



Chain NO. Pitch Roller diameter Width between inner plates Pin diameter Pin length Inner plate depth Plate thickness Transverse pitch Ultimate tensile strength Average tensile strength Weight per meter
P d1 max b1 min d2 max L max Lc max h2 max T max Pt Q min Q0 q
mm kN/bf KN kg/m
20A-2 31.75 19.05 18.9 9.53 76.4 80.5 30 4 35.76 177/39791 219.4 7.8
20AFT-2 31.75 19.05 18.9 9.53 76.4 80.5 30.1 4 35.76 211/47587 262.5 8.09
20A-3 31.75 19.05 18.9 9.53 112.2 116.3 30 4 35.76 265.5/59686 309.6 11.77
20AFT-3 31.75 19.05 18.9 9.53 112.2 116.3 30.1 4 35.76 330/74186 395 12.1
24A-2 38.1 22.23 25.22 11.1 95.8 99.7 35.7 4.8 45.44 254/57101 314.9 11.7
20B-3 31.75 19.05 19.56 10.19 114.2 117.9 26.4 4.5/3.5 36.45 250/56202 290 10.82
24B-2 38.1 25.4 25.4 14.63 101.7 106.2 33.2 4.5/3.5 48.36 280/62946 319.2 13.4
100SLR-2 31.75 19.05 18.9 9.53 76.4 80.5 30 4 35.76 173.4/39399 190 7.89
16BSLR-2 25.4 15.88 17.02 8.28 68 69.3 21 4.15/3.1 31.88 106/23829 133 5.42



Packing Delivery Shipping


Packaging details : a chain + a poly bag + individual box + wooden case or as your request

Port: shanghai ,ningbo
Pin Bush Roller Plate Engineer Design Chain Parts Machine Parts 4

Delivery Details:

Usually, we pack motorcycle chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.


Recommend Products
Pin Bush Roller Plate Engineer Design Chain Parts Machine Parts 5



Our Service

1. UCER chain supply OEM/ODM service.

2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.

Welded Plate Paver Load Scraper Conveyor Chain 6
