| Brand Name: | UCER |
| Model Number: | 80-1 80-2 80-3 100 120 140 160 200 240 |
| MOQ: | 50 Meters |
| Price: | $8.00 - $99.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, , D/P, CAD |

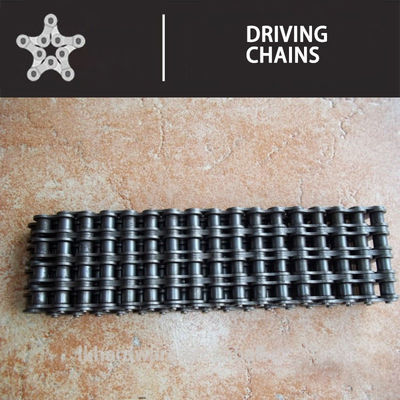

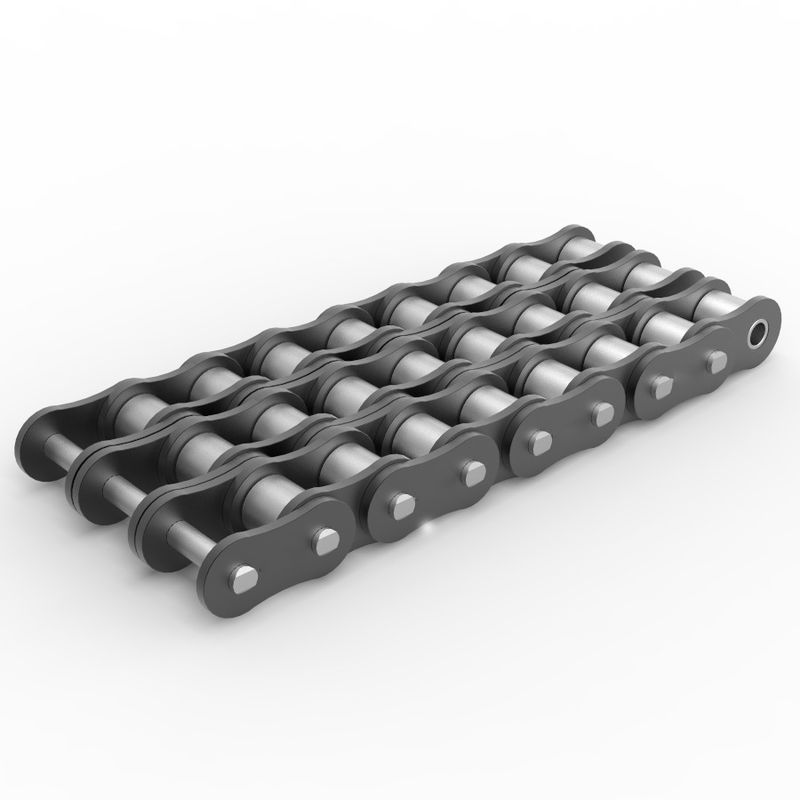

Standard Chain For Petroleum Equipment Oil Field Chains Transmission Drive Chains
80-1 80-2 80-3 100 120 140 160 200 240
Quick Detail
Standard or Nonstandard: Standard
Type: Roller Chain, oil field chains
Material: ALLOY
Tensile Strength: high tensile strength
Place of Origin: Zhejiang, China
Brand Name: UCER
Roller chain name: standard chain for petroleum equipment oil field chains
OEM service: accept
Heat treatment: all the chain parts undergo heat treatment
Color: nature
Transmission chains pitch: 25.40-76.2 mm
Driving chain roller diameter: 15.88-47.63 mm
Production maker: china manufacturer
Specifications :
| Technique Treatment | |||||
| 1 | Shot Peening | 8 | Quenching | ||
| 2 | Bluing | 9 | Tempering | ||
| 3 | Phosphating | 10 | Oiling | ||
| 4 | Nickel-plated | 11 | Greasing | ||
| 5 | Zincing | 12 | Special color | ||
| 6 | Heat Treatment | 13 | Stain proofing | ||
| 7 | Carburzing | 14 | Pre-stretched and anti-fatigue | ||
| DIN ISO Chain No. | ANSI Chain No. | Pitch | d1 max mm | b2 max mm | d2 max mm | h2 max mm | t/T | Pt mm | Lc max mm | U.T.S KN | A.T.S KN | q ≈ kg/m | |
| mm | inch | ||||||||||||
| 80-1 | 16A-1 | 25.4 | 1" | 15.88 | 15.75 | 7.92 | 24.1 | 3.25 | - | 37.55 | 55.6 | 66.72 | 2.6 |
| 80-2 | 16A-2 | 29.29 | 66.8 | 111.2 | 133.44 | 7.8 | |||||||
| 80-3 | 16A-3 | 29.29 | 96.1 | 166.8 | 200.16 | 7.89 | |||||||
| 100-1 | 20A-1 | 31.75 | 1"1/4 | 19.05 | 18.9 | 9.53 | 30.1 | 4 | - | 44.3 | 86.84 | 104.2 | 3.91 |
| 100-2 | 20A-2 | 35.76 | 80.5 | 173.88 | 208.65 | 7.8 | |||||||
| 100-3 | 20A-3 | 35.76 | 116.3 | 260.52 | 312.62 | 11.77 | |||||||
| 120-1 | 24A-1 | 38.1 | 1"1/2 | 22.23 | 25.22 | 11.1 | 36.1 | 4.8 | - | 54.4 | 125.1 | 150.12 | 5.62 |
| 120-2 | 24A-2 | 45.44 | 99.7 | 250.2 | 300.12 | 11.7 | |||||||
| 120-3 | 24A-3 | 45.44 | 145.2 | 375.3 | 450.36 | 17.53 | |||||||
| 140-1 | 28A-1 | 44.45 | 1"3/4 | 25.4 | 25.22 | 12.7 | 42.1 | 5.6 | - | 59 | 170.27 | 204.32 | 7.5 |
| 140-2 | 28A-2 | 48.87 | 107.8 | 340.54 | 408.64 | 15.14 | |||||||
| 140-3 | 28A-3 | 48.87 | 156.8 | 510.81 | 612.97 | 22.2 | |||||||
| 160-1 | 32A-1 | 50.8 | 2" | 28.58 | 31.55 | 14.27 | 48.1 | 6.4 | - | 69.6 | 222.4 | 266.88 | 10.1 |
| 160-2 | 32A-2 | 58.55 | 127.5 | 444.8 | 533.76 | 20.14 | |||||||
| 160-3 | 32A-3 | 58.55 | 186.6 | 667.2 | 800.64 | 30.05 | |||||||
| 200-1 | 40A-1 | 63.5 | 2"1/2 | 39.68 | 37.85 | 19.85 | 60 | 8 | - | 87.2 | 347.41 | 416.89 | 16.15 |
| 200-2 | 40A-2 | 71.55 | 158.8 | 695 | 834 | 32.24 | |||||||
| 200-3 | 40A-3 | 71.55 | 230.4 | 1042.5 | 1251 | 49.03 | |||||||
| 240-1 | 48A-1 | 76.2 | 3" | 47.63 | 47.35 | 23.81 | 72.39 | 9.5 | - | 103 | 500.4 | 600.48 | 24.93 |
| 240-2 | 48A-2 | 87.83 | 190.8 | 1000.8 | 1200.93 | 49.51 | |||||||
| 240-3 | 48A-3 | 87.83 | 278.6 | 1501.2 | 1801.44 | 74.16 | |||||||
Packing Delivery Shipping
Packaging details : a chain + a poly bag + individual box + wooden case or as your request
Port: shanghai ,ningbo
Delivery Details:
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
