More net profit by saving cost!
CDInudstry has developed services with more than 100 customers across the world, saved the cost most up to 20% each year.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | UCER |
| Certification: | ISO9001 |
| Model Number: | A series |
| Minimum Order Quantity: | 50 Meters |
| Price: | $7.00 - $99.00/ Meter |
| Packaging Details: | a heavy duty roller chain + a poly bag + individual box + wooden case |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, , D/P, CAD |
| Supply Ability: | 10000 Meters per Month |
| Roller Chain Name: | Simplex Short Pitch Heavy Duty Roller Chains (A Series) | Chain Type: | Simplex Heavy Duty |
|---|---|---|---|
| Material: | Alloy | Color: | Black & Gray |
| OEM Service: | Accept | Driving Chain Roller Diameter: | 7.95-47.63 Mm |
| Transmission Chains Pitch: | 12.7-76.2 Mm | Tensile Strength: | High Tensile Strength |
| High Light: | 240H Heavy Duty Roller Chains,ANSI 40H Heavy Duty Roller Chains,ANSI 40H Chain A Series |
||

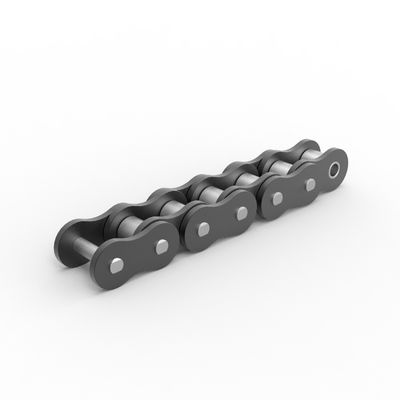

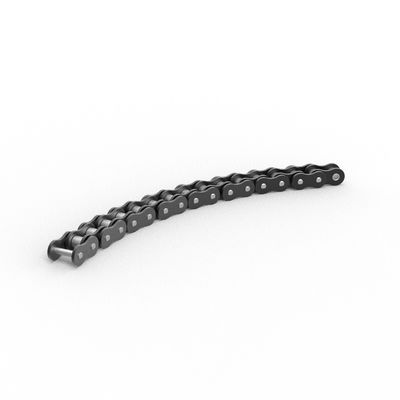

Simplex Short Pitch Heavy Duty Roller Chains (A Series) Transmission Drive Chains
Quick Details
Standard or Nonstandard: Standard
Type: Roller Chain
Material: ALLOY
Tensile Strength: high tensile strength
Place of Origin: Zhejiang, China
Brand Name: UCER
Roller chain name: simplex Short pitch heavy duty roller chains (A series)
OEM service: accept
Heat treatment: all the chain parts undergo heat treatment
Color: black & gray
Transmission chains pitch: 12.7-76.2 mm
Driving chain roller diameter: 7.95-47.63 mm
Production maker: china manufacturer
Material: alloy steel
Size&capacity: pls reference to the form
Specifications
| ANSI Chain No. UCER | ISO GB/T 1243 | Pitch | d1 max mm | b1 min mm | d2 max mm | t/T | h2 max mm | Pt mm | L max mm | Lc max mm | U.T.S KN | A.T.S KN | q ≈ kg/m | |
| mm | inch | |||||||||||||
| 40H-1 | 08AH | 12.7 | 1/2" | 7.95 | 7.85 | 3.96 | 2.03 | 12 | 14.38 | 18.8 | 19.9 | 14.1 | 19.1 | 0.82 |
| 50H-1 | 10AH | 15.875 | 5/8" | 10.16 | 9.4 | 5.05 | 2.42 | 15.09 | 18.11 | 22.1 | 23.4 | 22.2 | 30.2 | 1.25 |
| 60H-1 | 12AH | 19.05 | 3/4" | 11.91 | 12.57 | 5.94 | 3.25 | 18 | 26.11 | 29.2 | 31 | 31.8 | 42.7 | 1.87 |
| 60H-2 | 55.3 | 57.1 | 63.6 | 84.5 | 3.71 | |||||||||
| 60H-3 | 81.4 | 83.2 | 95.4 | 113.9 | 5.54 | |||||||||
| 80H-1 | 16AH | 25.4 | 1" | 15.88 | 15.75 | 7.92 | 4 | 24 | 32.59 | 36.2 | 37.7 | 56.7 | 71.4 | 3.1 |
| 80H-2 | 68.8 | 70.3 | 113.4 | 145.3 | 6.15 | |||||||||
| 80H-3 | 101.4 | 102.9 | 170.1 | 203.5 | 9.42 | |||||||||
| 100H-1 | 20AH | 31.75 | 1"1/4 | 19.05 | 18.9 | 9.53 | 4.8 | 30 | 39.09 | 43.6 | 46.9 | 88.5 | 112.4 | 4.52 |
| 100H-2 | 82.7 | 86 | 177 | 225.9 | 9.03 | |||||||||
| 100H-3 | 121.8 | 125.1 | 265.5 | 314.8 | 12.96 | |||||||||
| 120H-1 | 24AH | 38.1 | 1"1/2 | 22.23 | 25.22 | 11.1 | 5.6 | 35.7 | 48.87 | 53.6 | 57.5 | 127 | 160.9 | 6.6 |
| 120H-2 | 102.4 | 106.4 | 254 | 322.7 | 13.13 | |||||||||
| 120H-3 | 151.2 | 155.2 | 381 | 444.7 | 19.64 | |||||||||
| 140H-1 | 28AH | 44.45 | 1"3/4 | 25.4 | 25.22 | 12.7 | 6.4 | 41 | 52.2 | 57.6 | 62.2 | 172.4 | 217.3 | 8.3 |
| 140H-2 | 109.8 | 114.4 | 344.8 | 437.7 | 16.6 | |||||||||
| 140H-3 | 162 | 166.6 | 507.2 | 598.4 | 24.9 | |||||||||
| 160H-1 | 32AH | 50.8 | 2" | 28.58 | 31.55 | 14.27 | 7.2 | 47.8 | 61.9 | 68.24 | 73 | 226.8 | 285.8 | 10.3 |
| 160H-2 | 130.1 | 134.9 | 453.6 | 571.6 | 20.2 | |||||||||
| 160H-3 | 192 | 196.8 | 680.4 | 787.3 | 30.1 | |||||||||
| 180H-1 | 36AH | 57.15 | 2"1/4 | 35.71 | 35.48 | 17.46 | 8 | 54.31 | 69.16 | 72.7 | 77.1 | 280.2 | 336.24 | 13.95 |
| 180H-2 | 138.5 | 142.9 | 560.4 | 672.48 | 27.62 | |||||||||
| 180H-3 | 204.4 | 208.8 | 840.6 | 1008.72 | 41.29 | |||||||||
| 200H-1 | 40AH | 63.5 | 2"1/2 | 39.68 | 37.85 | 19.85 | 9.5 | 60 | 78.31 | 86.6 | 93.5 | 353.8 | 444.5 | 19.16 |
| 200H-2 | 164.9 | 171.8 | 707.6 | 894.9 | 38.11 | |||||||||
| 200H-3 | 243.2 | 250.1 | 1061.4 | 1228.2 | 57.06 | |||||||||
| 240H-1 | 48AH | 76.2 | 3" | 47.63 | 47.35 | 23.8 | 12.8 | 72.38 | 101.22 | 99 | 106 | 500.4 | 600.48 | 24.25 |
| 240H-2 | 188.3 | 195.3 | 1000.8 | 1200.96 | 48.13 | |||||||||
| 240H-3 | 276.1 | 283.1 | 1501.3 | 1801.56 | 72.01 | |||||||||
Packing Delivery Shipping
Packaging details : a heavy duty roller chain + a poly bag + individual box + wooden case
Delivery Details:
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
