| Brand Name: | UCER |
| Model Number: | A series |
| MOQ: | 50 Meters |
| Price: | $7.00 - $99.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, , D/P, CAD |

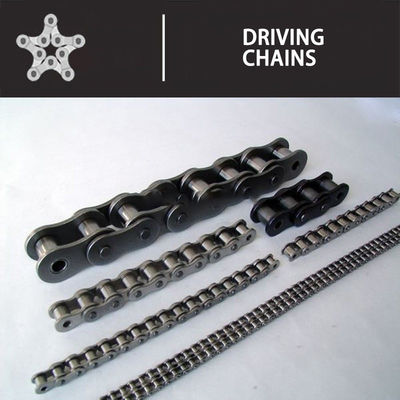

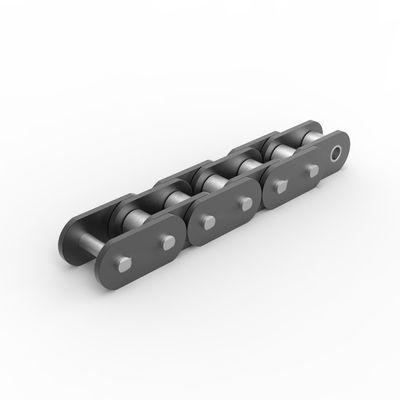

Simplex Duplex Triplex Alloy Steel Short Pitch Precision Roller Chains (A Series) Transmission Drive Chains
Quick Details
Standard or Nonstandard: Standard
Type: Roller Chain, simplex Driving Chain
Material: ALLOY
Tensile Strength: high tensile strength
Place of Origin: Zhejiang, China
Brand Name: UCER
Roller chain name: simplex Short pitch precision roller chain(A series)
OEM service: accept
Heat treatment: all the chain parts undergo heat treatment
Color: black & gray
Transmission chains pitch: 6.35-19.05 mm
Driving chain roller diameter: 3.30-11.91 mm
Production maker: china manufacturer
Material: alloy steel
Size&capacity: pls reference to the form
Specification
| ANSI Chain No. UCER | ISO GB/T 1243 | Pitch | d1 max mm | b1 min mm | d2 max mm | t/T | h2 max mm | Pt mm | L max mm | Lc max mm | U.T.S KN | A.T.S KN | q ≈ kg/m | |
| mm | inch | |||||||||||||
| 25-1 | 04C-1 | 6.35 | 1/4" | 3.3 | 3.1 | 2.31 | 0.8 | 6 | 6.4 | 7.95 | 8.7 | 3.5 | 4.2 | 0.15 |
| 25-2 | 04C-2 | 14.4 | 15.15 | 7 | 8.4 | 0.28 | ||||||||
| 35-1 | 06C-1 | 9.525 | 3/8" | 5.08 | 4.77 | 3.58 | 1.3 | 8.7 | 10.13 | 12.3 | 13.3 | 7.8 | 9.36 | 0.35 |
| 35-2 | 06C-2 | 22.4 | 23.4 | 15.6 | 18.72 | 0.69 | ||||||||
| 35-3 | 06C-3 | 32.5 | 33.5 | 23.4 | 28.08 | 1.02 | ||||||||
| 081 | 12.7 | 1/2" | 7.75 | 3.3 | 3.66 | 1 | 9.91 | 10.2 | 11.7 | 8.2 | 9.84 | 0.29 | ||
| 082 | 2.38 | 3.66 | - | 9.91 | 8.2 | - | 10 | 12 | 0.27 | |||||
| 083 | 4.88 | 4.09 | 1.27 | 10.3 | 12.9 | 14.4 | 12 | 14.4 | 0.43 | |||||
| 084 | 4.88 | 4.09 | 1.8 | 11.15 | 14.8 | 16.3 | 16 | 19.2 | 0.6 | |||||
| 085 | 7.77 | 6.25 | 3.58 | - | 9.91 | 14 | 16 | 6.8 | 8.16 | 0.39 | ||||
| 41-1 | 085 | 12.7 | 1/2" | 7.77 | 6.38 | 3.58 | 1.2 | 9.6 | 14.38 | 13.6 | 14.7 | 6.7 | 8.04 | 0.41 |
| 40-1 | 08A-1 | 12.7 | 1/2" | 7.92 | 7.85 | 3.97 | 1.5 | 12 | 14.38 | 14.6 | 17.9 | 13.8 | 16.56 | 0.66 |
| 40-2 | 08A-2 | 30.8 | 32.3 | 27.6 | 33.12 | 1.3 | ||||||||
| 40-3 | 08A-3 | 45 | 46.7 | 41.4 | 49.68 | 1.96 | ||||||||
| 50-1 | 10A-1 | 15.875 | 5/8" | 10.16 | 9.4 | 5.08 | 2.03 | 15.05 | 18.11 | 20.5 | 21.9 | 21.8 | 26.16 | 1.1 |
| 50-2 | 10A-2 | 38.2 | 40 | 43.6 | 52.32 | 2.14 | ||||||||
| 50-3 | 10A-3 | 56.5 | 58.1 | 65.4 | 78.48 | 3.2 | ||||||||
| 50-4 | 10A-4 | 74.5 | 76.1 | 87.2 | 104.64 | 4.35 | ||||||||
| 60-1 | 12A-1 | 19.05 | 3/4" | 11.91 | 12.57 | 5.94 | 2.42 | 18 | 22.78 | 25.48 | 26.7 | 31.1 | 37.32 | 1.53 |
| 60-2 | 12A-2 | 48.4 | 49.5 | 62.3 | 74.76 | 3 | ||||||||
| 60-3 | 12A-3 | 71.3 | 73.1 | 93.4 | 112.08 | 4.5 | ||||||||
| 60-4 | 12A-4 | 93.8 | 96 | 124.4 | 149.28 | 5.97 | ||||||||
| 60-5 | 12A-5 | 116.6 | 119 | 154 | 184.8 | 7.44 | ||||||||
| 60-6 | 12A-6 | 139.4 | 142.6 | 177.1 | 212.52 | 8.91 | ||||||||
| 80-1 | 16A | 25.4 | 1" | 15.88 | 15.75 | 7.94 | 3.23 | 23.5 | 29.29 | 32.7 | 34.1 | 55.6 | 66.72 | 2.63 |
| 80-2 | 61.8 | 63.4 | 111.2 | 133.44 | 5.24 | |||||||||
| 80-3 | 91.2 | 94.2 | 166.8 | 200.16 | 7.83 | |||||||||
| 80-4 | 120.8 | 123.5 | 222.4 | 266.88 | 10.42 | |||||||||
| 80-5 | 150.1 | 153 | 275.8 | 330.96 | 13.01 | |||||||||
| 80-6 | 179.4 | 182.5 | 317 | 380.4 | 15.6 | |||||||||
| 100-1 | 20A | 31.75 | 1"1/4 | 19.05 | 18.9 | 9.53 | 4 | 30 | 35.76 | 40 | 43.1 | 86.7 | 104.04 | 4.03 |
| 100-2 | 75.8 | 78.9 | 173.5 | 208.2 | 8.02 | |||||||||
| 100-3 | 110 | 115.3 | 260.2 | 312.24 | 12 | |||||||||
| 100-4 | 147.4 | 151.1 | 346.8 | 416.16 | 15.98 | |||||||||
| 100-5 | 183.2 | 187 | 430 | 516 | 19.96 | |||||||||
| 100-6 | 219 | 223 | 502.8 | 603.36 | 23.94 | |||||||||
| 120-1 | 24A | 38.1 | 1"1/2 | 22.23 | 25.22 | 11.1 | 4.8 | 36.2 | 45.44 | 50.5 | 54 | 124.6 | 149.52 | 5.94 |
| 120-2 | 95.94 | 99 | 249.1 | 298.92 | 11.84 | |||||||||
| 120-3 | 141.4 | 144.9 | 373.7 | 448.44 | 17.69 | |||||||||
| 120-4 | 186.2 | 189.5 | 498.4 | 598.08 | 23.54 | |||||||||
| 120-5 | 232.3 | 235.8 | 618 | 741.6 | 29.39 | |||||||||
| 120-6 | 277.7 | 281.2 | 722.7 | 867.24 | 35.24 | |||||||||
| 140-1 | 28A | 44.45 | 1"3/4 | 25.4 | 25.22 | 12.7 | 5.6 | 42 | 48.87 | 53.5 | 57.8 | 169 | 202.8 | 7.5 |
| 140-2 | 102.5 | 106.7 | 338.1 | 405.72 | 14.89 | |||||||||
| 140-3 | 151.5 | 155.8 | 507.1 | 608.52 | 22.28 | |||||||||
| 140-4 | 200.4 | 204.7 | 676 | 811.2 | 29.67 | |||||||||
| 140-5 | 249.3 | 253.5 | 838.2 | 1005.84 | 37.06 | |||||||||
| 140-6 | 298.1 | 302.4 | 980.2 | 1176.24 | 44.45 | |||||||||
| 160-1 | 32A | 50.8 | 2" | 28.58 | 31.55 | 14.27 | 6.5 | 48.26 | 58.55 | 64.67 | 70.67 | 222.4 | 266.88 | 10.2 |
| 160-2 | 124.02 | 130.02 | 444.8 | 533.76 | 20.25 | |||||||||
| 160-3 | 185.54 | 188.57 | 667.2 | 800.64 | 30.31 | |||||||||
| 160-4 | 241.12 | 247.12 | 889.6 | 1067.52 | 40.35 | |||||||||
| 160-5 | 299.67 | 305.67 | 1103.1 | 1323.72 | 50.4 | |||||||||
| 160-6 | 358.22 | 364.22 | 1289.9 | 1547.88 | 60.45 | |||||||||
| 180-1 | 36A | 57.15 | 2"1/4 | 35.71 | 35.48 | 17.46 | 7.2 | 54.31 | 65.84 | 72.7 | 77.1 | 280.2 | 336.24 | 13.95 |
| 180-2 | 138.5 | 142.9 | 560.5 | 672.6 | 27.62 | |||||||||
| 180-3 | 204.4 | 208.8 | 840.7 | 1008.84 | 41.29 | |||||||||
| 180-4 | 270.2 | 274.6 | 1120.8 | 1344.96 | 54.96 | |||||||||
| 180-5 | 336 | 340.4 | 1389.8 | 1667.76 | 68.63 | |||||||||
| 180-6 | 401.9 | 406.3 | 1625.2 | 1950.24 | 82.3 | |||||||||
| 200-1 | 40A | 63.5 | 2"1/2 | 39.68 | 37.85 | 19.84 | 8.35 | 60.3 | 71.55 | 80 | 87 | 347 | 416.4 | 16.86 |
| 200-2 | 151.6 | 158.6 | 693.9 | 832.68 | 33.42 | |||||||||
| 200-3 | 223.2 | 230 | 1040.9 | 1249.08 | 50.5 | |||||||||
| 200-4 | 294.55 | 301.6 | 1388 | 1665.6 | 66.54 | |||||||||
| 200-5 | 366.1 | 373.1 | 1721.1 | 2065.32 | 83.1 | |||||||||
| 200-6 | 437.65 | 444.7 | 2012.6 | 2415.12 | 99.68 | |||||||||
| 240-1 | 48A | 76.2 | 3" | 47.63 | 47.35 | 23.8 | 10 | 72.38 | 87.93 | 99 | 106 | 500.4 | 600.48 | 24.25 |
| 240-2 | 188.3 | 195.3 | 1000.8 | 1200.96 | 48.13 | |||||||||
| 240-3 | 276.1 | 283.1 | 1501.3 | 1801.56 | 72.01 | |||||||||
| 240-4 | 363.93 | 370.9 | 2001.6 | 2401.92 | 95.89 | |||||||||
| 240-5 | 451.76 | 458.8 | 2482 | 2978.4 | 119.77 | |||||||||
| 240-6 | 539.6 | 547.6 | 2902.3 | 3482.76 | 143.65 | |||||||||
Packing Delivery Shipping
Packaging details : a roller chain + a poly bag + carton + wooden case
Delivery Details:
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
Video
|
|
