| Brand Name: | UCER |
| Model Number: | BSB SB |
| MOQ: | 50 Meters |
| Price: | $1.00 - $50.00/ Meter |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T, , D/P, CAD |

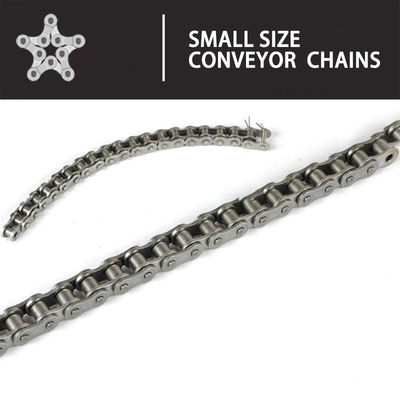

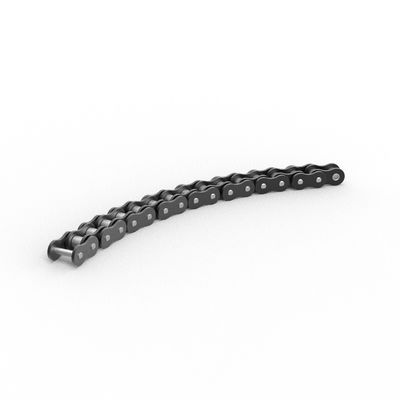

Double Flex Chain Alloy Steel Transmission Side Bow Chain Transmission Drive Chains
Quick Detail
Finish: Black
Place of Origin: Zhejiang, China
Brand Name: UCER
Model Number: BSB SB
Structure: Roller Chain
Function: Conveyor Chain
Standard or Nonstandard: Standard
Roller chain name: alloy steel transmission side bow chain
Conveyor chain type: side bow chain
OEM service: Could OEM size
Heat treatment: all the chain parts undergo heat treatment
Color: black & gray
Pitch: 12.7-25.4 mm
Production maker: China manufacturer
Side bow chan quality: good quality
Size&capacity: pls reference to the form
Specifications
| DIN ISO Chain No. | Pitch | d1 max | b1 min | h | d2 | b2 | R min | U.T.S | A.T.S | q ≈ kg/m | |
| mm | inch | mm | KN | KN | kg/m | ||||||
| 08BSB | 12.7 | 1/2" | 8.51 | 7.75 | 11.8 | 3.94 | 17.4 | 315 | 11.2 | 13.44 | 0.71 |
| 10BSB | 15.875 | 5/8" | 10.16 | 9.65 | 14.6 | 4.37 | 19.7 | 406 | 15 | 18 | 0.73 |
| 40SB | 12.7 | 1/2" | 7.92 | 7.85 | 11.5 | 3.45 | 16.6 | 315 | 9 | 10.8 | 0.57 |
| 50SB | 45.875 | 5/8" | 10.16 | 9.4 | 15 | 4.37 | 21 | 406 | 15 | 18 | 0.98 |
| 60SB | 19.05 | 3/4" | 11.91 | 12.57 | 17.8 | 5.08 | 25.9 | 508 | 22 | 26.88 | 1.47 |
| 80SB | 25.4 | 1" | 15.88 | 15.75 | 23.5 | 7.19 | 34.1 | 711 | 40.9 | 49.08 | 2.4 |
Packing Delivery Shipping
Packaging details : a side bow chain + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
Delivery Details:
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
