| Brand Name: | UCER |
| Model Number: | 16ALT 20ALT 24ALT |
| MOQ: | 50 Meters |
| Price: | $1.00 - $20.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, , D/P, CAD |

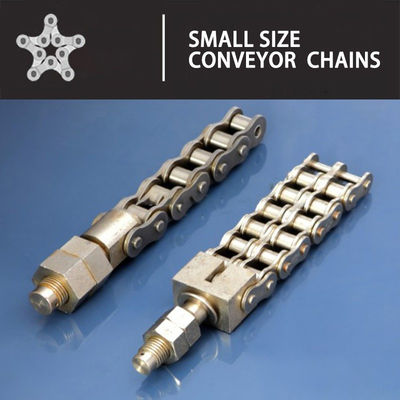

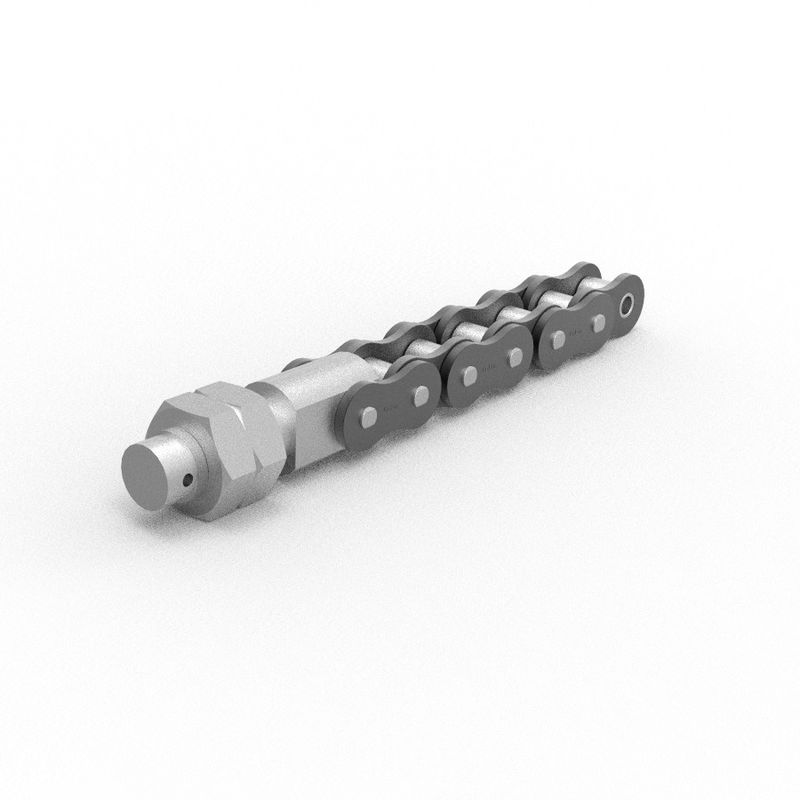

Short Pitch Carbon Steel Lifting Chain For Car Parking Transmission Drive Chains
16ALT 20ALT 24ALT
Quick Detail
Place of Origin: Zhejiang, China
Brand Name: UCER
Model Number: 16ALT 20ALT 24ALT
Structure: Roller Chain
Function: Drag Chain
Material: ALLOY, 40Cr
Standard or Nonstandard: Standard
Roller chain name: lifting chains for car packing
Pin material: 40Cr
OEM service: accept
Heat treatment: all the chain parts undergo heat treatment
Color: black & gray
lifting pitch: 25.40-38.10 mm
Chain pin diameter: 7.92-11.90 mm
Production maker: China manufacturer
Material: alloy steel or stainless steel
Size&capacity: pls reference to the form
Specifications
| Chain NO. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Bolt type | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | M | Q min | Q0 | q | |
| mm | kN/bf | KN | kg/m | |||||||||
| 16ALT-1 | 25.4 | 15.88 | 15.75 | 7.92 | 32.7 | 36.5 | 24 | 3.25 | M20 | 71.55/16261 | 81.8 | 2.6 |
| 16ALT-2 | 25.4 | 15.88 | 15.75 | 7.92 | 62.7 | 65.8 | 24 | 3.25 | M20 | 143.1/32523 | 166.3 | 5.15 |
| 20ALT-1 | 31.75 | 19.05 | 18.9 | 9.53 | 40.4 | 44.7 | 30 | 4 | M24 | 107.85/24511 | 118.6 | 3.91 |
| 20ALT-2 | 31.75 | 19.05 | 18.9 | 9.53 | 76.4 | 80.5 | 30 | 4 | M24 | 215.7/49023 | 234.4 | 7.8 |
| 20ALT-3 | 31.75 | 19.05 | 18.9 | 9.53 | 112.2 | 116.3 | 30 | 4 | M24 | 323.55/73534 | 351.6 | 11.77 |
| 24ALT-1 | 38.1 | 22.23 | 25.22 | 11.1 | 50.3 | 54.3 | 35.7 | 4.8 | M30 | 149.2/330909 | 161.1 | 5.62 |
| 24ALT-2 | 38.1 | 22.23 | 25.22 | 11.1 | 95.8 | 99.7 | 35.7 | 4.8 | M30 | 298.4/67818 | 322.2 | 11.7 |
Packing Delivery Shipping
Packaging details : a car packing chain + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
Delivery Details:
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
Video
|
|
