Transmission Drive Chain
Created with Pixso. Hollow Pin Transmission Drive Chains 40HP 50HP 60HP 80HP Stainless Steel Roller Chain

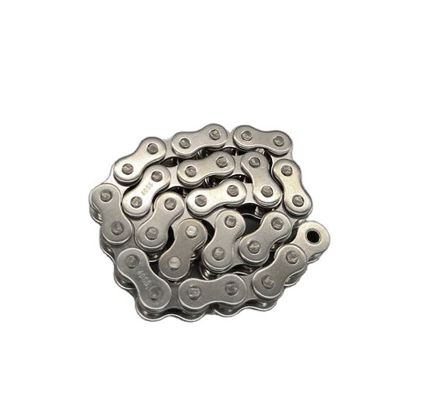

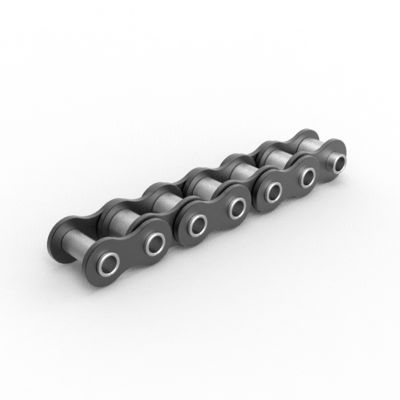

Hollow Pin Transmission Drive Chains 40HP 50HP 60HP 80HP Stainless Steel Roller Chain

Brand Name: UCER
Model Number: 40HP 50HP 60HP 80HP
MOQ: 100 Meters
Price: $8.5/ Meter
Delivery Time: 45 work days
Payment Terms: L/C, T/T, , D/P, CAD
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Product Name:
Short Pitch Stainless Steel Roller Chain Hollow Pin Chain
Type:
Hollow Pin Chain, Hollow Pin
Transmission Chains Pitch:
25.40-101.60 Mm
Roller Chain Name:
Stainless Steel Hollow Pin Chain
Material:
Stainless Steel
Color:
Blight
OEM Service:
Accept
Tensile Strength:
High Tensile Strength
Heat Treatment:
All The Chain Parts Undergo Heat Treatment
Standard Or Nonstandard:
Standard
Packaging Details:
wooden box
Supply Ability:
10000 Meters per Month
Highlight:

Transmission Drive Chains 40HP 50HP

,

OEM 60HP Transmission Drive Chains

,

80HP Stainless Steel Roller Chain

Product Description

Short Pitch Stainless Steel Roller Chain Ss Hollow Pin Chain Transmission Drive Chains

40HP 50HP 60HP 80HP





Quick Detail



Applicable Industries: Food & Beverage Factory, Restaurant, Energy & Mining, Food & Beverage Shops

Type: hollow pin chain, hollow pin

Material: stainless steel

Tensile Strength: high tensile strength

Place of Origin: Zhejiang, China

Brand Name: OEM or UCER

Roller chain name: stainless steel hollow pin chain

OEM service: accept

Heat treatment: all the chain parts undergo heat treatment

Color: blight

Transmission chains pitch: 25.40-101.60 mm

Production maker: China manufacturer

Material: stainless steel

Size&capacity: pls reference to the form

Chain price: best price

Port: shanghai ,ningbo



Specifications



Hollow Pin Transmission Drive Chains 40HP 50HP 60HP 80HP Stainless Steel Roller Chain 0

Hollow Pin Transmission Drive Chains 40HP 50HP 60HP 80HP Stainless Steel Roller Chain 1

DIN ISO Chain No. Pitch b1 min mm d1 max mm d2 max mm L max mm Lc max mm h2 max mm U.T.S KN A.T.S KN q ≈ kg/m Type
mm inch
08B HP 12.7 1/2" 7.75 8.51 6.38 4.5 16.8 18.1 11.8 13.5 14.6 0.6 A
10B HP 15.88 5/8" 9.65 10.16 7.03 5 18.6 20.8 14.3 14.5 15.6 0.83
12B HP 19.05 3/4" 11.68 12.07 8.1 5.75 24 23.6 16.5 18.5 19.5 1.05 A
16B HP 25.4 1" 17.02 15.88 11.1 8.1 36 38 21 50 60.3 2.4 A
*40HP 12.7 1/2" 7.85 7.95 5.63 4 16.5 17.6 12 11 12.2 0.54 B
*50HP 15.88 5/8" 9.4 10.16 7.03 5.3 20.7 21.9 15.09 20 22.1 0.91 B
*60HP 19.05 3/4" 12.7 11.91 8.31 6 25.8 26.4 18 24 26.9 1.29 B
*80HP 25.4 1" 15.75 15.88 11.1 8.03 32.7 33.9 24 52 60.3 2.5 B



Hollow Pin Transmission Drive Chains 40HP 50HP 60HP 80HP Stainless Steel Roller Chain 2

ANSI Standard double pitch hollow pin chain(bush type)

DIN ISO Chain No. Pitch d1 mm b1 mm h2 max mm d2 mm d3 mm t mm L mm U.T.S KN A.T.S KN q ≈ kg/m
mm inch
C2040HP 25.4 1" 7.92 7.85 12 5.63 4 1.52 16.6 6.8 8.16 0.46
C2050HP 31.75 1"1/4 10.16 9.4 15 7.06 5.13 2 20.5 10.6 12.7 0.76
C2060HP 38.1 1"1/2 11.91 12.57 18 8.33 5.97 2.4 25.3 16.1 19.32 1.08
C2080HP 50.8 2" 15.88 15.75 23.6 11.11 8.07 3.2 32.7 26.8 32.16 1.91



Hollow Pin Transmission Drive Chains 40HP 50HP 60HP 80HP Stainless Steel Roller Chain 3

ANSI Standard double pitch hollow pin chain(roller type)

DIN ISO Chain No. Pitch d1 mm b1 mm h2 max mm d2 mm d3 mm t mm L mm U.T.S KN A.T.S KN q ≈ kg/m
mm inch
C2042HP 25.4 1" 15.88 7.85 12 5.63 4 1.52 16.6 6.8 8.16 0.8
C2052HP 31.75 1"1/4 19.05 9.4 15 7.06 5.13 2 20.5 10.6 12.72 1.21
C2062HP 38.1 1"1/2 22.23 12.57 18 8.33 5.97 2.4 25.3 16.1 19.32 1.75
C2082HP 50.8 2" 28.58 15.75 23.6 11.11 8.07 3.2 32.7 26.8 32.16 2.93







Packaging & Delivery



Selling Units: Multiple of 100

Package size per batch: 110X110X90 cm

Gross weight per batch:100.000 kg

1 batch = 100 Meters

Package Type: wooden box


Hollow Pin Transmission Drive Chains 40HP 50HP 60HP 80HP Stainless Steel Roller Chain 4



Hollow Pin Transmission Drive Chains 40HP 50HP 60HP 80HP Stainless Steel Roller Chain 5



To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.



Recommend Products
Pin Bush Roller Plate Engineer Design Chain Parts Machine Parts 5



Our Service

1. UCER chain supply OEM/ODM service.

2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.

Welded Plate Paver Load Scraper Conveyor Chain 6
