| Brand Name: | UCER |
| Model Number: | PC35 PC40 PC50 PC60 |
| MOQ: | 50 Meters |
| Price: | $5.00 - $26.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, , D/P, CAD |

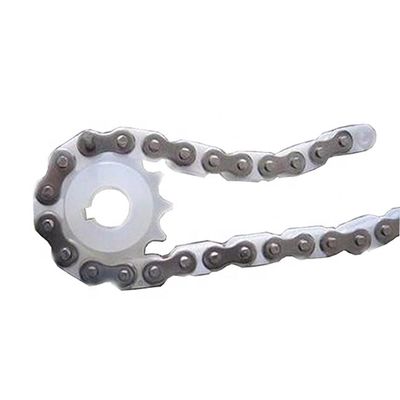

Plastic Roller Transmission Drive Chains
PC35 PC60 plastic roller chain/transmission chiain/driving chain
Supply unit:1.524mtr (5ft)
Main application : Short pitch, low noise, lighweight,corrosion resistance, diamagnetic , widely used in eletronic, food,medicine, chemical
industries
Quick Details
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
Standard or Nonstandard: Standard
Type: Roller Chain
Material: Plastic
Tensile Strength: 1175N-8640N
Place of Origin: Zhejiang, China
Brand Name: UCER
Driving chain name: plastic transmission chain
Driving chain type: roller chain
Main application: medicine, chemistry,food machine
Color: white
Oil field chains pitch: 9.525mm-10.05mm
Production maker: China manufacturer
Roller diameter: 4.67mm-12.60mm
Outer plate material: stainless steel
OEM service: accept
Size&capacity: pls reference to the form
Supply Ability: 10000 Meter/Meters per Month
Specifications
| Chain NO. | pitch | roller diameter | width between inner plates | pin diameter | pin length | inner plate height | inner plate thickness | outer plate hetght | outer plate thickness | max load | |
| P | d1 | W | d2 | L | Lc | H | T2 | h | T1 | max | |
| mm | N | ||||||||||
| PC35 | 9.525 | 4.67 | 5.55 | 3.60 | 14.1 | 16.2 | 9 | 2.2 | 7.8 | 1.2 | 1175 |
| PC40 | 12.70 | 7.85 | 7.94 | 3.98 | 16.6 | 18.8 | 12.0 | 1.5 | 10.4 | 1.5 | 4320 |
| PC50 | 15.857 | 9.4 | 10.16 | 5.09 | 20.8 | 23 | 15.0 | 2.0 | 13.0 | 2.0 | 6720 |
| PC60 | 19.05 | 12.60 | 11.91 | 5.96 | 26.2 | 28.5 | 18.1 | 2.4 | 15.6 | 2.5 | 8640 |
Packing Delivery Shipping
Packaging details : plastic Roller Transmission Drive Chains
Port: shanghai ,ningbo
Delivery Details:
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
