Transmission Drive Chain
Created with Pixso. Heavy Duty Cranked Link Transmission Drive Chains 2512 2814 3315

Heavy Duty Cranked Link Transmission Drive Chains 2512 2814 3315

Brand Name: UCER
Model Number: 2010 2512 2814 3315 3618 4020 4824
MOQ: 50 Meters
Price: $3.00 - $80.00/ Meter
Delivery Time: 35 work days
Payment Terms: L/C, T/T, D/P, CAD
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001
Product Name:
Heavy Duty Cranked-link Transmission Chain
Type:
Roller Chain
OEM Or Not:
Could OEM Size
Color:
Black & Gray
Surface Treatment:
Shot Peening
Heat Treatment::
All The Chain Parts Undergo Heat Treatment
Standard Or Nonstandard:
Standard
Transmission Chain Pitch:
63.5-152.4 Mm
Packaging Details:
a heavy duty cranked link transmission chain + a poly bag + individual box + wooden case
Supply Ability:
10000 Meters per Month
Highlight:

Transmission Drive Chains 2512 2814

,

Transmission Drive Chains 2814 3315

,

2512 2814 Transmission Drive Chains

Product Description

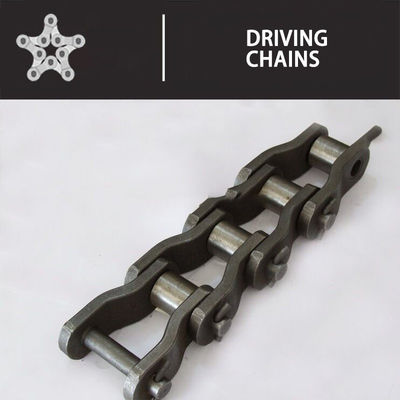

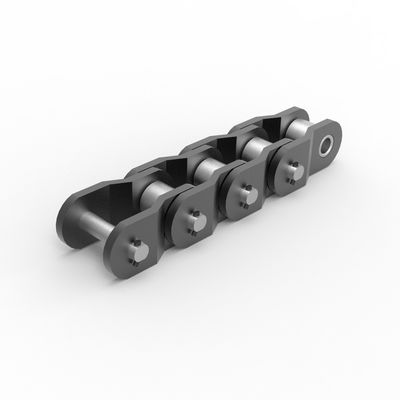

Heavy Duty Cranked Link Transmission Drive Chains

2010 2512 2814 3315 3618 4020 4824



The various large sizes of bending plate roller chains are designed and produced by ourselves. It is for equipments of major steel plant in our country and serialize and maintain for capital cons of major engineering projects, machinery and equipments of city engineering.


 Overview





Quick details



Standard or Nonstandard: Standard

Type: Roller Chain

Material: ALLOY

Place of Origin: Zhejiang, China

Brand Name: UCER

conveyor chain name: heavy duty cranked-link transmission chain

chain type: transmission Chain

OEM service: accept

heat treatment: all the chain parts undergo heat treatment

Color: black & gray

transmission chains pitch: 63.5-152.4 mm

production maker: China manufacturer

material: alloy steel

surface treatment: shoot peening

size&capacity: pls reference to the form

Supply Ability
Supply Ability: 10000 Meter/Meters per Month





Heavy duty cranked-link transmission chain




Heavy Duty Cranked Link Transmission Drive Chains 2512 2814 3315 0Heavy Duty Cranked Link Transmission Drive Chains 2512 2814 3315 1



DIN ISO Chain No. Pitch mm d1 max mm b1 min mm d2 max mm L max mm L2 max mm T max mm U.T.S KN A.T.S KN q ≈ kg/m
2010 63.5 15.9 38.1 31.75 90.7 47.8 7.9 262 314.4 15
2512 77.9 19.08 39.6 41.28 103.4 57 9.7 378 453.6 18
2814 88.9 22.25 37.1 44.45 117.6 60.5 12.7 516 619.2 25
3315 103.45 23.85 49.3 45.24 134.9 63.5 14.2 596 715.2 27
3618 114.3 27.97 52.3 57.15 141.2 79.2 14.2 814 976.8 38
4020 127 31.78 69.9 63.5 167.8 91.9 15.7 1054 1264.8 52
4824 152.4 38.13 76.2 76.2 187.5 104.6 19 1521 1825.2 68





Packing Delivery Shipping


Packaging details : a heavy duty cranked link transmission chain + a poly bag + individual box + wooden case
Heavy Duty Cranked Link Transmission Drive Chains 2512 2814 3315 2

Delivery Details:

Usually, we pack conveyer chain in polybag and box. then put the box in the creat. we offer yellow or white box for free, which marked length and size only, customer also may offer his box sample to us. our crate dimension: 100×75×75cm(800Kg could be packed)or 105×95×75cm(1000Kg could be packed); Usually 20' container could pack about 20-25 ton, but it depend on the requirement of the customs of every country. Packed chain on the pallet directly also optional.
