Inclined Conveyor Belt
Created with Pixso. EP100 EP150 EP200 Inclined Conveyor Belt with 0-90 Degrees Inclination and GB/T7984-2001 Standard for Fertilizer Sand
EP100 EP150 EP200 Inclined Conveyor Belt with 0-90 Degrees Inclination and GB/T7984-2001 Standard for Fertilizer Sand
  • name
  • name

EP100 EP150 EP200 Inclined Conveyor Belt with 0-90 Degrees Inclination and GB/T7984-2001 Standard for Fertilizer Sand

Brand Name: UCER
Model Number: EP200/EP250/EP300
MOQ: 100 meters
Price: Negotiable
Delivery Time: 10-30 days
Payment Terms: L/C,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Enterprise credit rating AAA
Color:
Black
Storage Temperature:
-18℃-40℃
Core Material:
EP100
Inclination Angle:
0-90 Degrees
Model:
EP100/EP150/EP200
Standard:
GB/T7984-2001
The Thickness Of The Upper Cover:
3-6mm
The Thickness Of The Lower Cover Rubber:
1.5-4.5mm
Packaging Details:
Iron packing, iron frame or other
Supply Ability:
10000 per month
Product Description
Fertilizer Sand EP250 EP300 Inclined Conveyor Belts
Fertilizer Sand EP250 EP300 Inclined Conveyor Belts

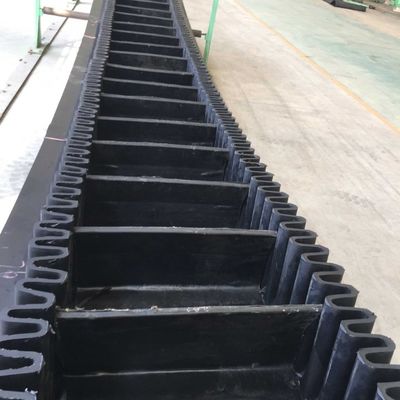

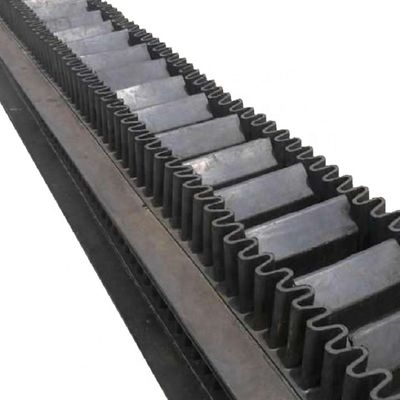

Skirt conveyor belts are available in two configurations: conveyor belts with skirts and no clapboards, and conveyor belts with skirts and clapboards. These belts can continuously convey various bulk materials at inclination angles ranging from 0-90 degrees, offering large conveying angles, wide application range, and compact footprint. Key features include no transfer points, reduced civil construction investment, low maintenance costs, and high conveying capacity, solving conveying challenges that cannot be achieved by ordinary or patterned conveyor belts.
Classification of Skirt Conveyor Belts
Skirt conveyor belts are categorized into two types: conveyor belts with skirts and no clapboards, and conveyor belts with skirts and clapboards. They enable continuous conveyance of various bulk materials at any inclination angle from 0-90 degrees, featuring large conveying angles, extensive application range, and minimal space requirements. The absence of transfer points reduces civil construction investment while providing low maintenance costs and high conveying capacity.
Corrugated sidewall conveyor belts can transport all types of bulk materials—from coal, ore, and sand to fertilizer and grain—in horizontal, inclined, vertical, and variable-angle directions. Material particle size is not limited, ranging from small particles up to 400mm large particles, with conveying capacity from 1 cubic meter/hour to 6000 cubic meters/hour.
Base Band Construction
The base tape consists of four components: upper cover rubber, lower cover rubber, belt core, and lateral rigid layer. The upper cover rubber thickness typically ranges from 3-6mm, while the lower cover rubber thickness is generally 1.5-4.5mm. The core material handles tensile forces and can be made from cotton canvas (CC), nylon canvas (NN), polyester canvas (EP), or steel wire rope (ST). A special reinforcement layer is added to the core to enhance lateral rigidity, known as the lateral rigid layer. Base tape width specifications align with ordinary tape standards and meet GB/T7984-2001 requirements.
Variety Standards and Main Indicators
Ordinary steel cord conveyor belt GB/T9770-2001
Flame-retardant steel cord conveyor belt MT668-1997
General flame-retardant steel cord conveyor belt MT668-1997
Heat-resistant steel cord conveyor belt HG2297-92
Wear-resistant steel cord conveyor belt Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt HG4-846
Cold-resistant steel cord conveyor belt Brittleness temperature -40℃
