Partition conveyor belt NN100/NN150/NN200 Inclined Conveyor Belts

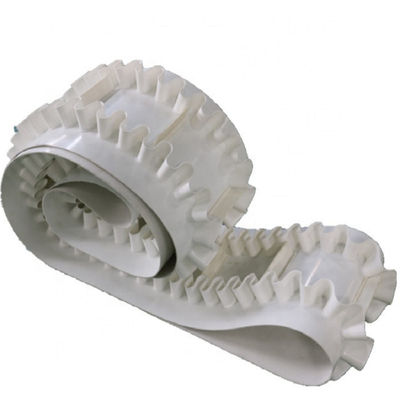

Partition conveyor belts are also called corrugated sidewall belts, large inclination corrugated sidewall belts, skirt belts, and are composed of three parts: base belt, sidewalls, and transverse partitions. The ribs play the role of preventing the material from slipping and falling. In order to easily bypass the drum, the ribs are designed to be corrugated; the corrugated rib conveyor belt diaphragm is used to support the material. In order to achieve large inclination transportation, T-type and TC-type are adopted. The ribs and diaphragms of the corrugated rib conveyor belt are connected to the base belt by secondary vulcanization, and the rib height is 60-500mm.

1. Baseband requirements

The base belt of the partition conveyor belt is required to have a certain degree of tensile strength and wear resistance. Among them, for the partition conveyor belt with empty edges, in order to meet the requirements of the angle, the longitudinal direction of the tape must be flexible, and the transverse direction requires a certain degree of rigidity.

2. Baseband structure

The base tape is composed of four parts: upper cover rubber, lower cover rubber, belt core and lateral rigid layer. The thickness of the upper cover rubber is generally 3-6mm; the thickness of the lower cover rubber is generally 1.5-4.5mm. The core material bears the tensile force. The material can be cotton canvas (CC), nylon canvas (NN), polyester canvas (EP) or Wire rope ST). In order to increase the horizontal rigidity of the base belt, special reinforcing layers are added on and under the core, which are called horizontal rigid layers. The width of the base tape is the same as that of ordinary tape.

<
