Skirt conveyor belts are divided into two types: conveyor belts with skirts and no clapboards and conveyor belts with skirts and clapboards. It can continuously convey all kinds of bulk materials at an arbitrary inclination angle of 0-90 degrees, with a large conveying inclination angle, a wide range of use, and a small area. The features of no transfer point, reduced civil construction investment, low maintenance cost, and large conveying capacity solve the conveying angle that cannot be achieved by ordinary conveyor belts or patterned conveyor belts. The corrugated sidewall conveyor belt can be designed as a complete conveyor system according to the requirements, avoiding the lifting system of intermittent conveying and complex conveying.
1. Skirts and partitions
The skirt and the partition are bonded on the base tape by secondary low-temperature vulcanization.
2. Concept supplement:
With the development of domestic industry, light skirt conveyor belts are gradually used in food, tobacco, medicine, agriculture, electronics and other industries. Light skirt belts are made of PVC, PU and other thermoplastic elastomers welded by high frequency, which is flexible in processing and application. light.
3. Product structure

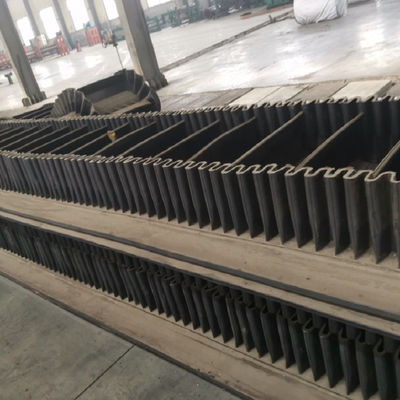

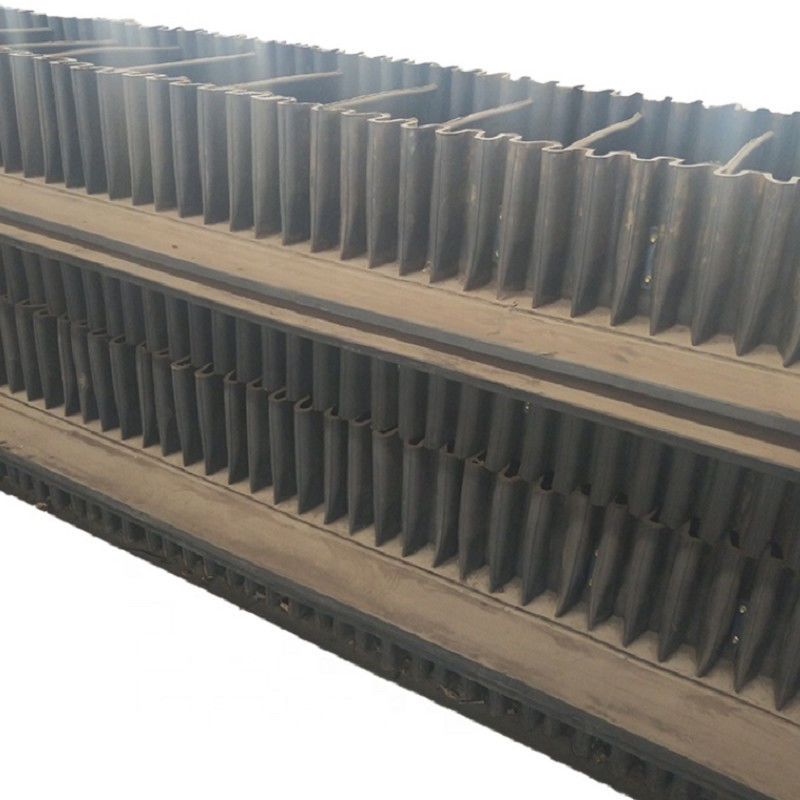

The skirt lifting conveyor belt (corrugated rib conveyor belt) is mainly composed of the following three parts: 1. High-strength and wear-resistant base belt, with greater lateral rigidity and longitudinal flexibility. 2. High-strength thermal vulcanized rubber corrugated ribs. 3. Horizontal partitions to prevent objects from sliding down. The ribs and the bottom of the partition and the base belt are thermally vulcanized into one body. The height of the ribs and partitions can reach 40-630mm. A canvas is added to the ribs to enhance the tear resistance of the ribs.
Standards and main indicators
Ordinary steel cord conveyor belt
Flame-retardant steel cord conveyor belt
General flame-retardant steel cord conveyor belt
Heat-resistant steel cord conveyor belt
Wear-resistant steel cord conveyor belt
Shaoboer wear amount ≤90mm 3
Acid, alkali and oil resistant steel cord conveyor belt
