Inclined Conveyor Belt
Created with Pixso. NN100 Corrugated Sidewall Inclined Conveyor Belt with 1500mm Bandwidth and 2-10 Layers for Large Inclination Transport

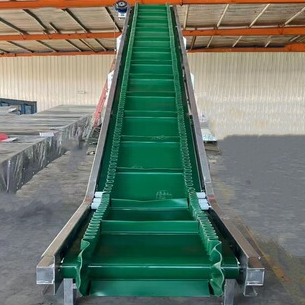

NN100 Corrugated Sidewall Inclined Conveyor Belt with 1500mm Bandwidth and 2-10 Layers for Large Inclination Transport
  • name

NN100 Corrugated Sidewall Inclined Conveyor Belt with 1500mm Bandwidth and 2-10 Layers for Large Inclination Transport

Brand Name: UCER
Model Number: EP100/EP150/EP200/EP250/EP300
MOQ: 100 meters
Price: Negotiable
Delivery Time: 10-30 days
Payment Terms: L/C,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Enterprise credit rating AAA
Color:
Green
Cloth Layer:
2-10 Layers
Bandwidth:
1500mm
Rib Height (mm):
S80/S100/S120/S160
Model:
NN100
Cotton Canvas Core:
CC-56
Working Surface:
1.5-8mm
Non-working Surface:
0mm-4.5mm
Packaging Details:
Iron packing, iron frame or other
Supply Ability:
10000 per month
Product Description
Corrugated Sidewall Inclined Conveyor Belts NN100 NN150 NN200
Apron Conveyor Belt NN100/NN150/NN200 Inclined Conveyor Belts
Basic Concepts

The large inclination corrugated sidewall belt consists of three main components: base belt, sidewall, and diaphragm. The ribs prevent material slippage and falling, while the corrugated design facilitates smooth movement around drums. Transversal partitions support the material during transport. For large inclination applications, T-type TC configurations are employed. Ribs and diaphragms are connected to the base belt through secondary vulcanization, ensuring high connection strength.

Varieties and Specifications

Corrugated sidewall conveyor belts are available in various types based on covering rubber performance:

  • Ordinary type
  • Heat-resistant type
  • Flame-retardant type
  • Cold-resistant type
  • Acid-base resistant type
  • Oil-resistant type

Technical specifications include:

  • Core material: CC-56, NN100, NN150, NN200, NN300, NN400
  • Bandwidth: 100mm-2400mm
  • Cloth layer: 2-10 layers
  • Cover rubber: Working surface: 1.5-8mm, Non-working surface: 0mm-4.5mm
Variety Standards and Main Indicators
Ordinary steel cord conveyor belt GB/T9770-2001
Flame-retardant steel cord conveyor belt MT668-1997
General flame-retardant steel cord conveyor belt MT668-1997
Heat-resistant steel cord conveyor belt HG2297-92
Wear-resistant steel cord conveyor belt Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt HG4-846
Cold-resistant steel cord conveyor belt Brittleness temperature -40℃
NN100 Corrugated Sidewall Inclined Conveyor Belt with 1500mm Bandwidth and 2-10 Layers for Large Inclination Transport 0 NN100 Corrugated Sidewall Inclined Conveyor Belt with 1500mm Bandwidth and 2-10 Layers for Large Inclination Transport 1
Tags:

Inclined Conveyor Belts Bandwidth 100mm

Inclined Conveyor Belts 2400mm

10 Layers Green Conveyor Belts
