Green 2 Ply Inclined Conveyor Belt with 1200mm Bandwidth for High Angle Transport

Name: Green 2 Ply Inclined Conveyor Belt with 1200mm Bandwidth for High Angle Transport
Brand: CDINDUSTRY(INTERNATIONAL).INC
SKU: EP100/EP150/EP200/EP250
Price: 54.20 USD
Availability: InStock

Brand Name:	UCER
Model Number:	EP100/EP150/EP200/EP250
MOQ:	100 meters
Price:	Negotiable
Delivery Time:	10-30 days
Payment Terms:	L/C,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Enterprise credit rating AAA

Color:

Green

Fabric Layer:

2-20 Layers 　

Bandwidth:

1200mm

Increase The Conveying Angle:

30~90 Degrees

Model:

ST630

Standard:

GB7984-2001

The Thickness Of The Upper Cover:

3-6mm

The Thickness Of The Lower Cover Rubber:

1.5-4.5mm

Packaging Details:

Iron packing, iron frame or other

Supply Ability:

10000 per month

Product Description

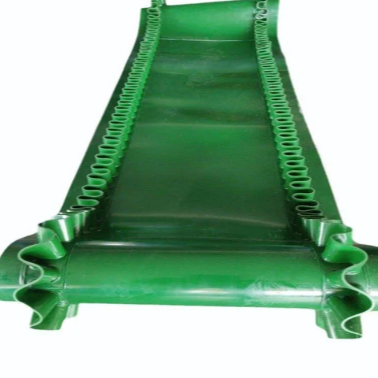

Green Inclined 2 Ply Conveyor Belt 1200mm Bandwidth

Partition Conveyor Belt 30~90 Degrees 2-20 Layers Inclined Conveyor Belts

Baseband Requirements

The base belt of the corrugated sidewall conveyor belt must possess adequate tensile strength and wear resistance. For the empty-edge type sidewall conveyor belt in particular, the belt must exhibit longitudinal flexibility to satisfy angular requirements, while maintaining a certain level of transverse rigidity.

Specifications

Core material: ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), steel wire rope (ST), etc.
Bandwidth: 100mm-2000mm
Fabric layer: 2-20 layers
Cover rubber: working surface: 1.5-15mm non-working surface: 0mm-6mm

Variety

According to the performance of the covering rubber, it can be divided into ordinary type, heat-resistant type, cold-resistant type, acid and alkali-resistant type, oil-resistant type, etc.

Implementation Standards

Comply with GB7984-2001 standard

Variety	Standards and Main Indicators
Ordinary steel cord conveyor belt	GB/T9770-2001
Flame-retardant steel cord conveyor belt	MT668-1997
General flame-retardant steel cord conveyor belt	MT668-1997
Heat-resistant steel cord conveyor belt	HG2297-92
Wear-resistant steel cord conveyor belt	Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt	HG4-846
Cold-resistant steel cord conveyor belt	Brittleness temperature -40℃
