| Brand Name: | UCER |
| Model Number: | ZYL1500 ZYL2000 |
| MOQ: | 50 Meters |
| Price: | $10.00 - $60.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

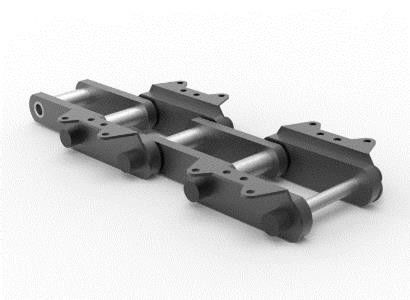

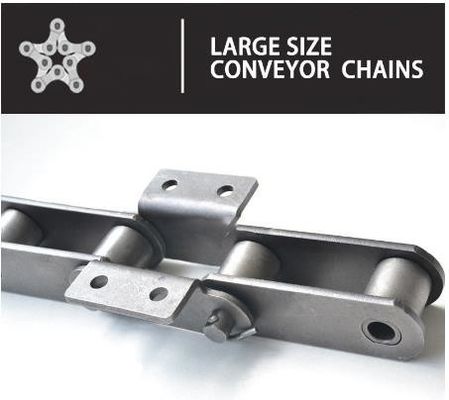

40Cr Alloy Steel Die Forging Hoist Chain For Bucket Elevator
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:ZYL1500 ZYL2000
Structure:Welded Chain
Function:Conveyor Chain
Material:ALLOY
Standard or Nonstandard:Standard
chain name:die forging hoist chain
application:Mine,Coal,Mine,Steel,Grain,Food, Machinery, cement industry
conveyor chain type:conveyor chain with attchment
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Hoist chain color:black & gray
surface treatment:shot peening
Hoist chain material:40Cr
Delivery in time:on time
size&capacity:pls reference to the form
| Chain NO. UCER | Pitch P | Inner link inner width b1 | Bush diameter d2 | Pin diameter d1 | Plate height h | Outer plate thickness T1 | Inner plate thickness T | Installation dimension L1 | Hole diameter d3 |
| mm | |||||||||
| ZYL1500 | 180 | 100 | 71 | 44.5 | 71 | 23 | 22 | 160*315 | 18 |
| ZYL2000 | 180 | 115 | 81 | 53.5 | 73 | 27 | 28 | 160*330 | 18 |
Packing Delivery Shipping
Packaging Details
Packing: a hoist chain + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
