| Brand Name: | UCER |
| Model Number: | ST JJT series |
| MOQ: | 50 Meters |
| Price: | $10.00 - $70.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

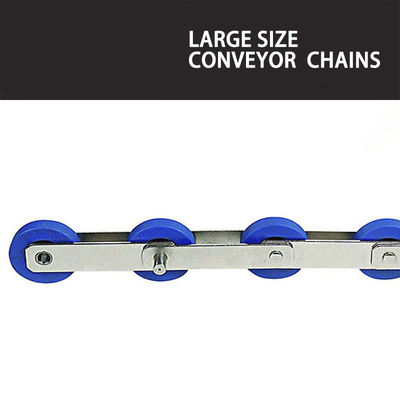

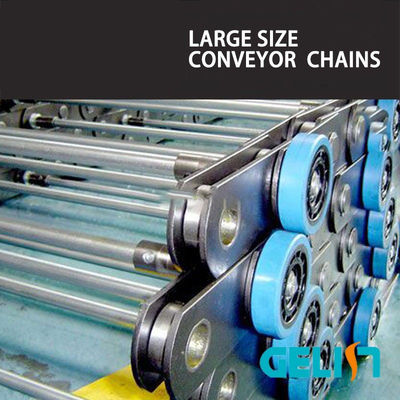

ST133F6 Moving Walkway Parts steel roller escalator step chain
Short information
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:ST133F1, all kinds
Type:Elevator Parts
transmission chain name:escalator step chain
roller material:nylon
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Color:natural blue yellow
surface treatment:shot peening
conveyor chain pitch:133.33mm
packaging:standard
Specification
| Pitch P | Roller diameter d1 | Width between inner plates b1 | Pin diameter d2 | Pin length Lmax | Ineer plate depth h2 | Plate thickness t/T | Distance between steps(three pitches)Le | Ultimate tensile strength Qmin | Average tensile strength Q0 | Weight perstep q |
| mm | kN/bf | kN | kg | |||||||
| 131.33 | 80 | 27 | 24 | 54.5 | 50 | 5 | 394 | 180/40465 | 198 | 3.7 |
| 131.33 | 80 | 27 | 14.63 | 54.5 | 50 | 5 | 394 | 180/40465 | 198 | 2.48 |
| 131.33 | 80 | 27 | 14.63 | 56.5 | 35 | 5 | 394 | 123/27651 | 150 | 2.31 |
| 133.33 | 70 | 27 | 14.63 | 55 | 40 | 5 | 400 | 180/40465 | 198 | 2.45 |
| 133.33 | 70 | 27 | 14.63 | 56.5 | 35 | 5 | 400 | 127.4/28640 | 140.1 | 2.38 |
| 133.33 | 80 | 27 | 24 | 54.5 | 50 | 5 | 400 | 180/40465 | 198 | 3.53 |
| 133.33 | 75 | 25.4 | 14.63 | 54.2 | 35 | 5 | 400 | 123/27651 | 135.3 | 2.16 |
| 133.33 | 76 | 27 | 14.63 | 55 | 40 | 5 | 400 | 180/40465 | 198 | 2.5 |
| 133.33 | 39.37 | 33.7 | 22 | 70 | 60 | 7.0/6.0 | 400 | 350/78683 | 385 | 4.776 |
| 133.33 | 39.37 | 33.7 | 16 | 65 | 50 | 5 | 400 | 170/38217 | 187 | 3.36 |
| 131.33 | 76.2 | 23.6 | 12.7 | 52 | 35 | 5 | 394 | 90/20232 | 99 | 2.05 |
| 131.33 | 76.2 | 23.6 | 12.7 | 52 | 35 | 5 | 394 | 90/20232 | 99 | 2.05 |
| 131.33 | 76.2 | 23.6 | 15 | 52 | 35 | 5 | 394 | 123/27651 | 135.3 | 2.2 |
| 131.33 | 76.2 | 23.6 | 15 | 52 | 35 | 5 | 394 | 123/27651 | 135.3 | 2.2 |
| 135.47 | 76.2 | 23.6 | 12.7/15 | 54.2 | 35 | 5 | 406.4 | 90/20232 | 99 | 2.05 |
Packing Delivery Shipping
Packaging Details:Packing: a sugar mill chain + a poly bag + individual box + wooden case
Port:shanghai ,ningbo
Delivery Details:
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
