More net profit by saving cost!
CDInudstry has developed services with more than 100 customers across the world, saved the cost most up to 20% each year.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | UCER |
| Certification: | ISO9001 |
| Model Number: | NE series |
| Minimum Order Quantity: | 50 Meters |
| Price: | $12.00 - $50.00/ Meter |
| Packaging Details: | wooden box, gunny bag, wooden tray+steel wire, or according to your requirements |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |
| Supply Ability: | 10000 Meters per Month |
| Features: | Anti Wear, Rust Proof | Product Name: | NE Pitch 200 Bucket Elevator Coal Mining Conveyor Chain |
|---|---|---|---|
| Structure: | Leaf Chain | Material: | ALLOY |
| Function: | Conveyor Chain | Color: | Black & Gray |
| Standard Or Nonstandard: | Standard | Heat Treatment:: | All The Chain Parts Undergo Heat Treatment |
| Pitch: | 200 Mm | Roller Diameter: | 50 Mm |
| Pin Diameter: | 30 Mm | Packing: | Wooden Box, Gunny Bag,etc. |
| High Light: | Bucket Elevator Conveyor Chain 200mm,conveyor chain pitch 200mm,Coal Mining conveyor chain types |
||

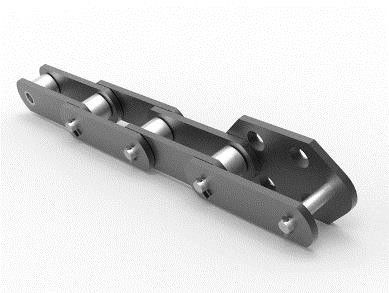

NE Pitch 200 Bucket Elevator Coal Mining Conveyor Chain
Information
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:NE series
Structure:Leaf Chain
Function:Conveyor Chain
Material:ALLOY
Standard or Nonstandard:Standard
NE chain name:NE bucket elevator coal mining conveyor chain
chain Type:with large attchment
OEM service:accept
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
pitch:200 mm
pin diameter:30 mm
roller diameter:50 mm
Business Type:China manufacturer
size&capacity:pls reference to the form
| Chain NO. | Pitch P | Inner link inner width b1 | Roller diameter d2 | Pin diameter d1 | Plate height h | Plate thickness T | Installation dimension L1*L2 | Hole diameter d3 | Attachment H |
| mm | |||||||||
| NE15 | 101.6 | 27 | 26.5 | 11.5 | 35 | 6 | 40*90 | 12 | K |
| NE30 | 152.4 | 36.5 | 36 | 15.5 | 50 | 8 | 60*120 | 14 | K |
| NE50 | 152.4 | 36.5 | 36 | 15.5 | 50 | 8 | 75*70 | 14 | 110 |
| NE100 | 200 | 51.8 | 44.5 | 19.1 | 60 | 810 | 100*80 | 18 | 125 |
| NE150 | 200 | 57.6 | 480.5 | 22.2 | 75 | 10 | 100*80 | 18 | 125 |
| NE200 | 250 | 67.4 | 63.5 | 31.75 | 90 | 12 | 140*100 | 18 | 150 |
| NE300 | 250 | 75 | 70 | 35 | 100 | 16 | 140*100 | 18 | 150 |
| NE400 | 300 | 80 | 75 | 38.5 | 100 | 16 | 170*120 | 22 | 180 |
| NE500 | 300 | 82.5 | 75 | 38.5 | 115 | 16 | 170*120 | 22 | 180 |
Packing Delivery Shipping
Packaging Details
Packing: wooden box, gunny bag, wooden tray+steel wire, or according to your requirements
Port: shanghai ,ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
