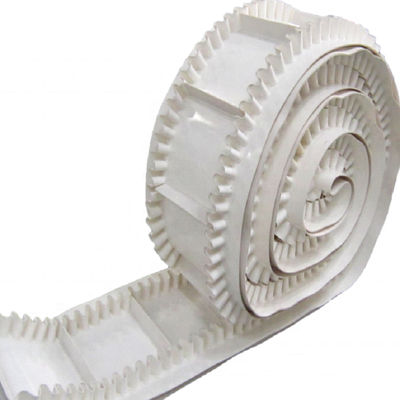

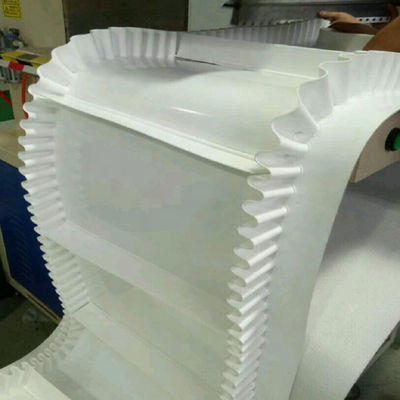

EP ST630 ST800 ST1000 White Skirt Conveyor Belt

EP ST630 ST800 ST1000 White Skirt Conveyor Belt

1. Classification of skirt conveyor belts

Skirt conveyor belts are divided into two types: conveyor belts with skirts and no clapboards and conveyor belts with skirts and clapboards. Various bulk materials can be continuously conveyed at an arbitrary inclination angle of 0-90 degrees, with a large conveying inclination angle, a wide range of use, and a small footprint. The features of no transfer point, reduced civil construction investment, low maintenance cost, and large conveying capacity solve the conveying angle that cannot be achieved by ordinary conveyor belts or patterned conveyor belts. The corrugated sidewall conveyor belt can be designed as a complete conveyor system according to the requirements, avoiding the lifting system of intermittent conveying and complex conveying.

The corrugated sidewall conveyor belt can transport all kinds of bulk materials in horizontal, inclined, vertical and variable-angle directions, from coal, ore, sand to fertilizer and grain.

The particle size of the material is not limited, from a small particle size to a large particle size of 400mm, and the conveying capacity can be from 1 cubic meter/hour to 6000 cubic meters/hour.

2. Features

With the popularity of conveyor belts in industrial production, multiple varieties, high performance, light weight, multi-function, and long life are several aspects that manufacturers pay attention to. In industrial production, the correct use of conveyor belts is particularly important. When using conveyor belts, you should pay attention to the following:

1) Avoid the rollers being covered by materials, causing rotation failure, and prevent leakage of materials from being stuck between the roller and the tape. Pay attention Lubrication of the movable part of the conveyor belt, but the conveyor belt must not be oily;

2) Prevent the conveyor belt from starting under load;

3) The conveyor belt should be deviated, and measures should be taken to correct it in time;

4) When the conveyor belt is found to be partially damaged, use artificial cotton to repair it in time. In order to avoid expansion;

5) Avoid the conveyor belt from being blocked by the frame, pillar or block material, and prevent it from breakin

g and tearing

<
