Fertilizer Sand EP250 EP300 Inclined Conveyor Belts

Skirt conveyor belts are divided into two types: conveyor belts with skirts and no clapboards and conveyor belts with skirts and clapboards. It can continuously convey all kinds of bulk materials at an arbitrary inclination angle of 0-90 degrees, with a large conveying inclination angle, a wide range of use, and a small area. The features of no transfer point, reduced civil construction investment, low maintenance cost, and large conveying capacity solve the conveying angle that cannot be achieved by ordinary conveyor belts or patterned conveyor belts. The corrugated sidewall conveyor belt can be designed as a complete conveyor system according to the requirements, avoiding the lifting system of intermittent conveying and complex conveying.

1. Classification of skirt conveyor belts

Skirt conveyor belts are divided into two types: conveyor belts with skirts and no clapboards and conveyor belts with skirts and clapboards. Various bulk materials can be continuously conveyed at an arbitrary inclination angle of 0-90 degrees, with a large conveying inclination angle, a wide range of use, and a small footprint. The features of no transfer point, reduced civil construction investment, low maintenance cost, and large conveying capacity solve the conveying angle that cannot be achieved by ordinary conveyor belts or patterned conveyor belts. The corrugated sidewall conveyor belt can be designed as a complete conveyor system according to the requirements, avoiding the lifting system of intermittent conveying and complex conveying.

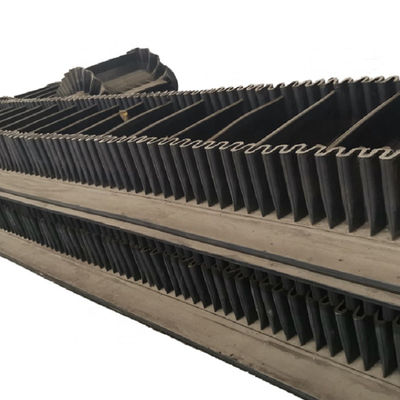

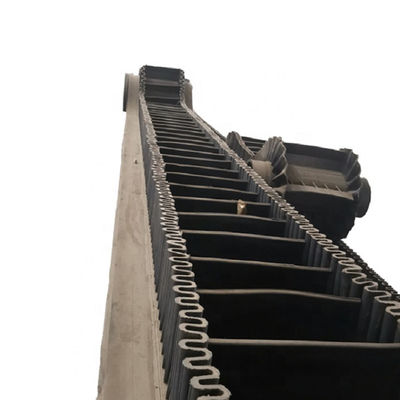

The corrugated sidewall conveyor belt can transport all kinds of bulk materials in horizontal, inclined, vertical and variable-angle directions, from coal, ore, sand to fertilizer and grain.
The particle size of the material is not limited, from a small particle size to a large particle size of 400mm, and the conveying capacity can be from 1 cubic meter/hour to 6000 cubic meters/hour.

2. Baseband

The base tape is composed of four parts: upper cover rubber, lower cover rubber, belt core and lateral rigid layer. The thickness of the upper cover rubber is generally 3-6mm; the thickness of the lower cover rubber is generally 1.5-4.5mm. The core material bears the tensile force, and the material can be cotton canvas (CC), nylon canvas (NN), polyester canvas (EP) or steel wire rope (ST). In order to increase the lateral rigidity of the base belt, a special reinforcement layer is added to the core, which is called a lateral rigid layer. The width specification of the base tape is the same as that of the ordinary tape, and it meets the standard requirements of GB/T7984-2001.

<
