| Place of Origin: | China |
|---|---|
| Brand Name: | UCER |
| Certification: | Enterprise credit rating AAA |
| Model Number: | EP100/EP150/EP200/EP250/EP300 |
| Minimum Order Quantity: | 100 meters |
| Price: | Negotiable |
| Packaging Details: | Iron packing, iron frame or other |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10000 per month |
| Color: | Black | Bandwidth: | 300mm |
|---|---|---|---|
| Core Material: | NN100 | Cloth Layer: | 2-10 Layers |
| Model: | NN100/NN150/NN200/EP100/EP150/EP200 | Working Surface: | 1.5-8mm |
| Non-working Surface: | 0mm-4.5mm | Rib Height (mm): | S80 |
| High Light: | Inclined Conveyor Belts For Granular,small lumps Inclined Conveyor Belts,NN100 wire rope conveyor belt |
||

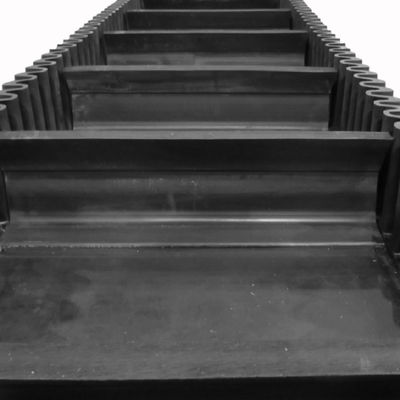

Steel Wire Rope Inclined Conveyor Belts For Granular

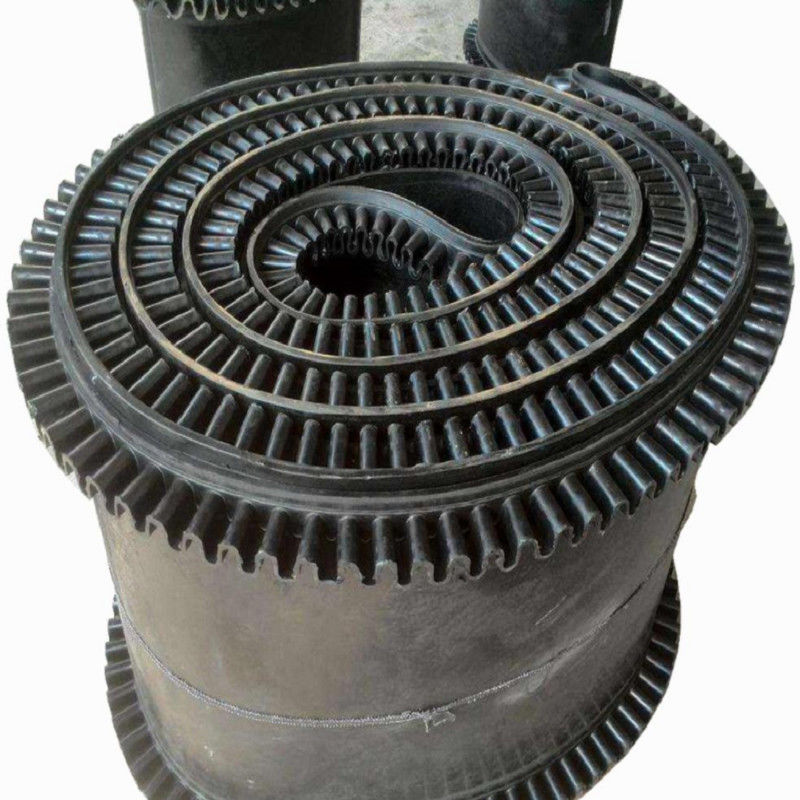

The sidewall conveyor belt is a large inclination corrugated sidewall conveyor belt. The sidewall conveyor belt was first developed by a British company and started to be popularized.
1. The core material of the sidewall conveyor belt:
Cotton canvas core CC-56
Nylon fabric core NN100, NN150, NN200, NN300, NN400, NN500
Polyester fabric core EP100, EP150, EP200, EP300, EP400, EP500
Wire rope core ST1000-ST5400
Rib height (mm): S80, S100, S120, S160, S200, S240, S300, S400, S500
Shelf height (mm): TC75, TC90, TC110, TC140, TC180, TC220, TC280, TC380, TC480
General writing method: such as B800*6 (3+3+1.5)*110 meters
S120-120 TC110-252-460
2. Product features (ordinary large inclination wavy rib conveyor belt):
1) Increase the conveying angle (30~90 degrees);
2) Small footprint and low investment;
3) Large conveying capacity and higher lifting height;
4) Smooth transition from horizontal to inclined (or vertical);
5) Suitable for conveying powdery, granular, small lumps, paste and liquid materials that are easy to scatter;
6) Low energy consumption, simple structure, high tape strength and long service life.
<
| Variety | Standards and main indicators |
| Ordinary steel cord conveyor belt | GB/T9770-2001 |
| Flame-retardant steel cord conveyor belt | MT668-1997 |
| General flame-retardant steel cord conveyor belt | MT668-1997 |
| Heat-resistant steel cord conveyor belt | HG2297-92 |
| Wear-resistant steel cord conveyor belt | Shaoboer wear amount ≤90mm 3 |
| Acid, alkali and oil resistant steel cord conveyor belt | HG4-846 HG4-846 |
| Cold-resistant steel cord conveyor belt | Brittleness temperature -40℃ |
