| Place of Origin: | CHINA |
|---|---|
| Brand Name: | UCER |
| Certification: | ISO9001 |
| Model Number: | NSE |
| Minimum Order Quantity: | 50 Meters |
| Price: | $10.00 - $70.00/ Meter |
| Packaging Details: | a NSE conveyor chain + a poly bag + individual box + wooden case |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |
| Supply Ability: | 10000 Meters per Month |
| Product Name: | NE Lifting Chain Central Bucket Elevator Chain | Structure: | Roller Chain |
|---|---|---|---|
| Material: | 40Cr | Function: | Conveyor Chain |
| Color: | Black & Gray | Standard Or Nonstandard: | Standard |
| Heat Treatment:: | All The Chain Parts Undergo Heat Treatment | Surface Treatment: | Shot Peening |
| High Light: | Cement Bucket Elevator Conveyor Chain,NSE Bucket Elevator Conveyor Chain,40Cr Conveyor Chain With Attachments |
||

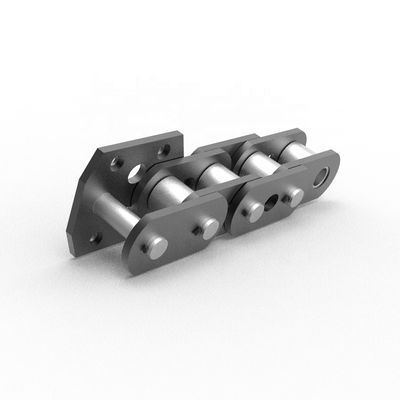

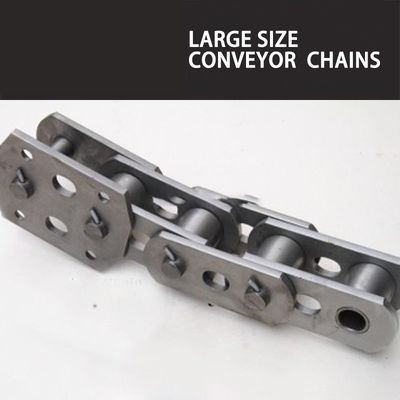

NSE series Large Size cement bucket elevator conveyor chain with attachments
Quick Details
Place of Origin:Zhejiang, China
Brand Name:Gelin
Model Number:NSE
Structure:Roller Chain
Function:Conveyor Chain
Standard or Nonstandard:Standard
NSE chain name:bucket elevator roller chain with attchment
conveyor chain type:conveyor chain with attchments
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
Color:black & gray
conveyor chain pitch:100 125 150mm
manufacturer or not:manufacturer
packaging:standard
size&capacity:pls reference to the form
Material:40Cr
| Chain NO. | Pitch P | Inner link inner width b1 | Roller diameter d2 | Pin diameter d1 | Plate height h | Plate thickness T | Installation dimension L1*L2 | Hole diameter d3 | Attachment H |
| mm | |||||||||
| NSE50 | 76.2 | 36.5 | 36 | 15.5 | 50 | 8 | 75*80 | 14 | 120 |
| NSE200 | 100 | 51.8 | 44.5 | 19.1 | 60 | 10 | 100*105 | 18 | 150 |
| NSE300 | 100 | 57.6 | 48.5 | 22.2 | 75 | 10 | 100*105 | 18 | 150 |
| NSE400 | 125 | 67.4 | 63.5 | 31.75 | 90 | 12 | 125*130 | 18 | 180 |
| NSE500 | 125 | 67.4 | 63.5 | 31.75 | 90 | 12 | 125*130 | 18 | 180 |
| NSE600 | 125 | 75 | 70 | 35 | 100 | 16 | 125*130 | 18 | 180 |
| NSE700 | 150 | 80 | 75 | 38.5 | 115 | 16 | 160*150 | 22 | 210 |
| NSE800 | 152.4 | 82.5 | 80 | 41 | 115 | 16 | 152.4*150 | 22 | 210 |
| NSE1000 | 150 | 88 | 82 | 44 | 125 | 16 | 150*160 | 22 | 230 |
Packing Delivery Shipping
Packaging Details
Packing: a NSE conveyor chain + a poly bag + individual box + wooden case
Port: shanghai ,ningbo
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
