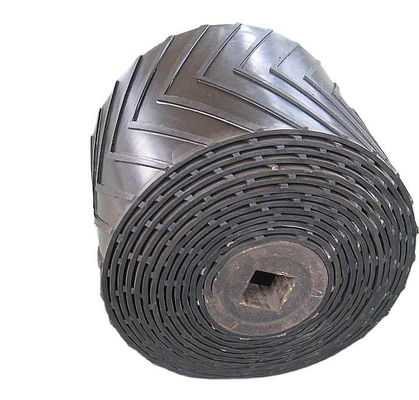

Black EP NN CP Pattern Rubber Conveyor Belt with 15mm Height and Grainy Pattern

Name: Black EP NN CP Pattern Rubber Conveyor Belt with 15mm Height and Grainy Pattern
Brand: CDINDUSTRY(INTERNATIONAL).INC
SKU: EP100/EP150
Price: 54.20 USD
Availability: InStock

Brand Name:	UCER
Model Number:	EP100/EP150
MOQ:	100 meters
Price:	Negotiable
Delivery Time:	10-30 days
Payment Terms:	L/C,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Enterprise credit rating AAA

Color:

Black

Bandwidth:

500mm

Pattern Height:

20mm

National Standard:

GB/T7984-2001

Core Material:

EP/NN/CP

Pattern Type:

Grainy Pattern

Inclination Angle:

0-40°

Composition:

Belt And The Pattern

Packaging Details:

Iron packing, iron frame or other

Supply Ability:

10000 per month

Product Description

Black EP NN CP Pattern Rubber Conveyor Belts 15mm Height

The pattern conveyor belt is an inclined conveyor belt composed of a cover rubber with a pattern-like working surface and a flat cover rubber with a non-working surface and a belt core.

Pattern Types

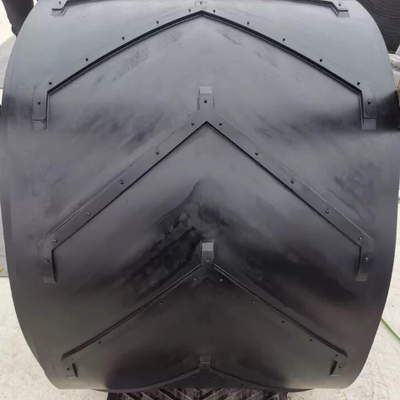

Herringbone Pattern

The characteristic belt surface has a "herringbone" pattern higher than the belt body. The pattern can be open or closed. Each pattern can be divided into three types: high, medium, and low.

Suitable for conveying powdery, granular and small materials with an inclination angle of ≤40 degrees, and also for conveying bagged materials.

Striped Pattern

The characteristic belt surface has striped patterns that are higher than the belt body. The patterns are divided into three types: high, medium and low. Each pattern can be divided into sparse and dense forms according to the arrangement spacing.

Suitable for horizontal transportation of packages with an inclination angle of ≤30 degrees. If it is grooved, it can replace the herringbone pattern.

Grainy Pattern

Features: There are grain patterns on the belt surface that are higher than the belt body or recessed into the belt body. The pits can also be made into square holes or prismatic and cloth patterns.

Pattern Conveyor Belt Maintenance

During transportation and storage, keep the belt clean and avoid direct sunlight, rain, snow, and contact with acids, alkalis, oils, organic solvents, and other substances
Keep away from heating devices by at least one meter
Maintain storage temperature between 18-40℃ and relative humidity between 50-80%
Store in roll form without folding and turn once every season
Use compatible belt types and specifications together, with glued joints preferred
Select appropriate belt type, structure, specification, and number of layers based on usage conditions
Maintain running speed generally not greater than 2.5 m/s
Follow design requirements for roller diameter, cloth layer matching, and idler groove angle selection
Feed material in the direction of belt travel using chutes to reduce impact and falling distance
Use buffer rollers and soft baffles in the receiving section to prevent belt surface damage

Product Standards and Specifications

Variety	Standards and Main Indicators
Ordinary steel cord conveyor belt	GB/T9770-2001
Flame-retardant steel cord conveyor belt	MT668-1997
General flame-retardant steel cord conveyor belt	MT668-1997
Heat-resistant steel cord conveyor belt	HG2297-92
Wear-resistant steel cord conveyor belt	Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt	HG4-846
Cold-resistant steel cord conveyor belt	Brittleness temperature -40℃
