Place of Origin: | China |
---|---|
Brand Name: | UCER |
Certification: | Enterprise credit rating AAA |
Model Number: | EP100/EP150/EP200/EP250/EP300 |
Minimum Order Quantity: | 100 meters |
Price: | Negotiable |
Packaging Details: | Iron packing, iron frame or other |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 10000 per month |
Color: | White | Bandwidth: | 1400mm |
---|---|---|---|
Core Material: | NN200 | Increase The Conveying Angle: | 30~90 Degrees |
Model: | NN100/NN150/NN200/EP100/EP150/EP200 | Cloth Layer: | Not Less Than 2.1 N/mm |
The Length Ratio: | Not Less Than 10% | Tensile Strength: | Not Less Than 15Mp |
High Light: | 1400mm Rubber Conveyor Belts,EP100 Rubber Conveyor Belts,Custom Conveyor Rubber Belt |

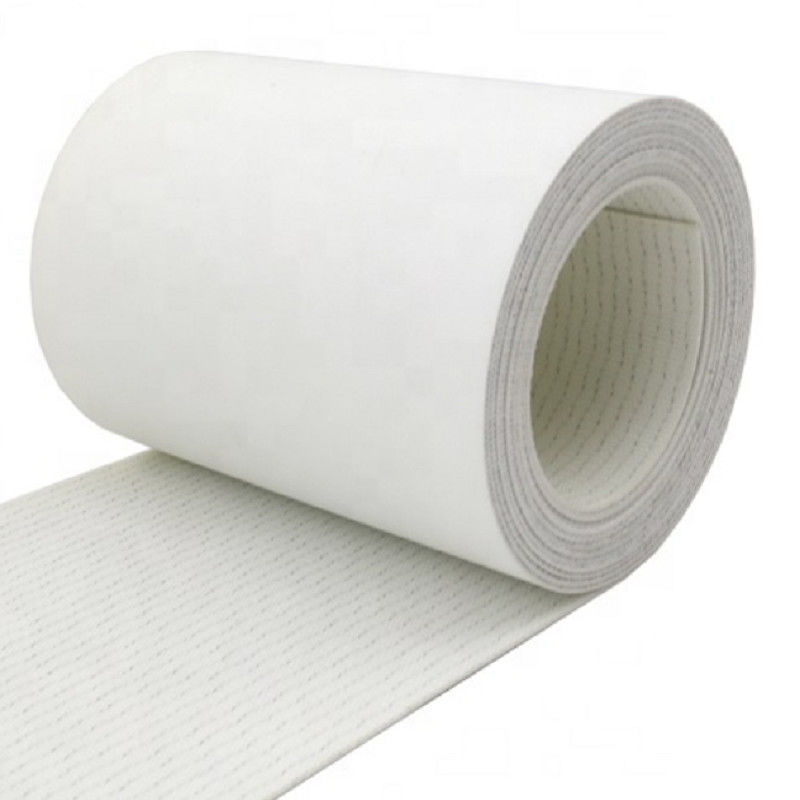

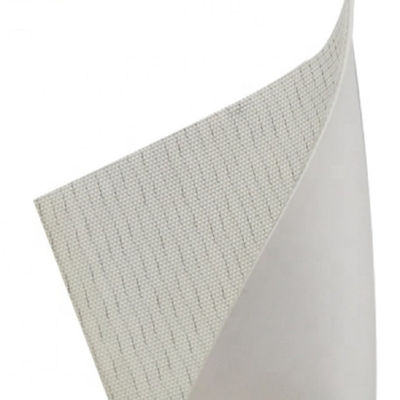

Custom White 1400mm Rubber Conveyor Belts
Conveyor belts, also known as conveyor belts, are rubber, fiber, metal composite products, or plastic and fabric composite products used in belt conveyor belts to carry and transport materials. Conveyor belts are widely used in cement, coking, metallurgy, chemical, steel and other industries where the transportation distance is short and the transportation volume is small.
<
Variety | Standards and main indicators |
Ordinary steel cord conveyor belt | GB/T9770-2001 |
Flame-retardant steel cord conveyor belt | MT668-1997 |
General flame-retardant steel cord conveyor belt | MT668-1997 |
Heat-resistant steel cord conveyor belt | HG2297-92 |
Wear-resistant steel cord conveyor belt | Shaoboer wear amount ≤90mm 3 |
Acid, alkali and oil resistant steel cord conveyor belt | HG4-846 HG4-846 |
Cold-resistant steel cord conveyor belt | Brittleness temperature -40℃ |
1. Product introduction
1) Various types of belts
(1) Ordinary conveyor belts (including high-strength nylon conveyor belts) products comply with the GB7984-2001 standard.
Ordinary conveyor belt:
Covering layer: tensile strength not less than 15Mpa, elongation at break = The degree is not less than 350%, the abrasion amount is less than or equal to 200mm3, the average value of the interlayer adhesion strength of the longitudinal sample is not less than 3.2N/mm between the cloth layers, and the thickness between the covering rubber and the cloth layer is not less than 2.1 N/mm. The length ratio is not less than 10%, and the longitudinal reference force elongation of the full thickness is not more than 1.5% Nylon (NN) and polyester (EP) conveyor belts:
Covering layer: the tensile strength is not less than 15Mpa, the elongation at break is not less than 350%, the wear amount is less than or equal to 200mm3. The longitudinal elongation at break of the full thickness of less than 3.2 N/mm is not less than 10%, and the longitudinal reference force elongation of the full thickness is not more than 4%.
(2) Three-resistant conveyor belt (heat-resistant, acid-resistant, and alkali-resistant) products comply with the HG2297-92 standard.
(3) Flame-retardant conveyor belt The product implements the MT147-95 standard.
2. Product features
(ordinary large inclination wavy rib conveyor belt):
(1) Increase the conveying angle (30~90 degrees);
(2) Small footprint and low investment;
(3) Large conveying volume and higher lifting height;
(4) Smooth transition from horizontal to inclined (or vertical);
(5) Suitable for conveying powdery, granular, small block, paste and liquid materials that are easy to scatter;
(6) Low energy consumption, simple structure, high tape strength and long service life.
3. Variety
According to the different properties of the covering rubber, it can be divided into ordinary type, heat-resistant type, flame-retardant type, cold-resistant type, acid-base resistant type, oil-resistant type, etc.
4. Specifications
(1) Core material: CC-56, NN100, NN150, NN200, NN300, NN400
(2) Bandwidth: 100mm-2200mm
