Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle

Name: Herringbone Pattern Black Conveyor Belt 300-800mm Width for 0-40° Inclination Angle
Brand: CDINDUSTRY(INTERNATIONAL).INC
SKU: EP100/EP150/EP200/EP250/EP300
Price: 54.20 USD
Availability: InStock

Brand Name:	UCER
Model Number:	EP100/EP150/EP200/EP250/EP300
MOQ:	100 meters
Price:	Negotiable
Delivery Time:	10-30 days
Payment Terms:	L/C,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Enterprise credit rating AAA

Color:

Black

Bandwidth:

500mm

Pattern Height:

15mm

National Standard:

GB/T7984-2001

Core Material:

EP/NN/CP

Pattern Type:

Striped Pattern

Inclination Angle:

0-40°

Composition:

Belt And The Pattern

Packaging Details:

Iron packing, iron frame or other

Supply Ability:

10000 per month

Product Description

Herringbone Pattern Black Conveyor Belting 300-800mm Width

Product Overview

Herringbone pattern black conveyor belting designed for efficient material handling with widths ranging from 300mm to 800mm. This specialized belting prevents material slippage on inclined conveyors up to 40 degrees.

Key Features

Core Material: Available in ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), and other materials
Bandwidth: 300mm to 800mm range
Pattern Height: 5mm, 10mm, 15mm, 20mm options available
Custom Patterns: Pattern shapes can be designed according to user requirements
Performance: Suitable for conveying materials with inclination angles of 0-40° to prevent material sliding

Product Standards and Specifications

Variety	Standards and Main Indicators
Ordinary steel cord conveyor belt	GB/T9770-2001
Flame-retardant steel cord conveyor belt	MT668-1997
General flame-retardant steel cord conveyor belt	MT668-1997
Heat-resistant steel cord conveyor belt	HG2297-92
Wear-resistant steel cord conveyor belt	Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt	HG4-846
Cold-resistant steel cord conveyor belt	Brittleness temperature -40℃

Pattern Types

1) Herringbone Pattern

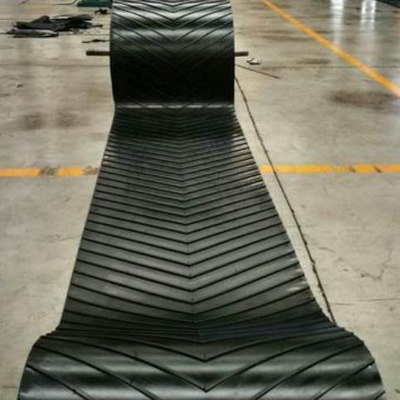

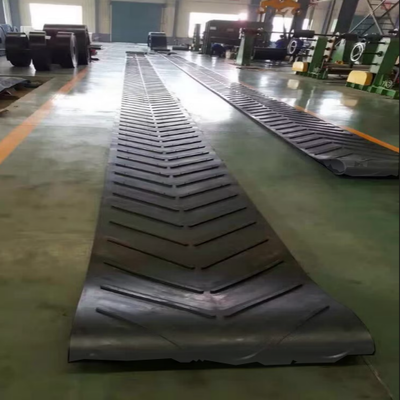

The belt surface features "herringbone" patterns higher than the belt body, available in open or closed configurations. Patterns are classified as high, medium, or low types.

Applications: Suitable for conveying powdery, granular, and small materials with inclination angles ≤40 degrees. Also effective for bagged materials.

2) Striped Pattern

Features striped patterns higher than the belt body, available in high, medium, and low types with sparse or dense arrangement spacing.

Applications: Ideal for horizontal transportation of packages with inclination angles ≤30 degrees. When grooved, can serve as an alternative to herringbone patterns.

3) Grainy Pattern

Includes grain patterns that are either raised above or recessed into the belt surface. Pits can be designed as square holes, prismatic shapes, or cloth patterns.

Construction and Composition

The pattern conveyor belt consists of two main components: the base belt and the pattern surface.

Tags:
