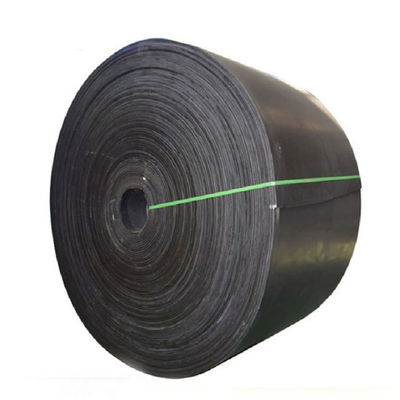

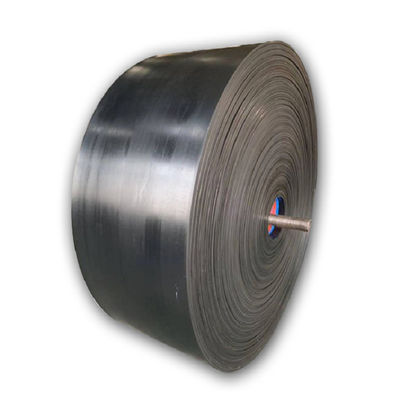

GB/T7984-2001 Standard Anti Sticking Conveyor Rubber Belt with 300mm-3000mm Width for Medium Load Transport

Name: GB/T7984-2001 Standard Anti Sticking Conveyor Rubber Belt with 300mm-3000mm Width for Medium Load Transport
Brand: CDINDUSTRY(INTERNATIONAL).INC
SKU: EP100/EP150
Price: 54.20 USD
Availability: InStock

Brand Name:	UCER
Model Number:	EP100/EP150
MOQ:	100 meters
Price:	Negotiable
Delivery Time:	10-30 days
Payment Terms:	L/C,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Enterprise credit rating AAA

Color:

Black

Bandwidth:

800mm

Cloth Layer:

1-12 Layers

National Standard:

GB/T7984-2001

Model:

NN100

Cotton Canvas Type:

CC-56

Working Surface:

1.5-10mm

Non-working Surface:

0mm-6mm

Packaging Details:

Iron packing, iron frame or other

Supply Ability:

10000 per month

Product Description

GB/T7984 300mm-3000mm Conveyor Rubber Belt Anti Sticking

Ordinary conveyor belts, commonly referred to as cotton canvas conveyor belts, are designed for short-distance transportation of materials under medium load conditions. They feature relatively low tensile strength and limited load-bearing capacity.

Specifications and Models

Ordinary conveyor belts are divided into many specifications and models according to the use environment and requirements:

By transportation capacity: B300, B400, B500, B600, B650, B800, B1000, B1200, B1400, B1600, B1800, B2000 and other commonly used models (B stands for width, in millimeters)
By use environment: Heat-resistant conveyor belt, cold-resistant conveyor belt, acid and alkali resistant conveyor belt, oil-resistant conveyor belt, food conveyor belt and other models

Minimum thickness specifications:

Ordinary and food conveyor belts: Minimum 3.0mm cover rubber thickness, 1.5mm lower cover rubber thickness
Heat-resistant, cold-resistant, acid/alkali resistant, and oil-resistant conveyor belts: Minimum 4.5mm cover rubber thickness, 2.0mm lower cover rubber thickness
Cover rubber thickness can be increased by 1.5mm based on specific use conditions

Technical Standards and Specifications

Variety	Standards and Main Indicators
Ordinary steel cord conveyor belt	GB/T9770-2001
Flame-retardant steel cord conveyor belt	MT668-1997
General flame-retardant steel cord conveyor belt	MT668-1997
Heat-resistant steel cord conveyor belt	HG2297-92
Wear-resistant steel cord conveyor belt	Shaoboer wear amount ≤90mm³
Acid, alkali and oil resistant steel cord conveyor belt	HG4-846
Cold-resistant steel cord conveyor belt	Brittleness temperature -40℃

Performance Characteristics

Ordinary conveyor belts of new materials feature:

Temperature range: Continuous operation from -73℃ to +260℃
Excellent resistance to chemical substances
Good electrical performance: High insulation and breakdown resistance strength
Excellent layer separation: Anti-sticking properties with low friction coefficient and smooth surface
Dimensional stability: Stable under high temperature and high pressure, resistant to deformation

Executive Standard: GB/T7984-2001
Covering Layer Specifications:

Tensile strength: ≥15Mpa
Elongation at break: ≥350%
Abrasion: ≤200mm³
Interlayer adhesion strength: ≥3.2N/mm between cloth layers, ≥2.1N/mm between cover rubber and cloth layers
